Gefen

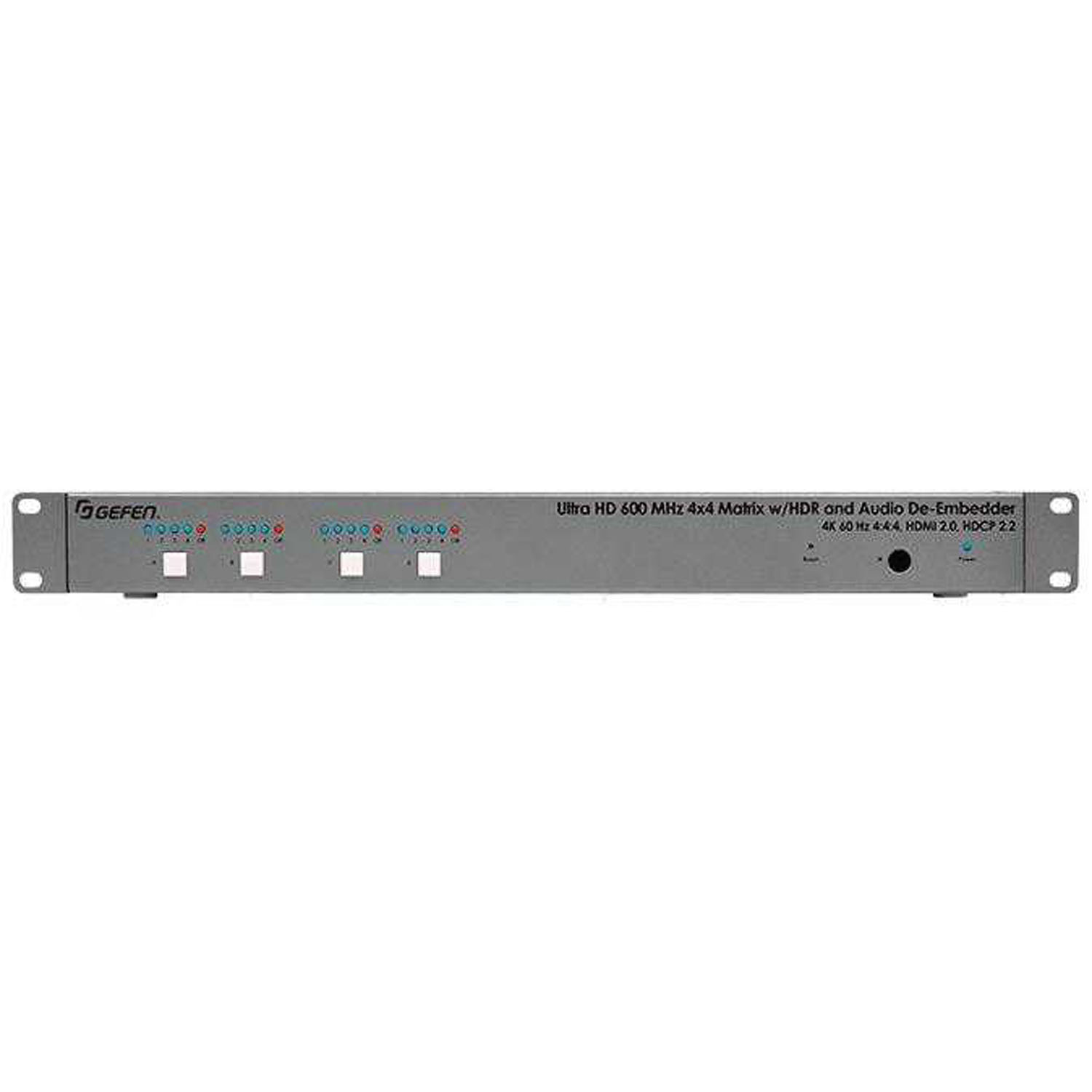

EXT-UHD600A-44 4x4 Matrix Switcher
Elevate your 4K content distribution with the Gefen EXT-UHD600A-44 4x4 Matrix Switcher. This powerful device supports the latest HDMI 2.0 standard, delivering pristine 4K Ultra HD visuals up to 60Hz with HDR and an impressive 18.2 Gbps bandwidth. It offers independent scaling on each output, advanced audio de-embedding, and high-bit-rate audio support for immersive sound. Seamlessly integrate it into professional AV setups with versatile control options including IP, RS-232, and IR, simplifying complex installations and ensuring reliable performance.
$1405.00
Owner Satisfaction
4.4
/ 5
Category Rank
358
/ 920
#358 in HDMI Splitters & Switches
Price vs Category Average
+39%
Above average
Matrix Configuration
44
/ HDMI Inputs, HDMI Outputs
Who it's for
- Full 4K 60Hz 4:4:4 Support
- Advanced Control and Integration
- Effective EDID Management and Audio De-embedding
Who should skip it
- High Professional Price Point
- Complex Setup and Configuration
- Lack of Integrated Long-Distance Extension
Key Specs
Matrix Configuration
4 HDMI Inputs, 4 HDMI Outputs
Maximum Bandwidth
18.2 Gbps (600 MHz TMDS Clock)
HDCP Support
HDCP 2.2 and 1.4
Maximum Resolution
4K Cinema-DCI (4096 x 2160 @ 60 Hz, 4:4:4)
Color Depth
12-bit (at 1080p), HDR 10-bit (at 4K 60 Hz 4:2:0)
Control Interfaces
RS-232, IP (Telnet/UDP), IR Remote
Dimensions
17.25" x 1.75" x 6.3" (440mm x 45mm x 160mm)
Weight
3.25 lbs (1.5 kg)
Features
- Routes four 4K sources to four 4K displays
- Independent 4K/1080p scaling on outputs
- Supports high-bit-rate audio like Dolby Atmos
- Built-in audio de-embedders for external systems
- Extensive control via IP, RS-232, and IR
- Simplifies configuration with Gefen Syner-G software
- HDR support for vibrant visuals
- Field-updatable firmware
What customers say
Users consistently praise the Gefen EXT-UHD600A-44 for its exceptional reliability and high performance in demanding 4K distribution setups. Its core strength lies in flawlessly managing high bandwidth signals, ensuring pristine image quality even with complex requirements like 4K at 60Hz with 4:4:4 chroma. Integrators value the stable EDID management and robust control options, noting minimal handshake issues once installed. The build quality supports continuous professional operation. While its superior feature set justifies the premium price for serious applications, the initial investment remains significant. Setup complexity is noted for non-experts due to advanced features. Overall, this unit is recognized as a dependable workhorse for users prioritizing flawless signal integrity above cost.
