Orei

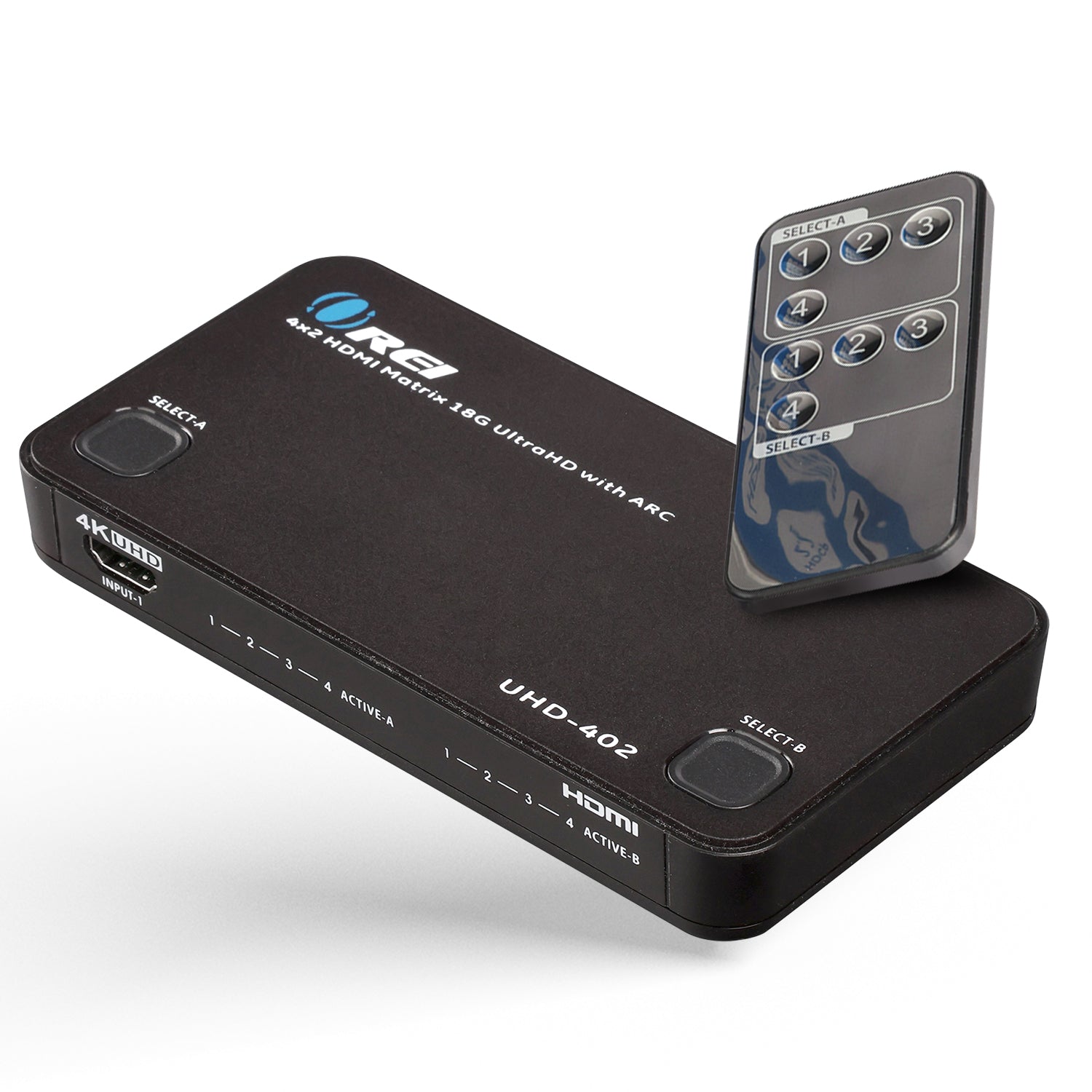

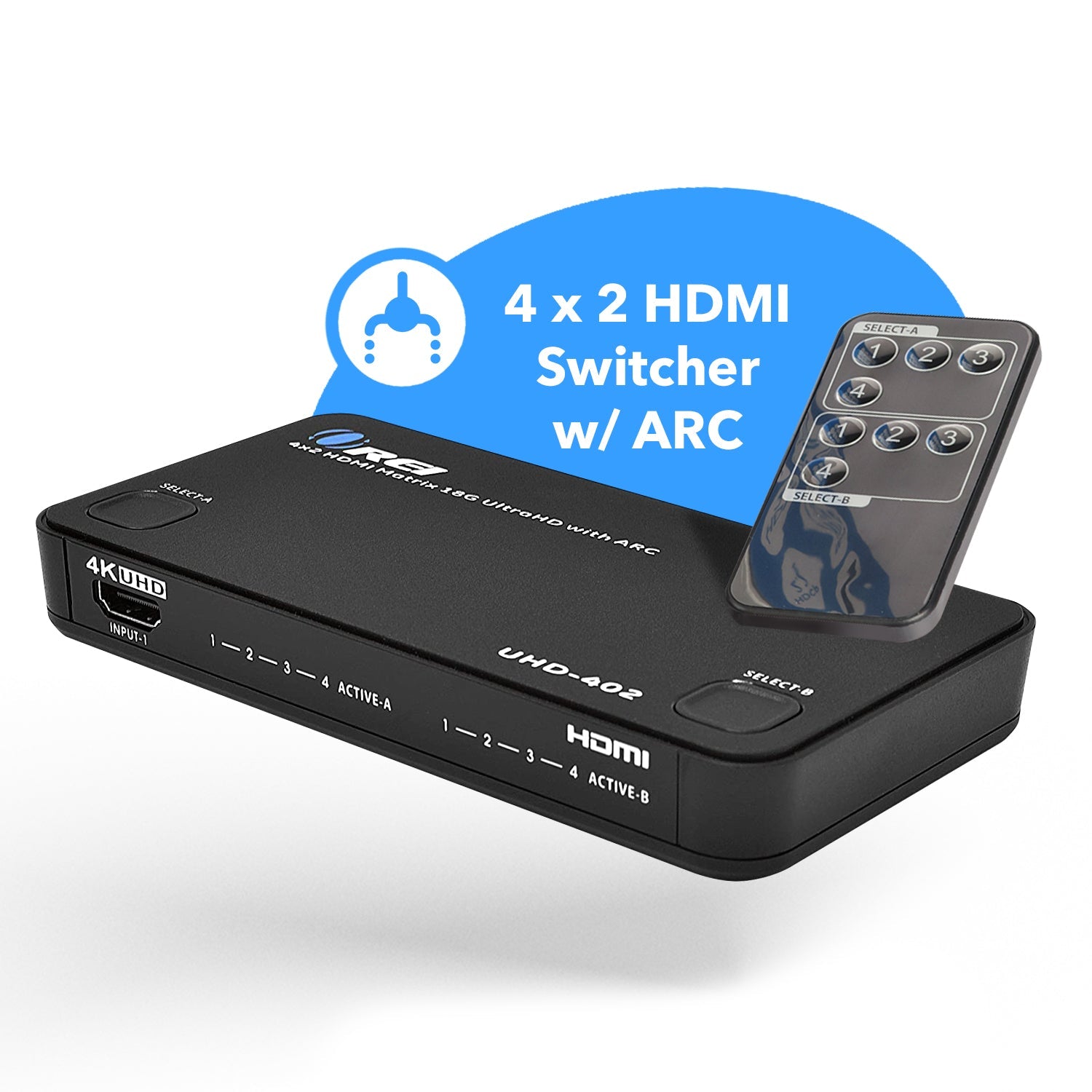

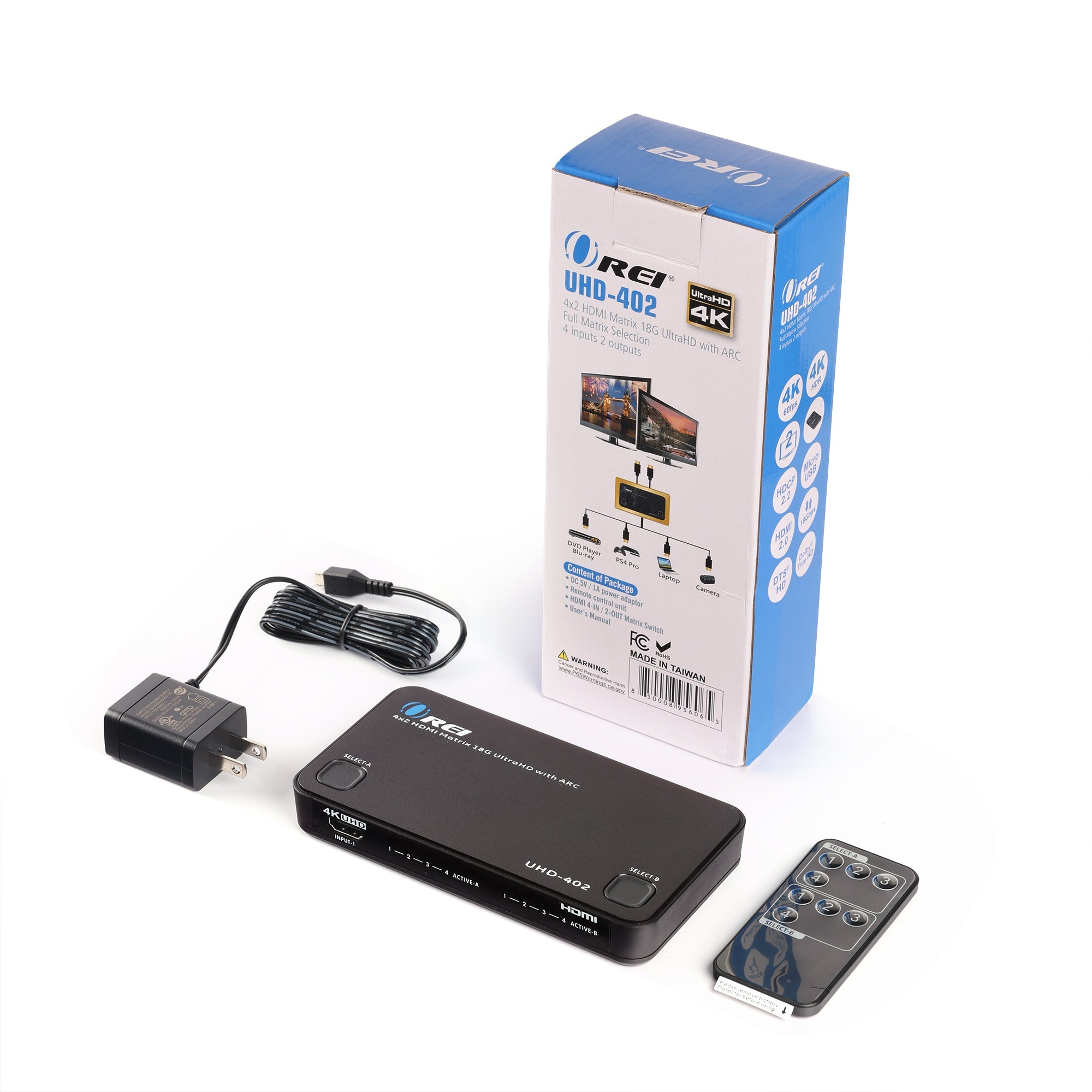

Orei 4K@60hz 4x2 HDMI Matrix with Audio Extract
Elevate your home theater or conference room with the OREI UHDS-402A, a high-performance 4x2 HDMI matrix switcher. Seamlessly connect up to four HDMI sources and distribute them to two displays simultaneously, supporting stunning 4K@60Hz resolution with vibrant 4:4:4 chroma. Experience enhanced visuals with Dolby Vision, HDR10+, and HLG support. This versatile switcher also offers audio extraction to optical and analog outputs, ARC functionality, and intelligent downscaling for mixed-resolution setups, ensuring compatibility and superior audio integration.
$69.99
Owner Satisfaction
4.3
/ 5
Category Rank
522
/ 912
#522 in HDMI Splitters & Switches
Price vs Category Average
-93%
Below average
HDMI Compliance
2.0
/ HDMI
Who it's for
- High-Bandwidth 4K@60Hz Support
- Versatile 4x2 Switching
- Integrated Audio Extraction
Who should skip it
- Limited HDMI 2.1 Support
- Potential EDID and Handshake Issues
- Basic Remote Control Functionality
Key Specs
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
Maximum Resolution Support
4K@60Hz (4:4:4)
Video Bandwidth
18 Gbps
Audio Extraction
Optical (TOSLINK) and Analog L/R
Dimensions
251mm (L) x 105mm (W) x 20mm (H)
Power Input Spec
DC 12V/1A
Number of Inputs
4
Features
- Flexible 4x2 matrix for dual display output
- Crisp 4K video with HDR and full bandwidth
- Integrated audio extraction and ARC
- Independent 4K to 1080p downscaling
- Advanced EDID management for stability
- Easy control via front panel or IR remote
- Compact metal enclosure for flexible placement
- Supports Dolby Vision, HDR10+, and HLG
What customers say
This Orei 4K matrix is highly praised as an excellent value solution for complex home theaters. Customers consistently confirm its reliable switching and distribution of 4K at 60Hz signals, successfully passing through HDR10 and Dolby Vision, which often challenges competitors. A key benefit is the integrated audio extraction via optical and coaxial outputs, offering superb flexibility for connecting older receivers. While performance is strong, some users note minor setup friction with specific HDCP 2.2 handshakes on high-end sources, sometimes requiring power cycling. Switching speed is functional but not instant. Overall, the consensus is that this device delivers professional grade functionality at a budget friendly price, making it a recommended choice for AV enthusiasts.
