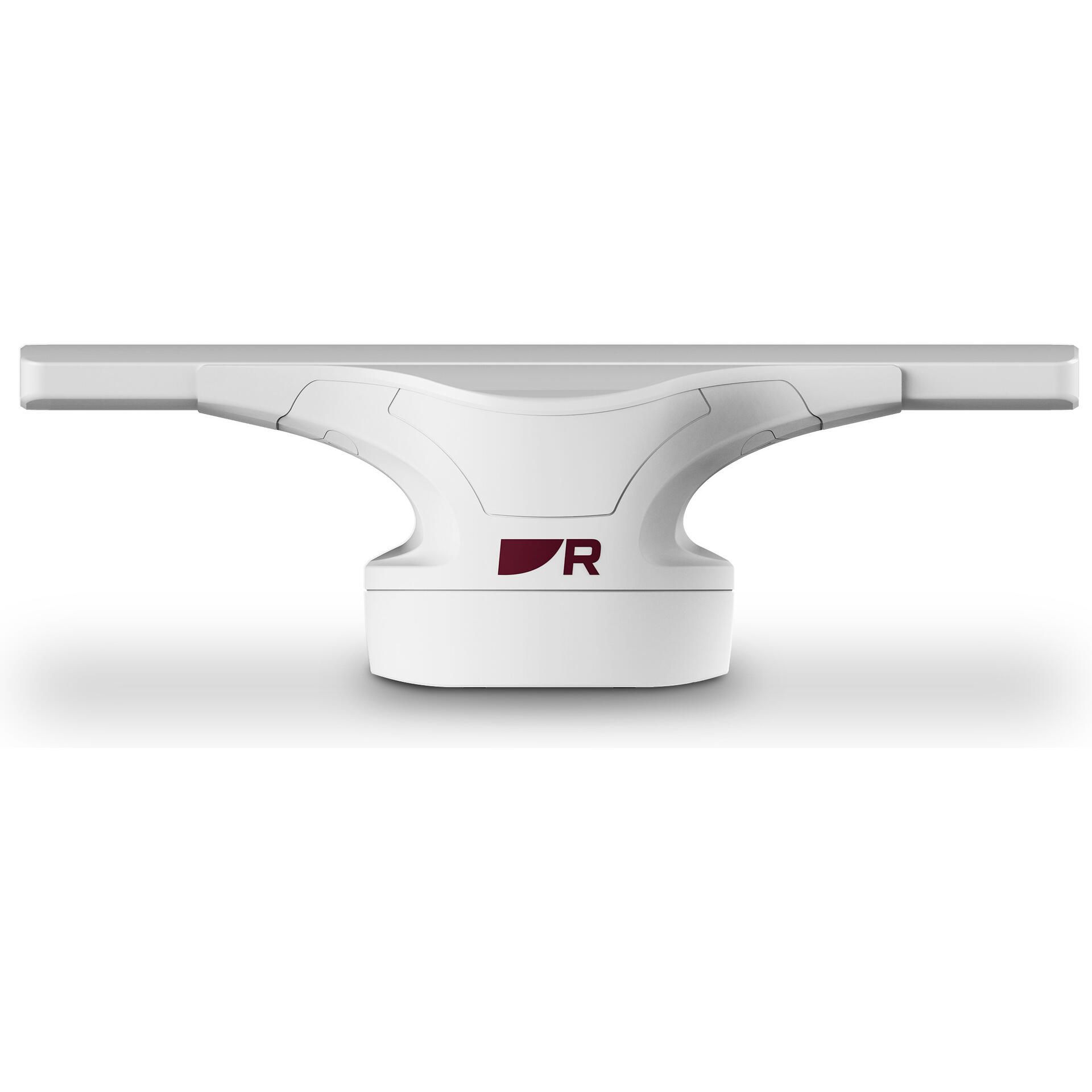

Raymarine Cyclone 55W Radar with 3' Open Array
Best high-performance radar for serious mariners needing professional-grade situational awareness.
Navigate with confidence using the Raymarine Cyclone Pro Radar. This advanced solid-state radar delivers exceptional target separation and long-range clarity, ensuring you see more of your surroundings. Its rugged, low-profile design is built to withstand harsh conditions and offers flexible installation. Experience real-time awareness with fast 60 RPM rotation and Doppler technology for identifying safe and dangerous targets. Enhanced with professional ARPA tracking, the Cyclone Pro provides superior situational awareness for demanding marine applications.
$9349.99
More Cyclone Options
Owner Satisfaction
4.5
/ 5
Category Rank
130
/ 190
#130 in Marine Radar
Price vs Category Average
+247%
Above average
Peak Power Output
110.0
/ watts
Who it's for
- Captains of high-speed vessels prioritizing collision avoidance
- Navigators in busy harbors needing precise target separation
- Offshore sailors facing harsh, high-wind environments
Who should skip it
- Budget-conscious boaters seeking entry-level radar solutions
- Owners of smaller vessels with limited mounting space
- Boaters with restricted battery capacity or limited power systems
Performance breakdown
Target Resolution
Solid-state CHIRP technology delivers unmatched clarity for identifying nearby hazards.
Situational Awareness
Rapid 60 RPM rotation provides near-instant updates in high-traffic waters.
Durability
Rugged pedestal design handles extreme wind speeds with professional-grade reliability.
Tracking Precision
Advanced ARPA tracking keeps a watchful eye on up to fifty targets.
Range Performance
Ninety-six nautical mile reach ensures long-range visibility for open ocean navigation.
Installation Flexibility
Low-profile footprint allows for easier mounting on diverse vessel configurations.
Key Specs
Peak Power Output
110.0 watts
Horizontal Beamwidth
1.32°
Maximum Range
96 NM
Antenna Length
3.0 feet
Mount Type
Open Array
Target Tracking Capability
ARPA
Ethernet Connectivity
Yes
Operating Voltage
12V or 24V DC
Features
- Superior target separation and long-range clarity
- Withstands extreme wind conditions up to 100 knots
- Low-profile pedestal for flexible installation
- Real-time awareness with 60 RPM rotation
- Doppler tracking for safe/dangerous target identification
- Professional ARPA target tracking for up to 50 targets
- Meets commercial-grade IEC 62388 standard
- Solid-state CHIRP pulse compression technology
What customers say
Customers overwhelmingly praise the Raymarine Cyclone 55W Radar for its superior performance and reliability. The core strength lies in its exceptional target separation and clarity, which significantly enhances situational awareness even in difficult conditions. Users value the high-speed performance, especially in Cyclone mode, which makes navigation safer and more efficient. Seamless integration with the Axiom display ecosystem contributes to a powerful and intuitive experience. While the initial cost is high, mariners agree that the advanced features, including excellent bird detection, fully justify the investment for those demanding uncompromising functionality. Satisfaction remains very high across the user base.
Know before you buy
The 60 RPM rotation provides real-time situational awareness by updating the radar image significantly faster than standard antennas. This is particularly useful for tracking fast-moving targets or navigating in high-traffic areas where split-second decisions are necessary.
Doppler technology automatically color-codes targets based on their movement relative to your vessel. It highlights incoming targets in red and outgoing targets in green, allowing you to instantly identify potential collision risks without manual calculation.
Yes, the Cyclone features a low-profile pedestal design specifically engineered for flexible installation. Its compact footprint makes it easier to mount on vessels where vertical space is restricted, without sacrificing performance.
Absolutely. The radar is built to withstand extreme wind conditions up to 100 knots and carries an IPX6 rating for water ingress protection. It is designed to maintain operational integrity in harsh marine environments.
Unlike traditional magnetron radars, solid-state CHIRP technology provides superior target separation and long-range clarity. It also allows for near-instant startup times and improved energy efficiency, while reducing the need for frequent maintenance.
The professional-grade ARPA (Automatic Radar Plotting Aid) system can track up to 50 targets at once. This provides comprehensive monitoring of surrounding vessels, which is essential for safe navigation in busy shipping lanes.
