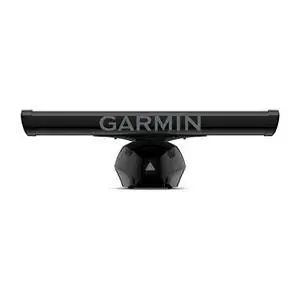

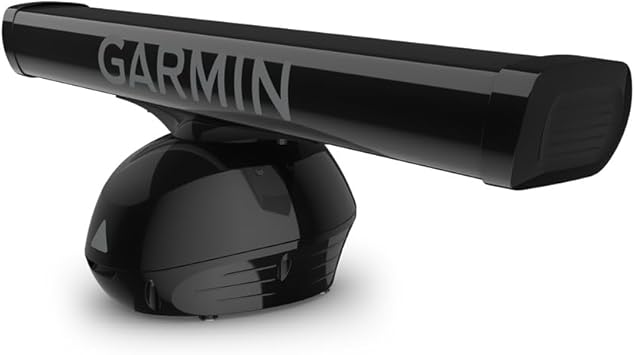

Garmin Fantom 54 Radar
Best high-performance radar for serious offshore navigators seeking maximum target clarity.
Navigate with confidence using the Garmin Fantom 54, a 50-watt solid-state radar featuring a 4' open array antenna. It offers an impressive range of up to 72 nautical miles, providing clear visibility in challenging weather conditions like fog and rain. Optimize performance with dual rotation speeds, choosing between 24 RPM for power efficiency or 48 RPM for faster screen updates. The 1.8-degree horizontal beamwidth delivers high-resolution imagery, enhancing target detection at greater distances. MotionScope technology further aids navigation by highlighting moving targets in distinct colors.
$6199.99
Owner Satisfaction
4.7
/ 5
Category Rank
8
/ 176
#8 in Marine Radar
Price vs Category Average
+130%
Above average
Power Output
50
/ W
Who it's for
- Captains prioritizing safety and collision avoidance in busy waterways
- Offshore navigators needing clear visibility in challenging weather conditions
- Boat owners seeking long-term reliability and reduced maintenance intervals
Who should skip it
- Budget-conscious boaters looking for entry-level radar solutions
- Owners of smaller vessels with limited mounting space
- Professional mariners requiring extreme range for deep-sea operations
Performance breakdown
Target Detection
MotionScope technology makes identifying moving hazards intuitive and immediate.
Range Capability
Seventy-two nautical miles provides exceptional situational awareness for long-range navigation.
Image Clarity
The narrow 1.8-degree beamwidth produces sharp, high-resolution target separation.
Operational Versatility
Dual rotation speeds balance power consumption against rapid screen refresh needs.
Weather Resilience
Solid-state performance maintains reliable visibility through heavy fog and rain.
System Integration
Seamlessly plugs into existing Garmin Marine Network setups for effortless connectivity.
Key Specs
Power Output
50 W
Maximum Range
72 nm
Antenna Size
4' Open Array
Beamwidth
1.8° horizontal, 23° vertical
Rotation Speed
24 RPM and 48 RPM
Power Input
10-32v DC
Weight (Full Assembly)
46.1 lb
Water Rating
IPx6
Features
- Powerful 50W solid-state radar performance
- Extended range up to 72 nautical miles
- MotionScope detects and highlights moving targets
- High-resolution imaging with 1.8° beamwidth
- Dual rotation speeds for power or speed
- IPx6 water resistance rating
- Connects via Garmin Marine Network
- 4' Open Array antenna size
What customers say
Customers highly value the Garmin Fantom 54 Radar for its exceptional performance and reliability. The core appeal centers on superior target definition and the revolutionary MotionScope technology, which instantly highlights moving objects, greatly boosting situational awareness. Reviewers consistently praise the radar's clarity, noting its ability to distinguish small targets even in poor weather. Features like Bird Mode and low power draw are significant operational advantages. Integration with existing Garmin systems is seamless, contributing to high ease of use. While the premium price is a consideration, most users agree the advanced safety features justify the investment. Overall, this radar is viewed as a high-quality, essential navigation tool delivering professional grade results.
Know before you buy
MotionScope uses the Doppler effect to detect and highlight moving targets in different colors. This allows you to instantly identify approaching vessels or weather patterns on your display without needing to manually track every object.
You can choose between 24 RPM for standard power efficiency or 48 RPM for faster screen updates. The 48 RPM setting is particularly useful when you are navigating in busy harbors or high-traffic areas where you need the most current information possible.
Yes, the Fantom 54 connects directly to your system via the Garmin Marine Network. As long as your current chartplotter or multifunction display is compatible with the Garmin Marine Network, it will recognize and display the radar data seamlessly.
While the 4-foot array offers excellent resolution with its 1.8-degree beamwidth, you must ensure your vessel has the physical space for the mounting footprint and the structural capacity to support the 46.1-pound assembly. It is generally best suited for mid-to-large sized boats that require long-range detection capabilities.
Solid-state radar technology provides near-instant startup times and lower power consumption compared to traditional magnetron systems. It also offers more consistent performance over time, as it does not suffer from the same degradation issues as older vacuum-tube style radars.
Yes, the Fantom 54 is designed to perform in challenging weather conditions. Its high-resolution imaging and solid-state processing help cut through precipitation to provide a clear view of hazards that might otherwise be obscured by fog or rain.
