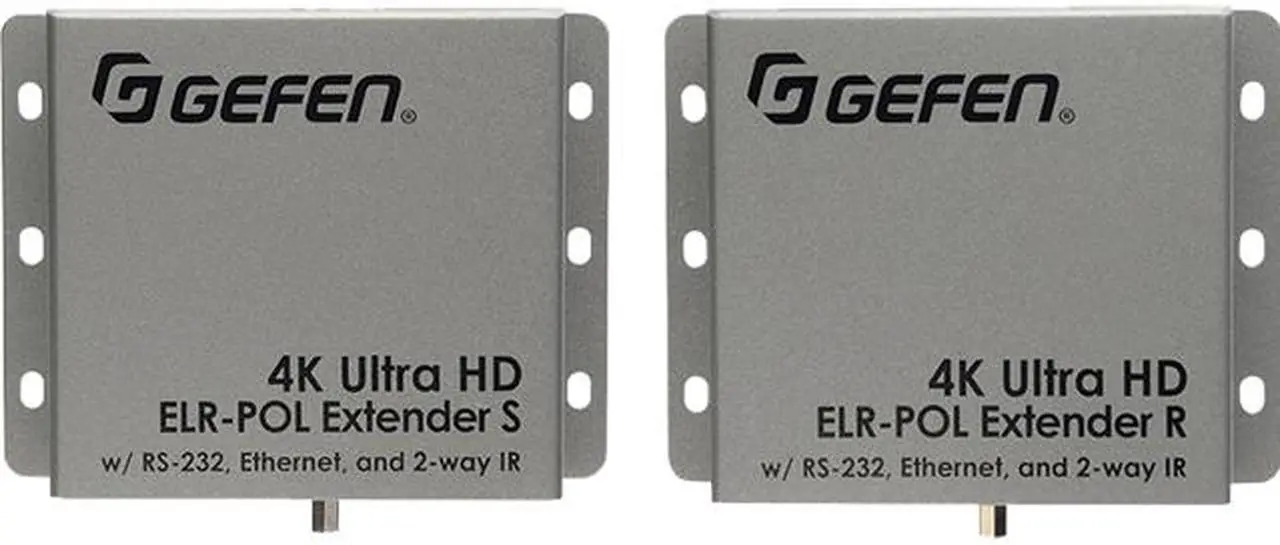

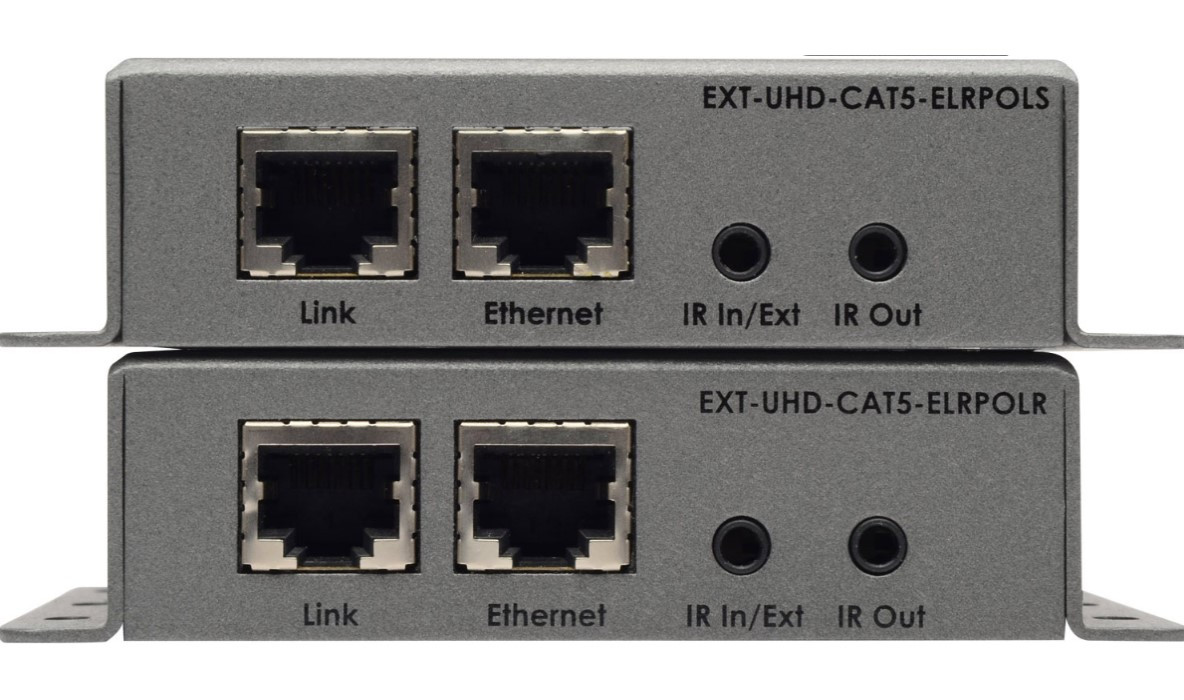

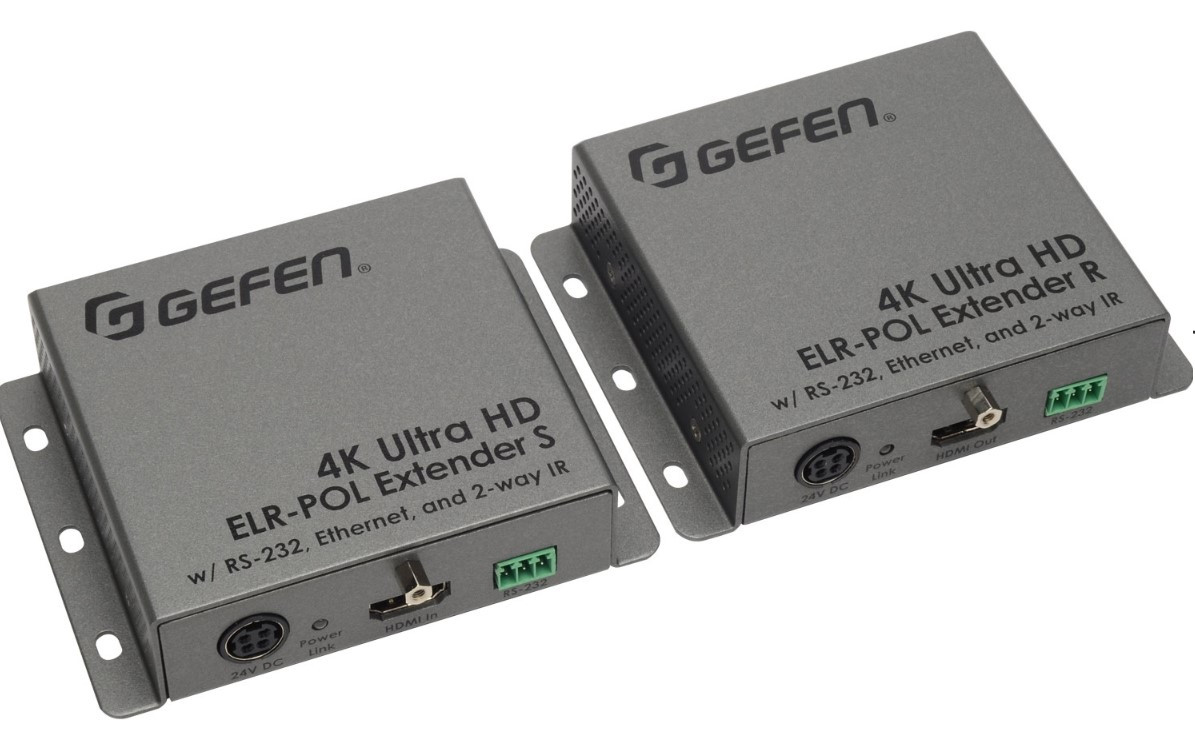

Gefen 4K Ultra HD Extender for HDMI over One CAT-5 with Ethernet, RS-232, Bi-Directional IR, and POL
Extend your HDMI signals with the Gefen 4K Ultra HD Extender, designed for seamless 4K resolution up to 130 feet or 1080p up to 230 feet over a single CAT-5e cable. This extender supports high-bit-rate 7.1 channel audio and includes bi-directional IR extension for convenient remote control of source devices from the display location. A standout feature is Gefen's POL technology, which powers the receiver unit directly through the CAT cable, simplifying installation by eliminating the need for an additional power supply. It ensures compatibility with modern systems, supporting HDMI 2.0, HDCP 2.2, and 12-bit Deep Color.
$369.00
Owner Satisfaction
4.4
/ 5
Category Rank
1822
/ 2576
#1822 in Repeaters & Transceivers
Price vs Category Average
-62%
Below average
Maximum Resolution Support
438402160604204409621602430444
/ K Ultra HD ( x @ Hz ::) or K DCI ( x @ or Hz ::)
Who it's for
- Comprehensive Control Integration
- Simplified Power Management (POL)
- Multi-Signal Transmission over Single Cable
Who should skip it
- Premium Price Point
- Distance Limitations for Full 4K
- Overkill for Basic Home Use
Key Specs
Maximum Resolution Support
4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) or 4K DCI (4096 x 2160 @ 24 or 30 Hz 4:4:4)
Maximum Extension Distance (1080p)
230 feet (70 meters) over CAT-6
HDMI Version Supported
2.0
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Color Depth
12-bit Deep Color
Maximum Pixel Clock
225 MHz
Dimensions (W x H x D)
4.3 x 1.0 x 3.2 inches (Sender/Receiver)
Power Input Specification
24 VDC, locking
Features
- Extends 4K Ultra HD signals over long distances
- Receiver powered by the CAT cable (POL)
- Bi-directional IR extension for remote control
- Supports high-bit-rate 7.1 channel audio
- Simplifies installation by eliminating receiver power supply
- Secure locking HDMI connectors
- Passes through CEC and 3DTV signals
- Designed for easy surface mounting
What customers say
Professional integrators highly value this extender for its exceptional reliability in transmitting uncompressed 4K signals over long distances using a single cable. Key strengths include Power over Link, which simplifies installation by removing the need for a receiver power source, and advanced features like Ethernet pass-through that ensure seamless integration into complex control systems. Users confirm pristine video quality without latency. While the premium price is noted, professionals consider the cost justified by the unit's robust performance and dependable, set and forget operation. Optimal stability requires certified, high-grade cabling.
