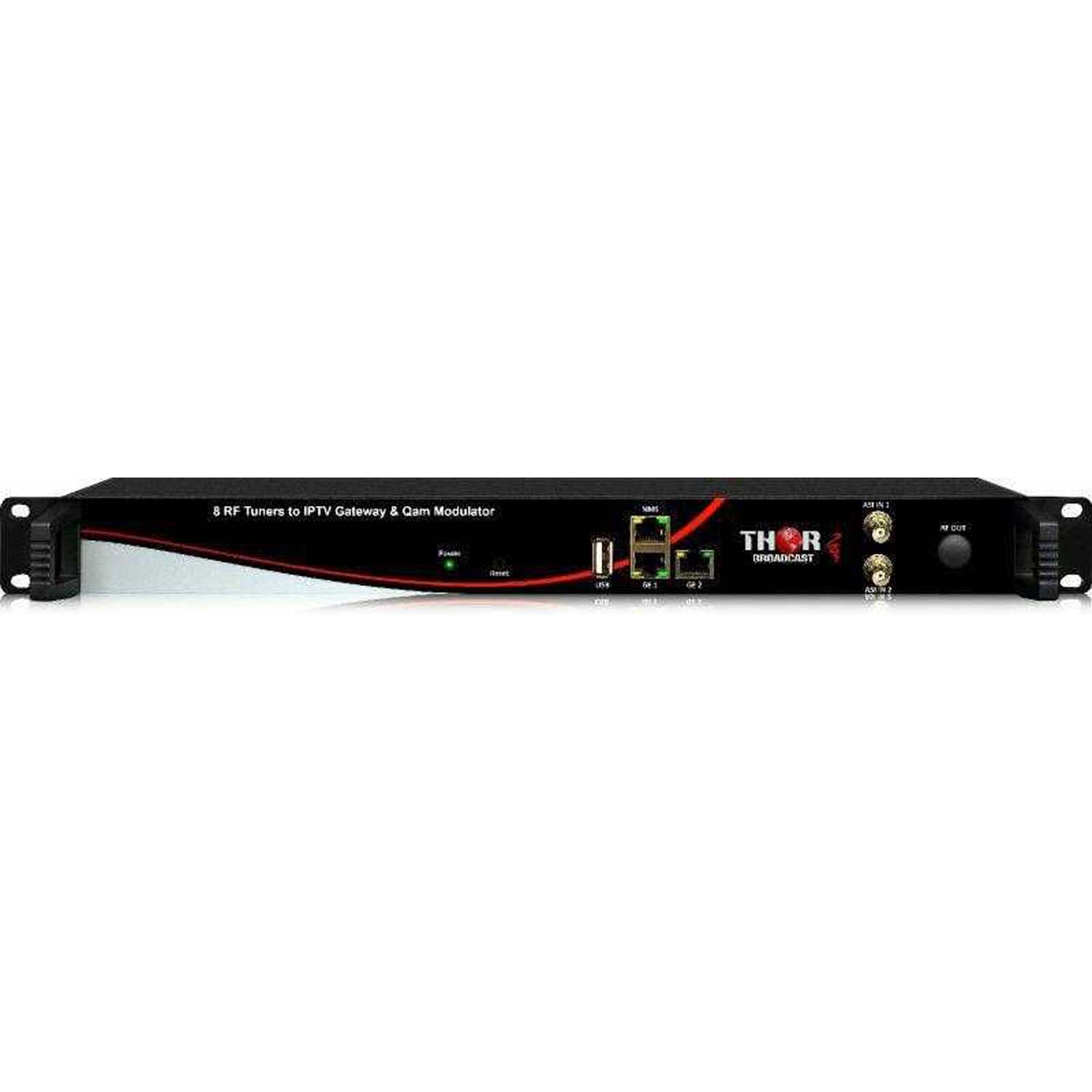

Thor Broadcast H-8QAM-IP RF to IP Gateway
The Thor Broadcast H-8QAM-IP is a versatile gateway for digital TV head-end systems, efficiently converting up to eight off-air ATSC or cable QAM RF frequencies directly into IPTV streams without re-encoding. It preserves full HD video quality by extracting all TV programs from input frequencies and outputting them as SPTS multicast/unicast streams or a multiplexed MPTS via ASI. This unit also supports dual ASI inputs, functioning as a flexible gateway. Management is simplified through full IP control via a web browser, offering an easy solution for integrating existing RF channels into an IPTV lineup.
$3495.00
Owner Satisfaction
4.5
/ 5
Category Rank
43
/ 61
#43 in Modulators
Price vs Category Average
+19%
Above average
Input RF Power Level
535
/ - dBmV
Who it's for
- High Channel Density
- Seamless RF to IP Conversion
- Robust Management Interface
Who should skip it
- Steep Learning Curve for Setup
- High Initial Investment
- Input Standard Specificity
Key Specs
Input RF Power Level
5-35 dBmV
RF Frequency Range
30-960 MHz for QAM/ATSC
Power Input
100-240 VAC Auto-Switching
Dimensions
19 x 9 x 3 Inches
Weight
6 Pounds
Power Consumption
~ 20 W
Operating Temperature
32-110 F
Supported Codecs
MPEG2 Video, MPEG4 H.264
Features
- Converts 8 RF channels to IPTV streams
- Dual ASI input to IP gateway
- Supports QAM-256/64 and ATSC (8VSB)
- Selectable channels for SPTS output
- Full IP control via web browser
- Passes through existing MPEG2 or H.264 video
- Supports AC3 and AAC audio codecs
- Multiplexes one program across all outputs
What customers say
System integrators and engineers highly value the Thor H-8QAM-IP for its robust performance in high-density IPTV distribution. Users consistently praise its reliability in converting up to eight QAM inputs into stable, low latency IP streams, making it a dependable workhorse for continuous operation. The high channel capacity is a major advantage over alternatives. While the unit offers superior long-term value due to its stability and density, the initial setup presents a significant learning curve. Non-expert users often require specialized knowledge or technical support to configure the professional grade networking features correctly. Overall satisfaction remains high, justifying the investment through exceptional operational stability.
