Seco-Larm

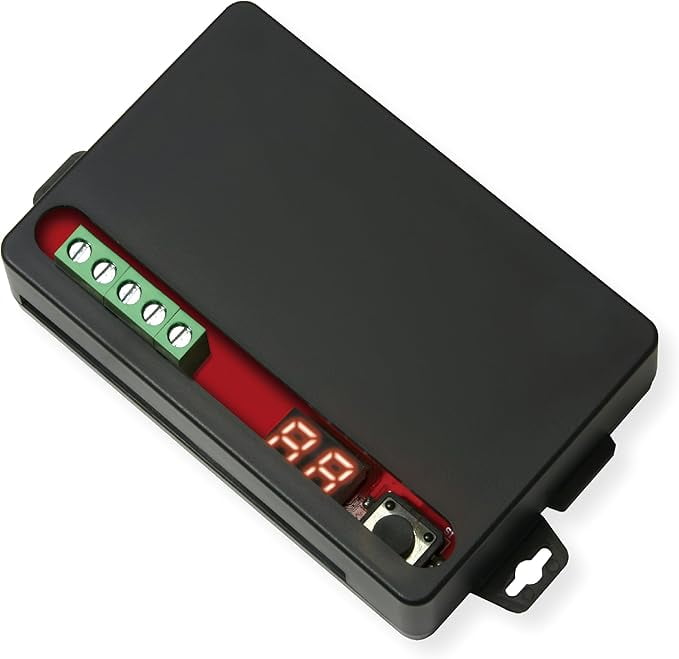

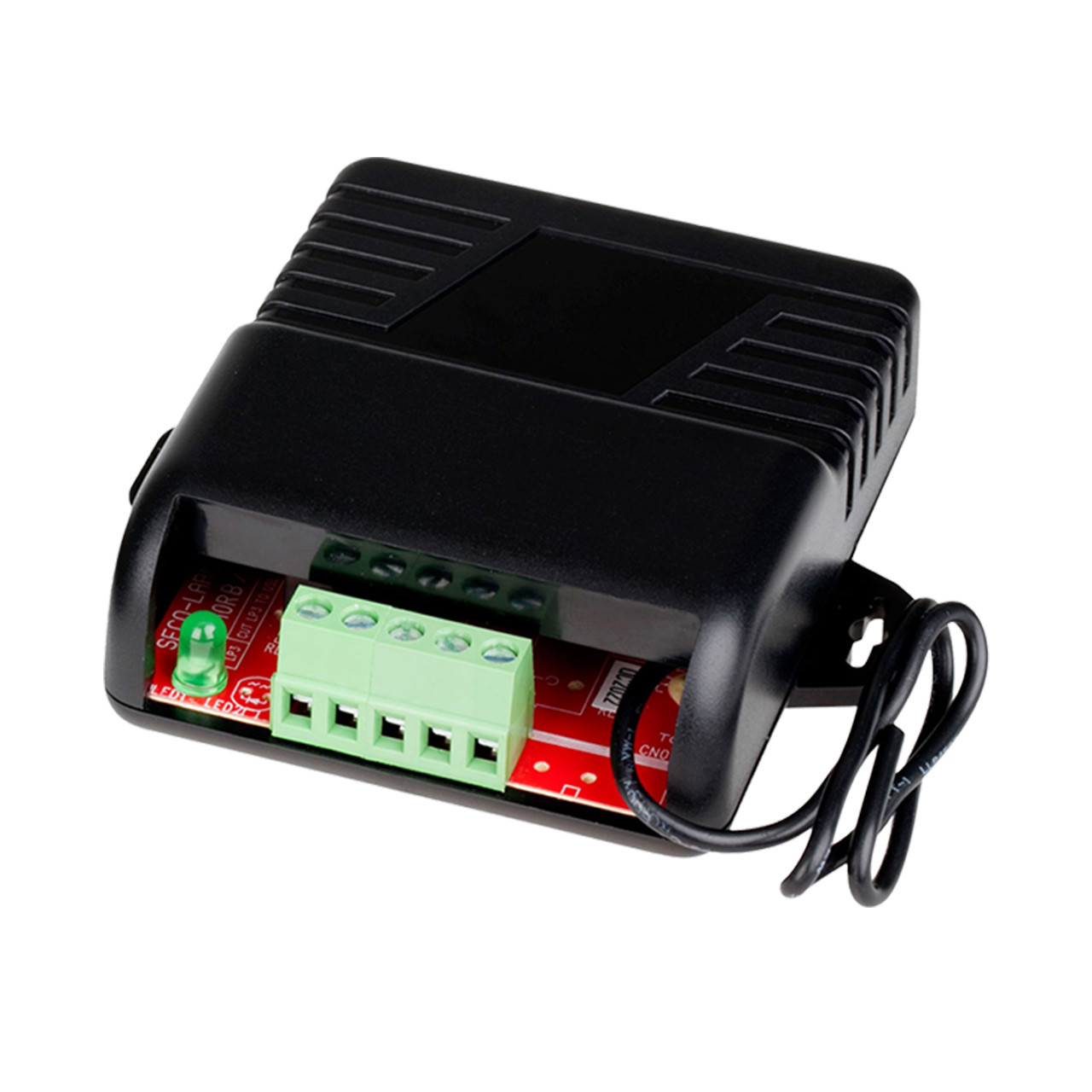

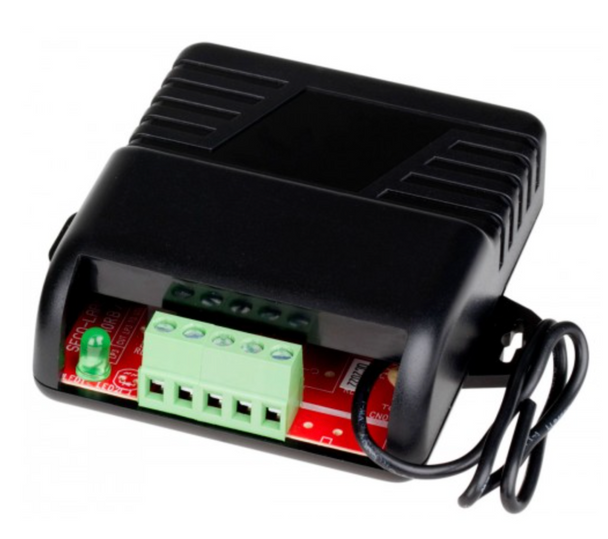

Seco-Larm SK-910RD1 1 Channel RF Receiver
The Seco-Larm SK-910RD1 is a versatile 1-channel RF receiver designed for access control applications. Encased in durable, high-impact ABS plastic, this unit operates reliably at 315MHz with an impressive range up to 500 feet. It features five programmable relay outputs, allowing control over devices like garage doors, gates, or alarm panels. An integrated LED indicator provides clear status feedback on RF reception and programming modes. Programming is streamlined using a simple pushbutton interface, making setup efficient for various remote control needs.
$61.55
Owner Satisfaction
4.3
/ 5
Category Rank
151
/ 177
#151 in RFID Readers
Price vs Category Average
-88%
Below average
Frequency
315
/ MHz
Who it's for
- Wide Application Range
- Simple Single-Channel Operation
- Reliable Performance
Who should skip it
- Single-Channel Limitation
- Transmitter Compatibility Constraints
- Susceptible to RF Interference
Key Specs
Frequency
315 MHz
Operating Distance
Up to 500 ft
Power Requirement
11 to 24 VAC/VDC
Relay Contact Rating
Max 10A @ 24 VDC (Form C)
Dimensions
3-1/4 x 2-3/4 x 1-1/8 inches
Material
High-impact ABS plastic
Wireless Protocol
Proprietary RF
Certifications
FCC/IC Compliance
Features
- Controls gates, lights, and alarm panels remotely
- Five distinct programmable relay output modes
- LED indicates RF reception and status changes
- Easy setup via pushbutton programming
- Durable high-impact ABS plastic housing
- Supports up to 500 feet operating distance
- Form C dry relay contact for versatile wiring
What customers say
Professionals highly value the Seco Larm SK 910RD1 receiver for its robust build quality and unwavering reliability in access control. Its core strength lies in versatile configuration, easily supporting momentary, latching, or toggle outputs for diverse applications. Installation is straightforward for experienced users due to clear labeling. While the required use of compatible transmitters presents a slight learning curve for novices, the overall consensus praises its exceptional performance and stable range. Users see this device as a dependable, long-term investment delivering consistent commercial grade RF control, resulting in high satisfaction.
Know before you buy
This receiver is designed for a wide range of access control applications, including garage doors, automatic gates, alarm panels, and lighting systems. Its Form C dry relay contact allows it to integrate with most standard low-voltage equipment.
The SK-910RD1 operates on a 315MHz frequency and uses a proprietary RF protocol. You must use compatible Seco-Larm transmitters to ensure the devices can communicate effectively.
Programming is handled directly on the unit using a simple pushbutton interface. The integrated LED indicator provides visual feedback to guide you through the setup process for each of the five distinct output modes.
The unit requires a power input of 11 to 24 VAC or VDC. Ensure your power supply falls within this range to prevent damage to the internal circuitry.
While the SK-910RD1 is built with durable, high-impact ABS plastic, it is not explicitly rated as weatherproof. If you plan to mount it outdoors, it should be placed inside a protective, weather-resistant enclosure.
The receiver supports an operating distance of up to 500 feet in ideal, open-air conditions. Keep in mind that physical obstructions like walls, metal structures, and interference from other electronic devices can significantly reduce this range.
