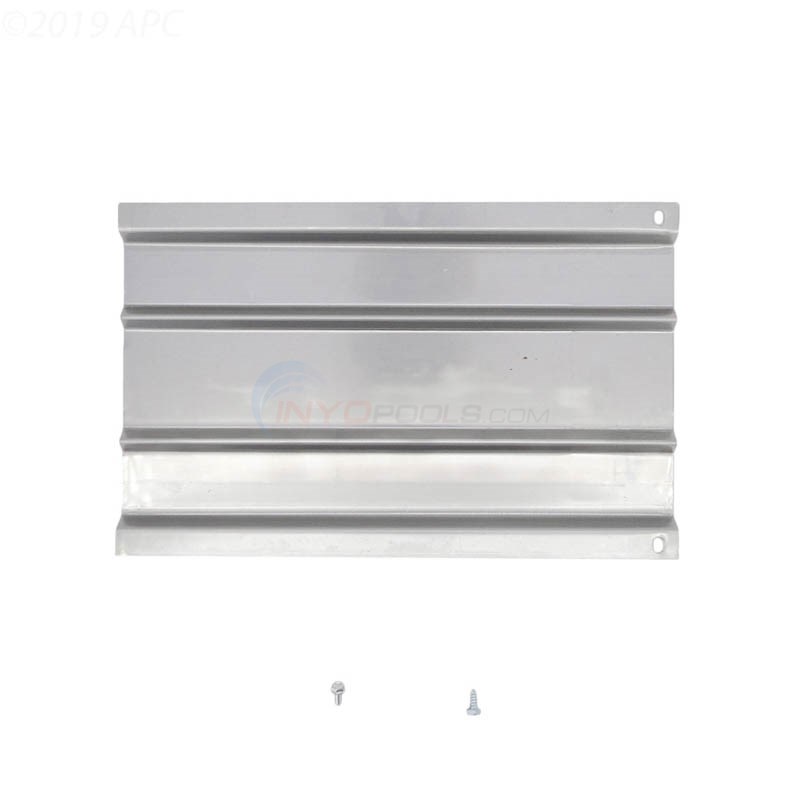

Raypak Base Heat Shield 010320F
Best protective shield for maintaining specific digital pool heater longevity.
Protect your Raypak Digital Heater with the 010320F Atmospheric Base Heat Shield. This genuine Raypak replacement part is engineered to ensure a proper fit and maintain the longevity and performance of your heating system. Designed for specific BTU models including 199,500, 266,000, 332,500, and 399,000 BTU units, it offers direct replacement for the JCZ-JHN-JHL series. Manufactured to original quality standards, this heat shield is essential for maintaining the integrity and optimal function of your pool or spa heating equipment, ensuring seasons of reliable operation.
$68.96
Owner Satisfaction
4.6
/ 5
Category Rank
175
/ 2963
#175 in Pool & Spa Accessories
Price vs Category Average
-79%
Below average
Mfr
Raypak Products
/ Raypak Products
Who it's for
- Homeowners protecting wooden decks or concrete patios from heat damage
- Pool owners prioritizing manufacturer-guaranteed fit and long-term reliability
- Installers needing to meet strict local fire safety code requirements
Who should skip it
- Budget-conscious buyers looking to minimize total equipment installation costs
- Technicians performing frequent internal maintenance or routine heater inspections
- Shoppers with non-Raypak heaters or unverified model compatibility
Performance breakdown
OEM Compatibility
Genuine Raypak engineering ensures a perfect fit for specified heater models.
Thermal Protection
Robust construction effectively shields critical components from excessive heat exposure.
Installation Simplicity
Direct replacement design allows for straightforward mounting without complex modifications.
Material Durability
High-quality manufacturing standards ensure long-term resilience in harsh pool environments.
System Longevity
Essential protection that significantly extends the operational lifespan of your heater.
Model Versatility
Broad compatibility across the popular 206A through 406A heater series.
Key Specs
Mfr
Raypak Products
Mfg Part #
010320F
Type
Heater Parts
Brand
Raypak
Model
010320F
Height
1 in
Venting Type
Atmospheric
Compatible with Raypak Digital Heaters
199,500 BTU (206A), 266,000 BTU (266A), 332,500 BTU (336A), 399,000 BTU (406A)
Features
- Genuine Raypak replacement part
- Ensures proper fit and function
- Direct replacement for specific models
- Protects your Raypak Digital Heater
- Maintains system longevity and performance
- Manufactured to original quality standards
- Designed for JCZ-JHN-JHL series
- Essential for heating system integrity
What customers say
Customers express overwhelming satisfaction with the Raypak Base Heat Shield 010320F, focusing on its quality and perfect fit as an OEM replacement. Reviewers consistently praise the shield's precise dimensional accuracy, noting it aligns flawlessly with the heater chassis, which is crucial for safety and thermal performance. While heater repair itself can be complex, the product's ease of installation, relative to the required task, is appreciated. The construction is perceived as robust and durable, meeting expectations for a heat exposed component. Customers view this shield as a highly worthwhile investment, successfully extending the lifespan of their expensive pool or spa heater, reflecting high satisfaction with its reliability and essential role in restoring efficient operation.
Know before you buy
No, this specific heat shield is designed for atmospheric models in the JCZ, JHN, and JHL series. It is compatible with 206A, 266A, 336A, and 406A units ranging from 199,500 to 399,000 BTU.
Yes, the 010320F heat shield is compatible with both natural gas and propane-fueled Raypak digital heaters.
Using a genuine Raypak part ensures the heat shield meets the exact material and dimension standards required for your heater's safety and performance. Off-brand alternatives may not provide the proper fit, which can compromise the integrity of your heating system.
The base heat shield acts as a protective barrier for your heater's internal components. It helps maintain the unit's structural integrity and ensures optimal performance by managing heat distribution within the atmospheric venting system.
This is a direct replacement part designed for a seamless fit. As long as you have a compatible model, it should install without the need for any modifications to your existing heating equipment.
