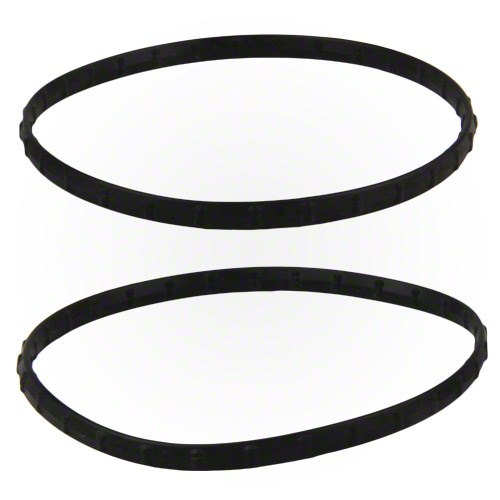

Pentair Union Diamond Seal Kit
Best leak-prevention solution for owners of high-performance pool pump systems.
The Pentair Union Diamond Seal Kit (Part No. 410016Z) is an essential replacement set for maintaining watertight seals in compatible pool pump systems. This kit includes two genuine Pentair seals specifically designed for 2.5" unions. It ensures reliable performance for popular models like the Pentair WhisperFlo XF, IntelliFloXF, and Sta-Rite Max-E-Pro XF pumps. Using this kit for maintenance or repair guarantees that your pool pump system operates efficiently and without leaks, preserving the longevity of your equipment.
$17.95
Owner Satisfaction
4.5
/ 5
Category Rank
110
/ 716
#110 in Pool & Spa Maintenance Kits
Price vs Category Average
-82%
Below average
Part Number
410016
/ Z
Who it's for
- DIYers needing guaranteed compatibility for Pentair system repairs
- Pool owners seeking long-lasting, chemical-resistant equipment seals
- Homeowners wanting to prevent costly high-pressure water leaks
Who should skip it
- Owners of non-Pentair plumbing and equipment systems
- Budget-conscious shoppers looking for affordable aftermarket alternatives
- Novice repairers uncomfortable with precise mechanical installations
Performance breakdown
Seal Integrity
Genuine OEM manufacturing ensures a precise, leak-free fit every time.
Installation Simplicity
Straightforward design allows for quick, tool-free replacement during routine maintenance.
Material Durability
High-grade rubber compounds resist chemical degradation from standard pool sanitizers.
System Compatibility
Perfectly engineered for the specific tolerances of XF pump union connections.
Maintenance Value
Prevents costly pump housing damage by maintaining a consistent watertight seal.
Component Reliability
Consistent performance reduces the frequency of emergency pump system repairs.
Key Specs
Part Number
410016Z
Size
2.5" Union
Quantity
Set of Two Seals
Intended Use
Pool pump maintenance/repair
Compatible With
Pentair WhisperFlo XF Pumps, Pentair IntelliFloXF Pumps, Sta-Rite Max-E-Pro XF Pumps
Features
- Includes a set of two seals
- Genuine Pentair replacement part
- Ensures a watertight pump seal
- Designed for 2.5" union connections
- Compatible with XF pump series
What customers say
This genuine Pentair Diamond Seal Kit is overwhelmingly viewed as a high quality, essential maintenance purchase for pool owners. Reviewers consistently praise its effectiveness in resolving persistent leaks in Pentair pumps and filters, noting its superior longevity compared to generic alternatives. While installation requires careful seating for a lasting result, the primary focus remains on reliability. Customers agree that the premium cost is justified by the peace of mind and restored optimal performance achieved. The consensus strongly favors this OEM kit for maintaining system integrity and guaranteeing a leak free operation.
Know before you buy
This kit includes two genuine Pentair seals, which is the standard amount needed to service a single 2.5-inch union connection.
The 410016Z kit is designed specifically for the Pentair WhisperFlo XF, IntelliFloXF, and Sta-Rite Max-E-Pro XF pump series.
No, these seals are specifically engineered for 2.5-inch union connections. They will not provide a proper fit or watertight seal on 2-inch plumbing.
Genuine Pentair parts are manufactured to the exact specifications of your pump, ensuring a precise fit and reliable performance that prevents leaks and protects your equipment's longevity.
If you notice water dripping or spraying from the union connection points on your pump, it is a clear sign that the existing seals have worn out or become brittle and require replacement.
