Gefen HDMI to Composite / S-Video Scaler
The Gefen HDMI to Composite / S-Video Scaler is your solution for converting high-definition HDMI signals to standard definition NTSC/PAL formats. This device scales your video while preserving the original aspect ratio for optimal viewing on analog televisions. It also de-embeds audio from the HDMI signal, offering digital S/PDIF and analog stereo outputs for your AV receiver or amplifier. Compatibility is enhanced with underscan/overscan and NTSC/PAL switches, and firmware can be easily updated via the USB port.
$321.59
Owner Satisfaction
4.0
/ 5
Category Rank
304
/ 374
#304 in Scan Converters
Price vs Category Average
-56%
Below average
Video Input Connector
119
/ () HDMI Type A, -pin, female, locking
Who it's for
- Excellent Legacy Display Support
- Professional Grade Scaling Engine
- Simultaneous Analog Output
Who should skip it
- Premium Price Point
- Inherent Quality Degradation
- Potential HDCP Compliance Issues

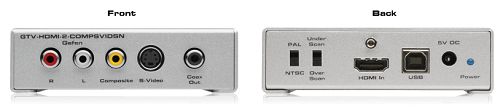

Key Specs
Video Input Connector
(1) HDMI Type A, 19-pin, female, locking
Video Output Connectors
(1) Composite, RCA-type, female; (1) S-Video, female
Audio Output Connectors
(1) L/R analog audio (2 x RCA-type, female); (1) S/PDIF (Coax), RCA-type, female
USB Connector
(1) Type B (firmware upgrade only)
Dimensions (W x H x D)
4.1" x 1.2" x 7.1" (104mm x 30mm x 180mm)
Shipping Weight
2.5 lbs. (1.1kg)
Maximum Pixel Clock
225 MHz
Power Consumption
7.5 Watts (maximum)
Features
- Converts and scales HDMI to Composite/S-Video
- De-embeds audio to digital and analog outputs
- Supports NTSC and PAL formats
- Adjustable underscan/overscan for image tuning
- Field upgradable firmware via USB
- Maintains original aspect ratio
- Accepts up to 1080p Full HD input
- Outputs at 480i/60 or 576i/50
What customers say
This scaler earns praise for its robust functionality in a niche role: connecting modern digital sources to legacy standard definition displays. Customers value the professional build quality and the flexibility of having both Composite and S Video outputs for vintage equipment compatibility. While the device reliably solves difficult integration challenges, achieving the best picture quality demands careful source configuration, as it is not always plug and play. Despite a premium price, satisfied users consider this unit a superior, high quality investment that consistently delivers an acceptable standard definition image for specialized A V needs.
