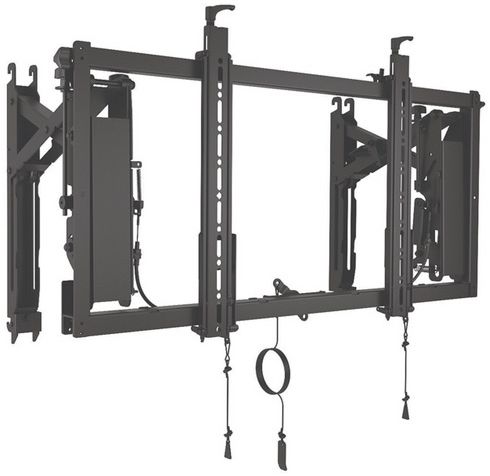

Chief ConnexSys Video Wall Landscape Mounting System with Rails
Best professional mounting solution for large-scale, multi-screen video wall installations.
The Chief ConnexSys Landscape Mounting System (LVSXU) is engineered to streamline large video wall installations, solving common challenges related to speed, alignment, and serviceability. This system allows installers to level rows efficiently using locally sourced strut channel, significantly reducing setup time. Key benefits include tool-free ClickConnect™ latching for display security and PowerZone™ offering six adjustment points for precise alignment. Service access is simplified via the RapidDraw™ cord, which remotely releases the screen. The rigid frame maintains display position, supporting screens from 42 to 80 inches in landscape orientation.
$119.99
Owner Satisfaction
4.6
/ 5
Category Rank
397
/ 1986
#397 in TV & Monitor Mounts
Price vs Category Average
-53%
Below average
Weight Capacity
15068
/ lbs ( kg)
Who it's for
- Installers seeking perfectly seamless, tool-free screen alignment
- Maintenance teams needing quick access to individual displays
- Project managers wanting faster, more rigid large-scale installations
Who should skip it
- Budget-conscious buyers needing a standard, affordable mounting solution
- DIY enthusiasts lacking professional commercial AV installation experience
- Designers prioritizing an ultra-slim, flush-to-wall aesthetic
Performance breakdown
Installation Efficiency
Strut channel integration drastically reduces time spent leveling large video walls.
Alignment Precision
Six-point PowerZone adjustment ensures perfectly seamless screen transitions.
Service Accessibility
RapidDraw cord and kickstand features make maintenance effortless without removing displays.
Structural Rigidity
Heavy-duty frame maintains display position even under demanding commercial conditions.
Security Features

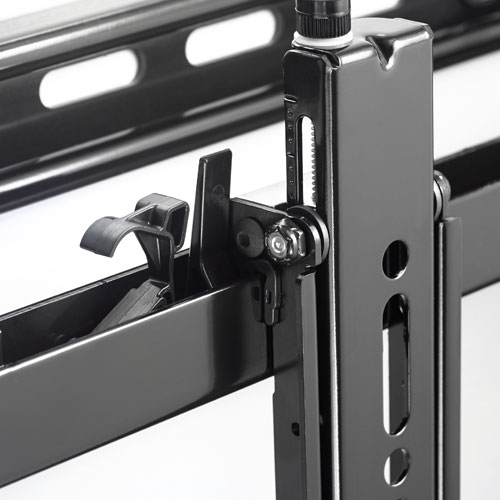

ClickConnect latching provides reliable, tool-free locking for high-traffic public installations.
Versatility
Broad compatibility supports a wide range of screen sizes and configurations.
Key Specs
Weight Capacity
150 lbs (68 kg)
Compatible Screen Sizes
42 - 80 inches
Depth Range
4.0 inches minimum to 7.4 inches maximum
Height Adjustment
± 1 inch per interface
Tilt Range
+ 4.0°, -2.5°
Mounting Pattern Compatibility
Up to 700 x 400 mm
Certifications
UL Listed, OSHPD Approved
Overall Dimensions
21.8" H x 35.5" W x 4.0" D
Features
- Efficient row leveling with strut channel
- Tool-free ClickConnect™ latching for secure displays
- PowerZone™ offers six adjustment points
- RapidDraw™ cord for remote screen release
- Kickstand for 20-degree bottom tilt access
- Depth adjustable from 4" to 7.4"
- Three levels of lateral adjustment
- Rigid frame maintains precise display position
What customers say
Professional AV integrators highly praise the Chief ConnexSys Video Wall Mounting System for its engineering precision and efficiency. Reviewers consistently emphasize the patented ConnexSys microadjustment capabilities, which enable incredibly fine display alignment, significantly reducing setup time and labor costs associated with achieving seamless bezel gaps. The robust construction inspires confidence in long-term stability for expensive displays. Additionally, the pop-out service mechanism is deemed essential for quick rear access without dismantling the wall. While the initial cost is high, users agree that the superior alignment, simplified maintenance, and efficiency gains fully justify the premium, establishing this system as the standard for complex installations where quality and reliability are essential.
Know before you buy
This mount is designed for landscape-oriented displays ranging from 42 to 80 inches, provided they fall within the 150-pound weight limit and have a mounting pattern up to 700 x 400 mm.
The system features a RapidDraw cord that allows you to remotely release the screen from the wall. Additionally, a built-in kickstand provides a 20-degree tilt, giving you enough space to reach cables and connections without removing the display.
Yes, the PowerZone adjustment feature provides six points of adjustment, including height, tilt, and depth. This ensures that adjacent screens in a video wall can be perfectly aligned for a seamless look.
Using locally sourced strut channel allows you to level entire rows of mounts at once rather than leveling each display individually. This significantly speeds up the installation process for large-scale video wall projects.
Yes, the mount offers a depth adjustment range between 4.0 inches and 7.4 inches, allowing you to set the desired profile for your specific installation.
The system includes a tool-free ClickConnect latching mechanism that secures the display in place. It also features a locking mechanism to prevent unauthorized removal or tampering.
