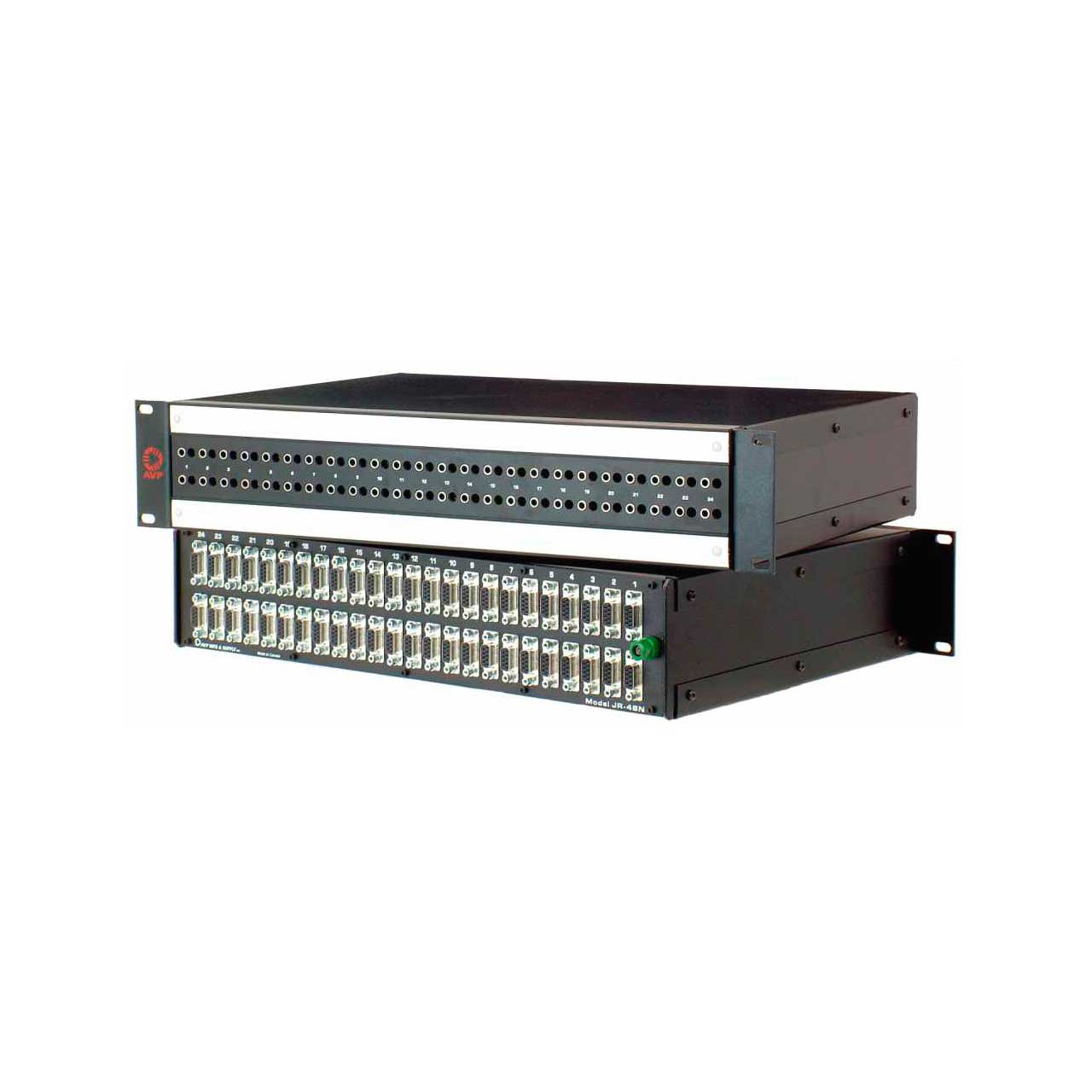

RS422 DataPatch - Full Normals Installed at Jack - 24 Send/Recieve Circuit Pairs
Best professional solution for reliable RS422 data signal management.
The AVP RS422 DataPatch panel provides robust data path patching for professional applications. This 2RU, 19-inch rack-mountable unit features 24 Send/Receive Circuit Pairs with Full Normals pre-installed at the jacks for immediate use. Secure 9-pin D connectors with screwlocks ensure reliable connections, while polarity-protected keyed jacks and patchcords simplify setup and prevent errors. Its steel chassis offers durability, and clear circuit identification at a glance enhances operational efficiency. Designed for dependable RS422 patching and data interconnection, it's a quality solution for complex systems.
$2283.30
Owner Satisfaction
4.7
/ 5
Category Rank
7
/ 301
#7 in Patch Panels
Price vs Category Average
+191%
Above average
Chassis Material
Steel
/ Steel
Who it's for
- Broadcast engineers requiring reliable long-distance data transmission
- System integrators seeking simplified default signal routing
- Facility managers needing high-density, durable patching solutions
Who should skip it
- Budget-conscious buyers looking for basic, non-normalized panels
- Users needing versatile support for audio or IP networking
- Technicians lacking specialized tools for complex backend wiring
Performance breakdown
Build Durability
Rugged steel chassis ensures long-term reliability in demanding professional environments.
Connection Security
Screwlock D-connectors provide a rock-solid interface for critical data paths.
Setup Efficiency
Pre-installed full normals allow for immediate integration into complex systems.
Error Prevention
Polarity-protected keyed jacks effectively eliminate common patching mistakes.
Operational Clarity
Clear circuit identification makes managing 24 pairs straightforward and intuitive.
Rack Integration
Standard 2RU form factor fits seamlessly into most professional equipment racks.
Key Specs
Chassis Material
Steel
Form Factor
19" Rack-mount (2RU, 3.50" high)
Chassis Depth
12 inches (300mm)
Port Type
9-pin D connectors with screwlocks
Circuit Count
24 Send/Receive Circuit Pairs
Model Number
JR-48N
Compliance
California Proposition 65 Warning
Rack Units
2.0
Features
- 24 Send/Receive Circuit Pairs
- Full Normals installed at jacks
- Secure 9-pin D connectors
- Polarity protected keyed jacks
- Simple circuit identification
- Durable steel chassis
- Reliable data path patching
- RS422 patching capability
What customers say
Professional users overwhelmingly praise the AVP RS422 DataPatch for its exceptional reliability and robust, industrial construction designed for demanding 24/7 broadcast environments. Engineers value the 'Full Normals Installed at Jack' feature, which ensures seamless default signal flow, minimizing setup time for all 24 circuit pairs. The core benefit is uncompromising data integrity; reviewers report near zero signal errors or crosstalk, crucial for maintaining synchronization in mission-critical systems. While priced at a premium, the consensus is that the superior signal quality, minimal maintenance, and long-term durability deliver outstanding value. This component is viewed as essential infrastructure that consistently performs, making it a trusted standard for professionals prioritizing uptime.
Know before you buy
Full normals indicate that the signal path is internally connected from the top jack to the bottom jack by default. This allows your data to flow through the panel without needing patch cords until you physically insert one to reroute the signal.
No, the panel is designed for standard 19-inch rack mounting. However, it does not feature toolless installation, so you will need standard rack screws to secure the 2RU chassis into your rack rails.
Yes, the panel uses standard 9-pin D connectors equipped with screwlocks. These ensure a secure, vibration-resistant connection for your RS422 data lines.
The chassis has a depth of 12 inches (300mm). You should ensure your rack cabinet has at least 12 inches of clearance behind the mounting rails to accommodate the panel and the connected cables.
No, this unit is designed specifically for RS422 data path patching and does not support PoE or provide power to connected devices.
The jacks are keyed to ensure that patch cords can only be inserted in the correct orientation. This prevents accidental polarity reversals that could otherwise disrupt your data transmission.
