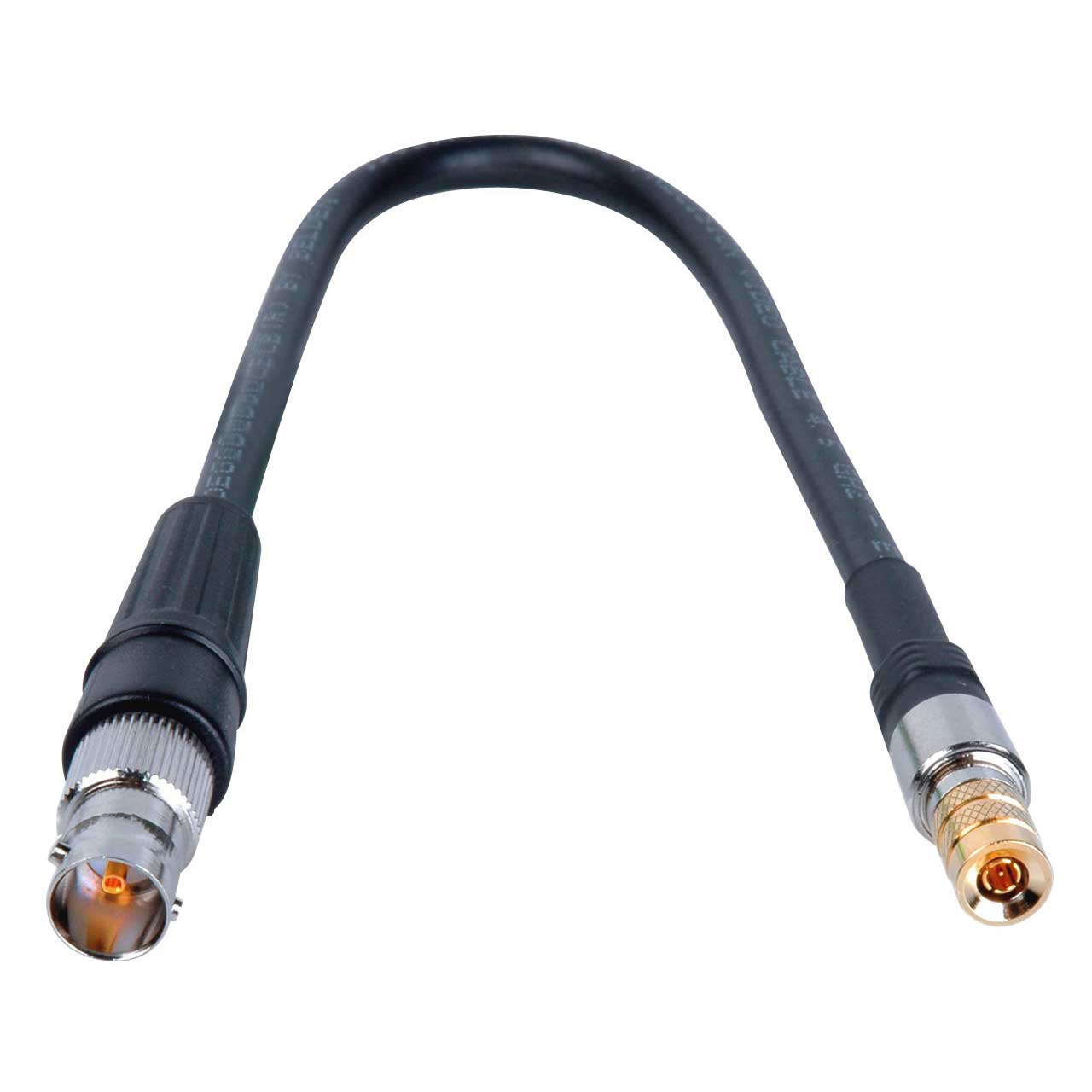

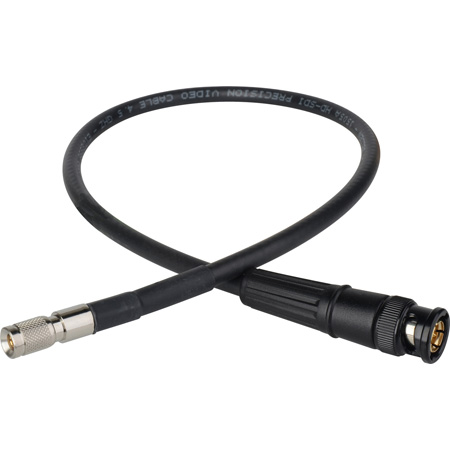

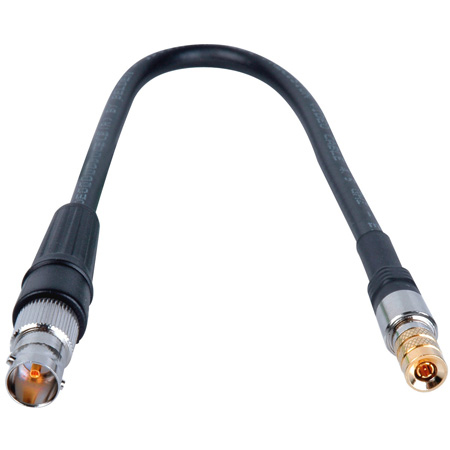

Laird DIN1505-BF Belden 1505A RG59 3G-SDI DIN 1.0/2.3 to BNC Female Video Adapter Cable
Best professional solution for connecting compact broadcast equipment to standard interfaces.
This 3-foot Laird video adapter cable connects modern broadcast equipment with DIN 1.0/2.3 connectors to standard BNC interfaces. Built with high-quality Belden 1505A RG59 coax, it ensures reliable transmission of high-speed 3G-SDI signals. This cable is ideal for professional broadcast patching, supporting up to 6Gb/s data rates for demanding video applications. Its robust construction and precise impedance matching guarantee dependable performance, making it a valuable tool for studios and live production environments. The adapter is backed by a Limited Lifetime Warranty.
$29.49
Owner Satisfaction
4.7
/ 5
Category Rank
99
/ 2556
#99 in Audio & Video Cable Adapters & Couplers
Price vs Category Average
-62%
Below average
Cable Type
15055920
/ Belden A RG/ SDI Coaxial Cable
Who it's for
- Broadcast engineers requiring reliable high-bandwidth signal transmission
- Technicians managing space-constrained equipment racks
- Field production crews needing durable, professional-grade gear
Who should skip it
- Budget-conscious buyers seeking affordable standard cabling solutions
- Users with legacy equipment lacking specialized DIN ports
- Operators working in fast-paced or low-light environments
Performance breakdown
Signal Integrity
Belden 1505A coax ensures virtually lossless transmission for broadcast signals.
Build Durability
Rugged PVC jacket and high-quality shielding withstand demanding studio environments.
Impedance Precision
Strict 75 Ohm matching eliminates signal reflections in high-speed workflows.
Connector Versatility
Seamlessly bridges compact DIN equipment with standard BNC infrastructure.
Bandwidth Capacity
Robust support for 6Gb/s data rates handles modern high-resolution video.
Form Factor
Compact DIN connectors maximize space in dense broadcast patching racks.
Key Specs
Cable Type
Belden 1505A RG59/20 SDI Coaxial Cable
Number of Coax
1
RG Type
59/U
AWG
20
Conductor Material
Bare Copper
Insulation Material
Gas-injected FHDPE
Shielding
Dual Shield - Bonded Duofoil/TC - Tinned Copper
Outer Jacket Material
PVC - Polyvinyl Chloride
Features
- Adapts DIN 1.0/2.3 to BNC
- Uses premium Belden 1505A cable
- Supports 3G-SDI and up to 6Gb/s
- Reliable 75 Ohm impedance
- Space-saving DIN connector
- Ideal for broadcast patching
- Durable PVC jacket
- Limited Lifetime Warranty
What customers say
Professionals overwhelmingly value the Laird DIN1505-BF cable for its exceptional reliability in critical 3G SDI workflows. Users trust the genuine Belden 1505A stock for flawless signal transmission and precise impedance matching, ensuring high signal integrity. The robust construction, featuring a secure BNC lock and a durable, perfectly sized DIN 1.0/2.3 connector, makes it ideal for high-density routing. While the initial investment is higher than generic options, the consensus is that this performance justifies the cost by eliminating signal dropouts and reducing operational downtime. The cable is highly recommended by engineers prioritizing uptime and signal quality above all else.
Know before you buy
This cable is designed to bridge the gap between compact broadcast gear using DIN 1.0/2.3 ports and standard equipment featuring BNC interfaces. It is commonly used for patching modern cameras, routers, or switchers into traditional SDI infrastructure.
Yes, it is built with high-quality Belden 1505A coax and supports 3G-SDI signals, as well as data rates up to 6Gb/s. It is fully capable of handling 1080p Full HD video transmission.
Absolutely. Maintaining a precise 75 Ohm impedance is critical in professional broadcast environments to prevent signal reflections and data loss, ensuring your video feed remains stable and clear.
The cable features a robust PVC jacket and dual-shielded construction, making it well-suited for the rigors of studio and live production patching. It is designed for reliable, long-term use and is backed by a Limited Lifetime Warranty.
This specific adapter is 3 feet long. While the Belden 1505A cable itself can support 3G-SDI signals up to 212 feet and 6Gb/s signals up to 287 feet, this particular unit is intended for short-run patching between devices.
