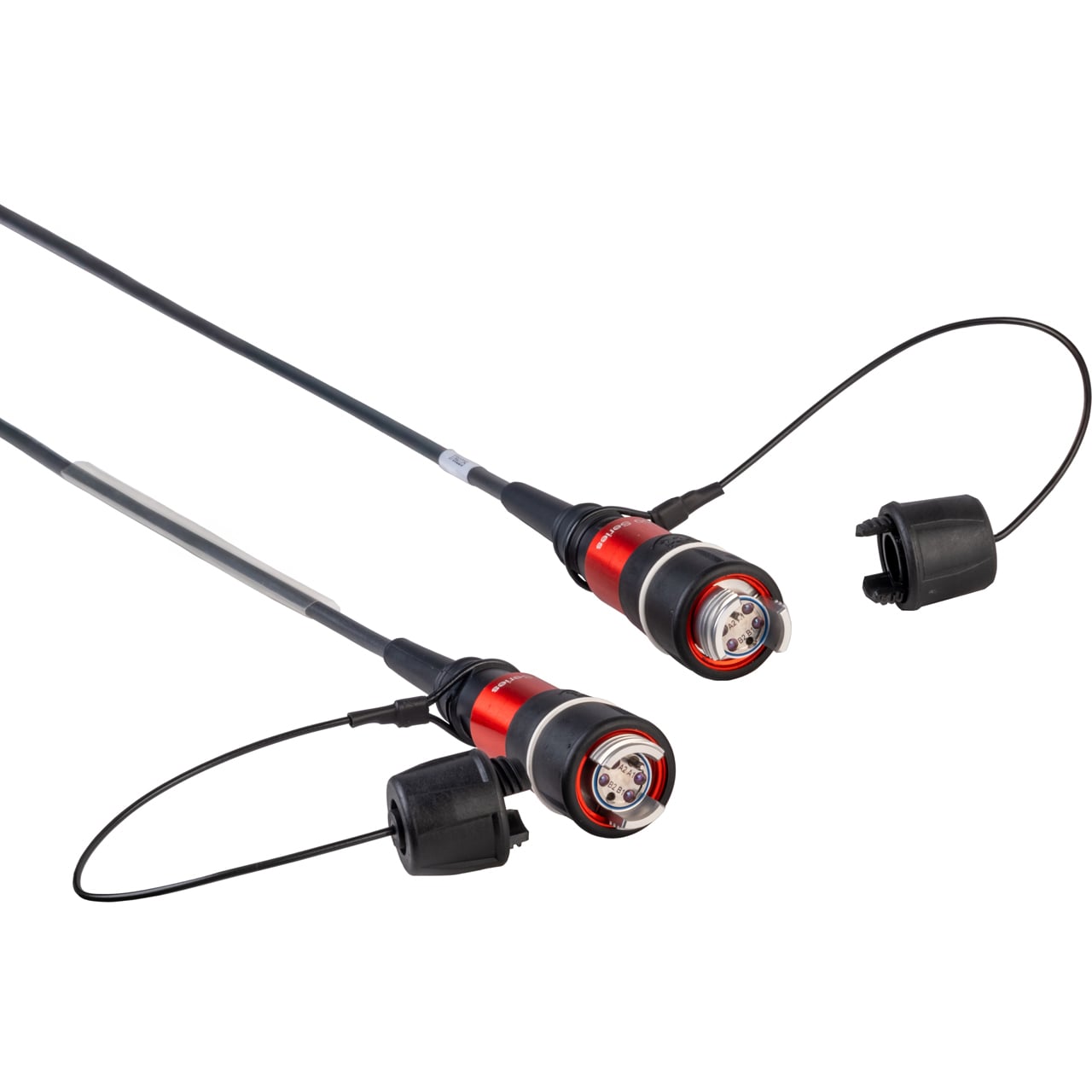

Camplex CMX-XBN04XM X-TREME 4-Channel OM3 Multimode Expanded Beam NEUTRIK FIBERFOX NKOX4M3-FX Fiber Cable
Best rugged fiber solution for professional outdoor broadcast and stage production.
This Camplex X-TREME Series cable reel provides a robust 4-channel OM3 Multimode fiber solution, ideal for demanding stage and production environments. It comes pre-terminated with Neutrik's FIBERFOX EBC25 expanded beam connectors, ensuring exceptional resilience against dust, dirt, and liquids for reliable signal transmission in harsh outdoor conditions. The cable features a durable PUR flame-retardant jacket and aramid yarn for excellent retention. It is compatible with MIL-DTL-83526 systems and allows for direct extension without couplers, offering flexibility and ease of use.
$2832.95
Owner Satisfaction
4.8
/ 5
Category Rank
53
/ 5745
#53 in Audio & Video Cables
Price vs Category Average
+422%
Above average
Fiber Type
50125
/ Multimode (µm Core / µm Cladding)
Who it's for
- Broadcast engineers requiring high-bandwidth data transmission over long distances
- Field technicians working in dusty or unpredictable outdoor environments
- Live production crews needing gear that survives rough daily handling
Who should skip it
- Facilities relying on standard fiber infrastructure without proprietary mating hardware
- Budget-conscious studios prioritizing lower upfront equipment costs
- Engineers managing extremely long-distance fiber runs requiring minimal signal loss
Performance breakdown
Environmental Resilience
IP68 rating ensures total protection against dust, mud, and liquid ingress.
Deployment Speed
Hermaphroditic connectors allow for rapid, coupler-free daisy chaining in the field.
Durability
Rugged PUR jacket and aramid yarn withstand extreme physical abuse and rodents.
Signal Integrity
Expanded beam technology maintains reliable transmission despite minor surface contaminants.
Thermal Tolerance
Engineered to perform flawlessly in temperatures ranging from arctic to desert.
System Compatibility
Standardized MIL-DTL-83526 design integrates seamlessly with professional broadcast infrastructure.
Key Specs
Fiber Type
Multimode (50µm Core / 125 µm Cladding)
Number of Fibers
4-Channel
Connector Type
Neutrik EBC25 (Hermaphroditic)
Jacket Material
PUR (Flame-retardant)
IP Rating
IP68 (mated and unmated)
Insertion Loss
Typical 1.5dB per Connection, Max 2.5dB per Connection
Operating Temperature Range
-51°F to 160°F (-46°C to +71°C)
Flammability Certification
UL 94 V-0
Features
- Highly immune to dust, mud, and liquids
- Rodent-resistant and cut-proof construction
- IP68 rated when mated or unmated
- Directly extendable without couplers
- PUR flame-retardant jacket
- Excellent cable retention via aramid yarn
- Compatible with MIL-DTL-83526 systems
- Designed for demanding outdoor applications
What customers say
Professionals overwhelmingly praise the Camplex X-TREME cable for its unparalleled reliability and superior durability in demanding broadcast environments. The Expanded Beam technology and rugged NEUTRIK FIBERFOX connectors resist dirt and physical damage, eliminating common signal integrity issues found in standard fiber. This robustness translates to significant operational savings through reduced setup time and maintenance. Users value the 'set it and forget it' confidence this cable offers for high-stakes, multi-camera applications. While the initial cost is noted as substantial, the long term value derived from consistent performance and military grade construction makes this cable an essential investment for teams where signal failure is unacceptable.
Know before you buy
These connectors use expanded beam technology, which makes them highly resistant to dust, mud, and liquids. Unlike standard fiber, they do not require constant cleaning and can maintain a reliable signal even in harsh, dirty environments.
Yes. Because the FIBERFOX EBC25 connectors are hermaphroditic, you can daisy-chain multiple cables together directly without needing separate couplers or adapters.
Absolutely. It features a rugged PUR flame-retardant jacket and aramid yarn for high tensile strength, and it is specifically designed to be rodent-resistant and cut-proof for demanding production environments.
Yes, the IP68 rating is effective whether the connectors are mated or unmated, providing full protection against water and dust ingress in both states.
Yes, the Camplex X-TREME series is compatible with MIL-DTL-83526 systems, making it a suitable choice for professional broadcast and military-grade infrastructure.
This cable is built to perform in extreme climates, with an operating temperature range of -51°F to 160°F (-46°C to +71°C).
