Camplex CMX-XBG04M 4-Channel OM3 Multimode Expanded Beam NEUTRIK FIBERFOX EBC NKO4M3-FG Fiber Cable - 50 Foot
Best rugged fiber solution for demanding outdoor and industrial broadcast environments.

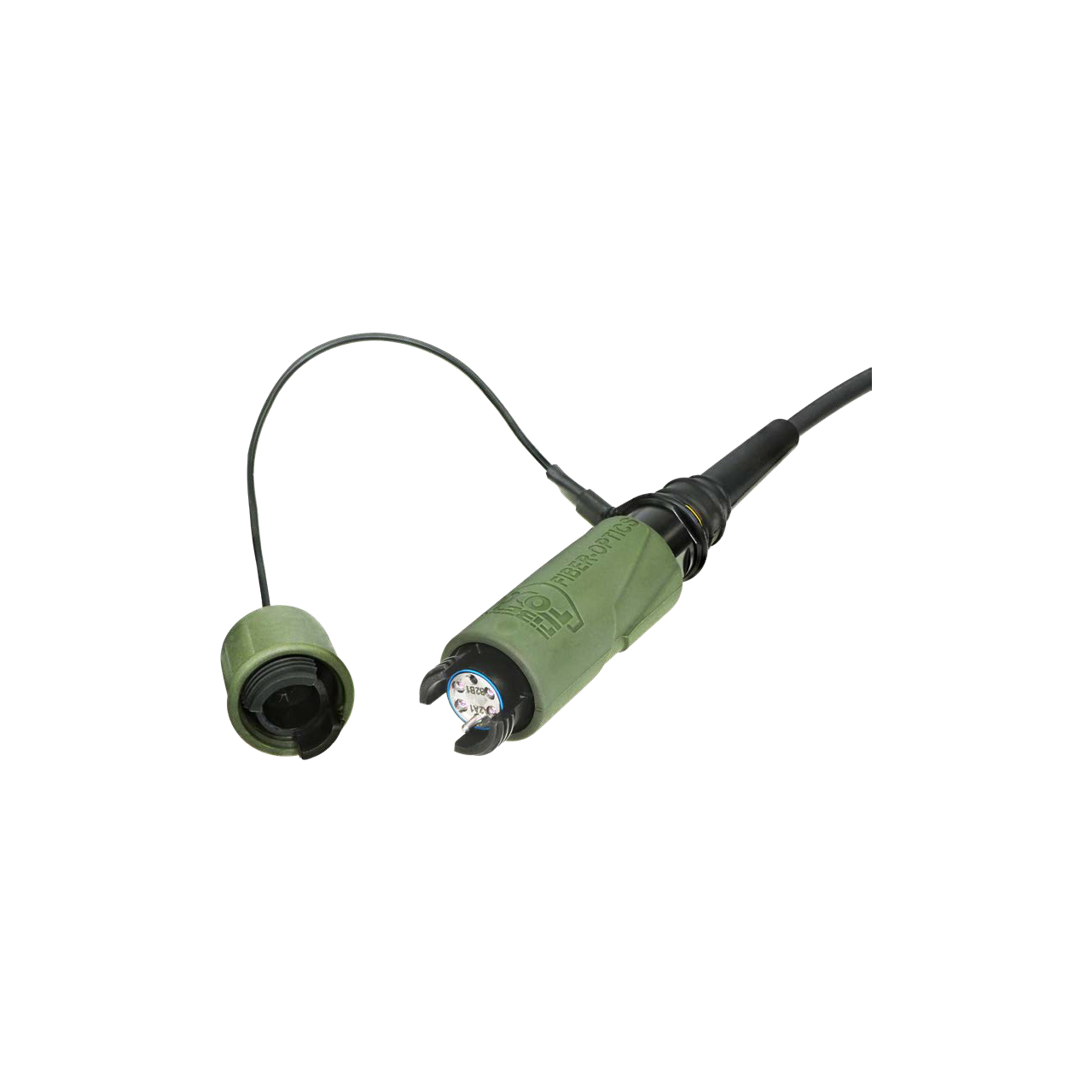

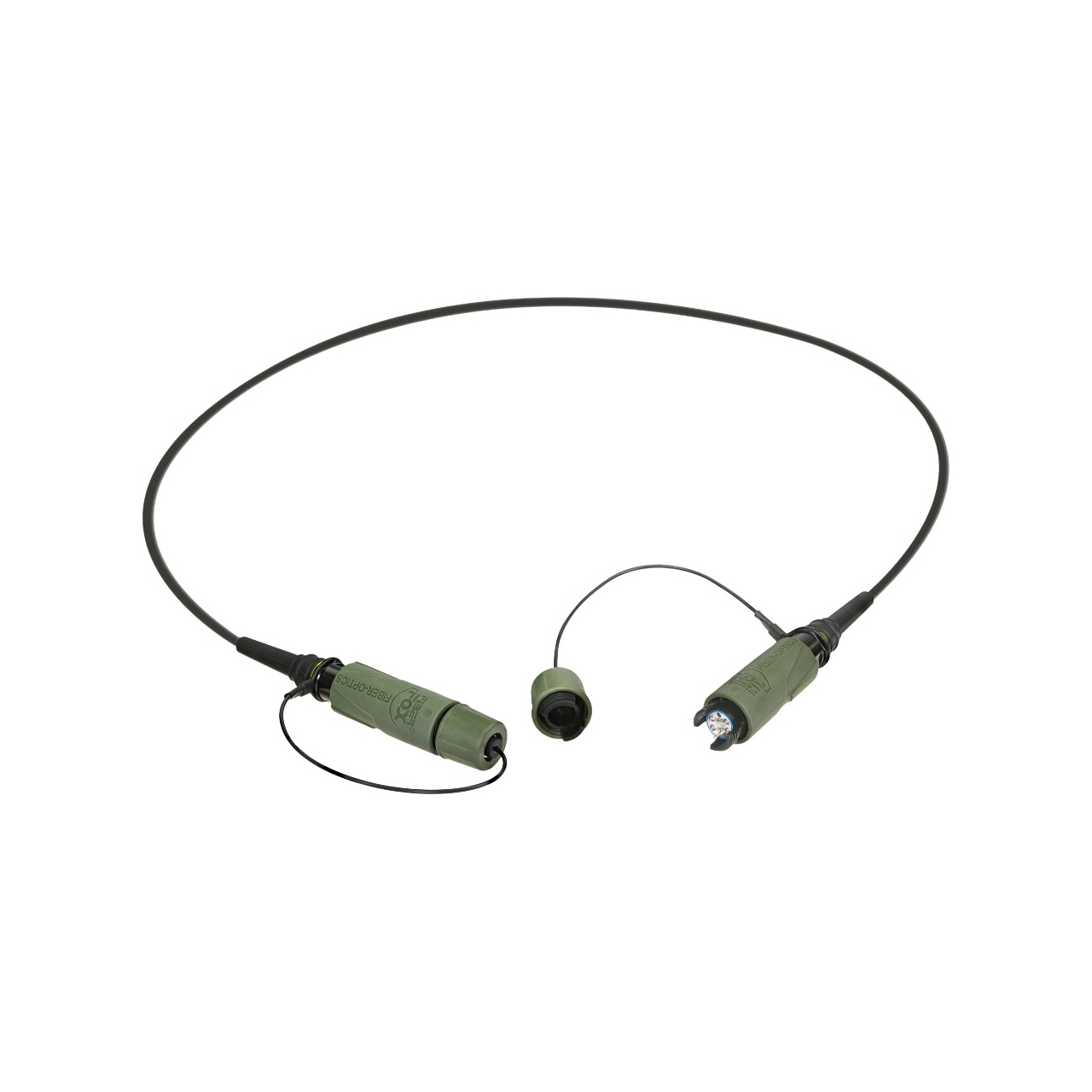

This Camplex FIBERFOX XBG04M Series cable assembly is a 50-foot, 4-channel OM3 Multimode fiber solution built for demanding environments. It features rugged Neutrik FIBERFOX EBC25 expanded beam connectors, offering exceptional resilience against dust, dirt, and liquids, meeting MIL-DTL-83526 standards. The expanded beam technology ensures reliable performance in harsh settings like outdoor productions and industrial Ethernet networks. Its PUR flame-retardant jacket, direct extendability, and easy cleaning with water make it a robust choice for challenging applications.
$1608.95
Owner Satisfaction
4.8
/ 5
Category Rank
2
/ 6542
#2 in Network Cables
Price vs Category Average
+349%
Above average
Fiber Type
50125
/ Multimode (µm Core / µm Cladding)
Who it's for
- Field technicians working in dusty or wet outdoor environments
- Broadcast professionals requiring high-speed data for demanding video links
- Production crews needing low-maintenance gear for long-term reliability
Who should skip it
- Budget-conscious buyers seeking affordable standard fiber solutions
- Engineers planning extremely long-distance fiber optic network runs
- Users relying on standard LC or SC infrastructure equipment
Performance breakdown
Environmental Resilience
Expanded beam technology thrives in the harshest outdoor and industrial conditions.
Connector Durability
Neutrik FIBERFOX hardware handles 10,000 mating cycles with ease.
Maintenance Ease
Simple water-based cleaning eliminates the need for complex fiber maintenance kits.
Signal Integrity
Reliable OM3 performance maintains high-speed data flow across all four channels.
Physical Robustness
Aramid yarn reinforcement provides exceptional tensile strength for demanding field deployments.
Deployment Versatility
Hermaphroditic connectors allow for direct, coupler-free extension in any setup.
Key Specs
Fiber Type
Multimode (50µm Core / 125µm Cladding)
Number of Fibers
4 Channels
Connector Type
EBC25 (Hermaphroditic)
Insertion Loss
Typical 1.5dB per Connection (Max 2.5dB)
Operating Temperature Range
-51°F to 160°F (-46°C to +71°C)
Flammability Rating
UL 94 V-0
Mating Cycles Lifetime
10,000 cycles
Tensile Strength
1,800N
Features
- High immunity to dust and liquid contamination
- Directly extendable without couplers
- Robust connectors withstand environmental impact
- Easy cleaning with water and lint-free cloth
- Excellent cable retention via aramid yarn
- PUR flame-retardant jacket material
- Compatible with MIL-DTL-83526 systems
- Rated IP68 when mated and unmated
What customers say
Professionals highly value the Camplex cable for its extreme ruggedness and reliability in mission-critical broadcast and live events. Users emphasize the superior performance of the Expanded Beam connectors, which significantly reduce maintenance issues because the connection resists dust and contamination better than traditional fiber. This durability translates directly into faster setups and fewer on-site failures, making the investment worthwhile. Reviewers consider this cable essential for harsh environments, noting its flawless 4-channel OM3 performance over 50 feet easily supports modern 4K demands. While acknowledged as a premium product, its exceptional value lies in preventing costly downtime, acting as crucial insurance for major productions.
Know before you buy
The EBC25 uses expanded beam technology, which projects the light signal across a gap rather than requiring physical contact between fiber ends. This design makes the connection significantly more resistant to dust, dirt, and moisture, which would typically cause signal loss in standard connectors.
Yes. Because these cables feature hermaphroditic connectors, they are directly extendable without the need for separate couplers or adapters. You can daisy-chain them to reach the required distance for your specific setup.
One of the main benefits of this system is its ease of maintenance. You can clean the connector face using clean water and a lint-free cloth, making it highly practical for outdoor or industrial environments where specialized cleaning kits may not be readily available.
Yes, it is built for harsh environments and carries an IP68 rating, meaning it is protected against dust and water immersion even when unmated. The PUR flame-retardant jacket and robust construction ensure it can withstand the elements and physical stress.
The cable has a typical insertion loss of 1.5dB per connection, with a maximum limit of 2.5dB. This is standard for high-durability expanded beam assemblies and is sufficient for most professional production and industrial networking applications.
While it is much more rugged than standard fiber, you should still avoid sharp bends or crushing the cable. However, thanks to the internal aramid yarn, it offers excellent cable retention and tensile strength, making it much more forgiving during deployment and retrieval.
