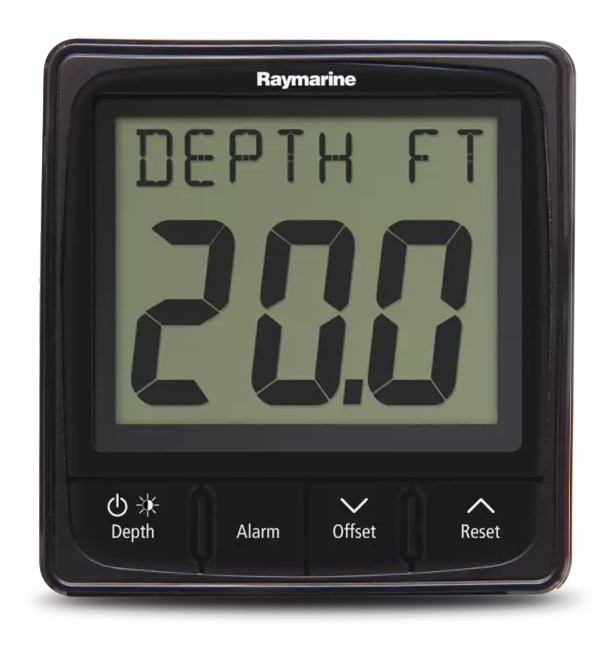

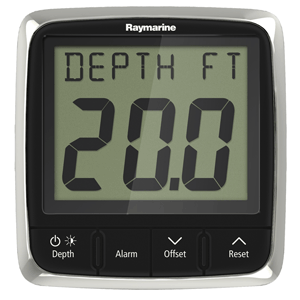

Raymarine i50 Depth Display
Best depth monitor for small powerboat and yacht owners.
The Raymarine i50 Depth Instrument Display is a dedicated instrument for smaller powerboats, yachts, and RIBs, offering accurate depth readings. It features a depth trend indicator, minimum/maximum depth, and audible alarms for shallow/deep water and anchors. Designed to complement Raymarine's multifunction displays, it boasts extra-large numerals, razor-sharp LCDs with red backlighting for excellent visibility in all conditions, and large push-button controls. It offers SeaTalk, SeaTalk ng, and NMEA 2000 compatibility, a built-in transducer interface, and low power consumption for efficient operation.
$229.95
Owner Satisfaction
4.7
/ 5
Category Rank
4
/ 167
#4 in Fish Finders
Price vs Category Average
-78%
Below average
Display
1.1
/ High-contrast monochrome LCD with " digits, red backlighting
Who it's for
- Sailors needing clear visibility in all lighting conditions
- Boaters building a cohesive Raymarine instrument network
- DIY installers seeking straightforward mounting and setup
Who should skip it
- Captains wanting an all-in-one data dashboard
- Owners mixing brands who prefer universal connectivity
- Design-conscious skippers upgrading to modern, sleek cockpits
Performance breakdown
Visibility
Extra-large digits and red backlighting ensure clarity in any lighting condition.
Networking Versatility
Seamless integration with SeaTalk and NMEA 2000 systems simplifies complex setups.
Upgrade Compatibility
Matches the ST60+ footprint for a painless, drop-in dashboard replacement.
Power Efficiency
Minimal power draw preserves battery life for extended time on water.
Durability
IPX6 water protection handles harsh marine environments with rugged reliability.
Operational Simplicity
Large push-button controls allow for easy adjustments even in choppy seas.
Key Specs
Display
High-contrast monochrome LCD with 1.1" digits, red backlighting
Nominal Voltage
12V DC
Operating Voltage
10 - 16V DC
Power Consumption
Less than 1 W (display only) / 2.4 W max. (with transducer)
Water Protection
IPX6
Connections
2 x SeaTalk ng, transducer compatible
Dimensions
109.22mm x 114.832mm
Weight
0.75 KGS
Features
- Accurate depth, max, and min depth readings
- Audible shallow/deep water and anchor alarms
- Large, high-contrast LCD with red backlighting
- SeaTalkng and SeaTalk-1 networking flexibility
- Complements Raymarine's modern display systems
- Identical footprint to ST60+ for easy upgrades
- Built-in depth transducer connection
- Low power consumption
What customers say
The Raymarine i50 Depth Display earns high praise for its exceptional reliability and superior build quality. Users consistently highlight the large, clear digits and excellent contrast, ensuring outstanding readability in all lighting conditions, day or night. Its robust, marine grade construction inspires confidence regarding longevity in harsh saltwater settings. Integration is another major benefit, as boaters appreciate the straightforward compatibility with SeaTalkNG and NMEA 2000 networks. While positioned at a premium price, the consensus is that the investment is justified by the instrument's accuracy and dependable performance. It is widely regarded as a top tier, essential piece of navigational equipment.
Know before you buy
Yes, the i50 features an identical mounting footprint to the legacy ST60+ series, making it a direct drop-in replacement for easy upgrades.
No, the i50 Depth Display features a built-in transducer interface, allowing you to connect your depth transducer directly to the back of the unit.
Yes, the i50 is fully compatible with SeaTalkng and NMEA 2000 networks, allowing it to share data seamlessly with your other onboard electronics.
The display is designed for excellent visibility in all conditions, featuring a high-contrast monochrome LCD with adjustable red backlighting to preserve your night vision.
Yes, the i50 is versatile and can be configured to function as either a standalone master instrument or as a repeater for depth data coming from another networked display.
The unit includes audible alarms for shallow water, deep water, and anchor watch, helping you maintain awareness of your surroundings and vessel safety.
Still have a question?
Ask Hayley anything about this product before you decide.
Ready to buy?
$230
