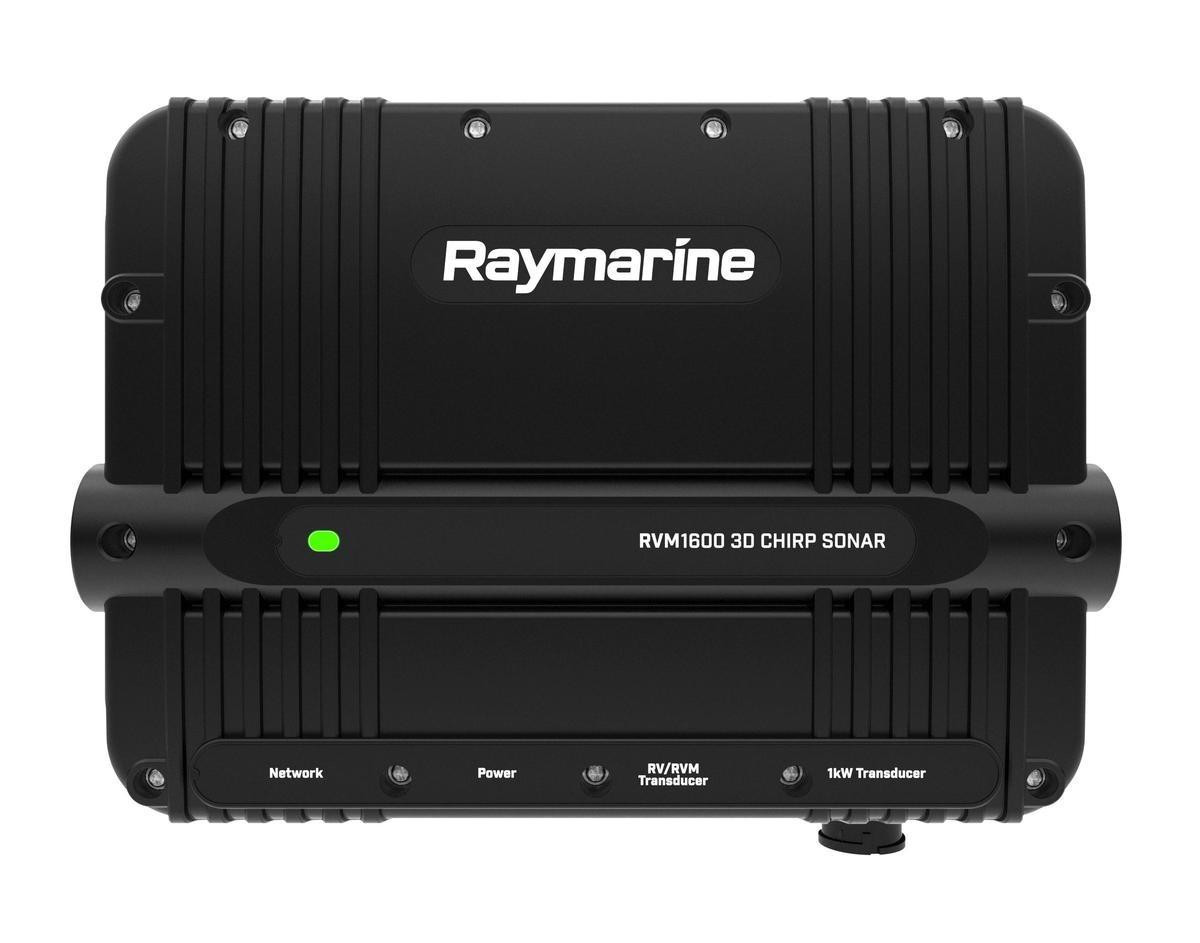

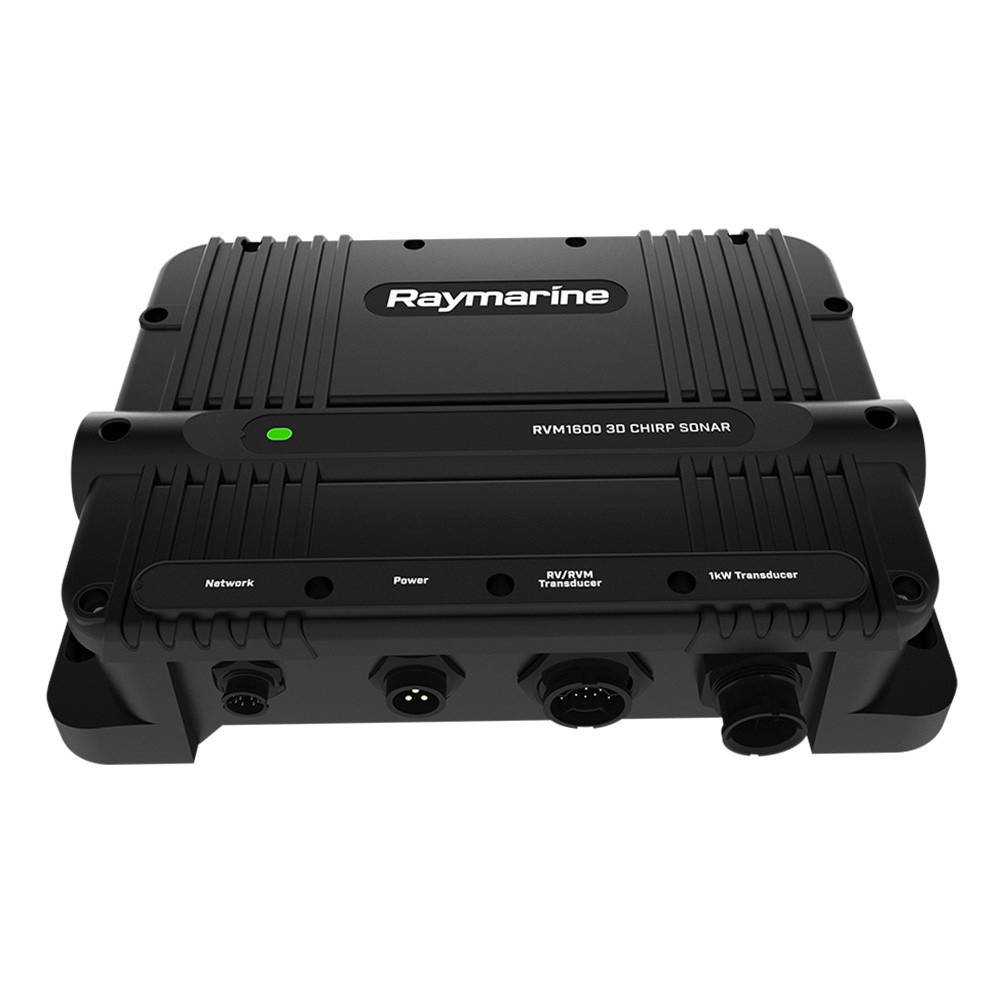

Raymarine RVM1600 Sonar Module with RealVision MAX
Best sonar upgrade for serious anglers seeking professional-grade underwater clarity.
Experience the next generation of sonar with the Raymarine RVM1600 Sonar Module. Featuring RealVision MAX technology, it delivers incredibly vivid sonar imagery and precise fish target identification. This module boasts high-performance RealVision CHIRP transducers with enhanced power for extended range and advanced signal processing for superior clarity. It supports multiple sonar channels, including CHIRP, Side, Down, and RealVision, providing a comprehensive underwater view. Network compatible with Axiom displays, it's an essential tool for serious anglers seeking to identify structure and elusive fish with ease.
$1539.99
More RVM Options
Owner Satisfaction
4.6
/ 5
Category Rank
68
/ 167
#68 in Fish Finders
Price vs Category Average
+51%
Above average
Sonar Technology
3600
/ CHIRP DownVision, CHIRP SideVision, RealVision MAX D, -Watt High CHIRP
Who it's for
- Anglers demanding superior underwater clarity and target separation
- Versatile fishermen targeting both shallow and deep-water species
- Boat owners seeking a clean, clutter-free helm station
Who should skip it
- Budget-conscious boaters wary of high-end equipment costs
- Owners unwilling to replace existing compatible transducers
- DIY installers preferring simple, all-in-one sonar solutions
Performance breakdown
Imaging Clarity
RealVision MAX technology delivers near-photographic detail of underwater structures.
Depth Performance
Reliable target identification at depths reaching up to 3,000 feet.
System Integration
Seamlessly networks with Axiom displays for a unified cockpit experience.
Sonar Versatility
Comprehensive channel support covers every angle from side to down.
Image Stabilization
Built-in AHRS sensors keep 3D sonar views steady in choppy water.
Target Separation
Advanced signal processing makes distinguishing fish from debris remarkably simple.
Key Specs
Sonar Technology
CHIRP DownVision, CHIRP SideVision, RealVision MAX 3D, 600-Watt High CHIRP
Connectivity
RayNet network compatible
Transducer Features
Built-in attitude and heading reference system (AHRS), fast-response built-in water temperature sensor
Max Depth
Up to 3,000ft (914 meters)
Power Output
600-watt traditional CHIRP frequency
Included Accessories
Power cable, RayNet network cable, documentation, mounting screws
Brand
Raymarine
Weight
5.80 lbs
Features
- Next-gen RealVision MAX sonar for vivid imagery
- High-performance CHIRP transducers for extended range
- Enhanced signal processing for superior clarity
- High-contrast color palettes for easy identification
- Supports CHIRP, Side, Down, and RealVision channels
- Built-in AHRS for stabilized 3D sonar
- Fast water temperature sensor
- Photo-like DownVision and SideVision views
What customers say
The Raymarine RVM1600 Sonar Module earns high praise primarily for its exceptional image quality and clarity. Users consistently report that the RealVision MAX technology delivers a significant upgrade in resolution, making structure and bait identification remarkably easy with near photo-like detail, even in deep water. Another key strength is the seamless, intuitive integration with the Axiom display ecosystem, ensuring quick setup and immediate access to powerful features. While the performance is considered unmatched, the premium price point is a recurring consideration for some buyers regarding overall value. For serious mariners demanding top tier performance, this module is viewed as a critical competitive advantage.
Know before you buy
The RVM1600 is designed to integrate with Raymarine Axiom series displays. It connects via the RayNet network to provide high-resolution sonar data directly to your chartplotter.
The RVM1600 can reach depths of up to 3,000 feet (914 meters). This makes it suitable for both shallow coastal fishing and deeper offshore excursions.
The Attitude and Heading Reference System (AHRS) compensates for the movement of your boat, such as pitching and rolling. This stabilizes the 3D sonar imagery, ensuring the picture remains clear and accurate even in choppy water.
Yes, the RVM1600 requires compatible RealVision MAX transducers to utilize its full range of sonar channels, including CHIRP, Side, and DownVision. You can choose between transom-mount or thru-hull options depending on your boat's hull design.
Yes, the module supports simultaneous viewing of CHIRP, Side, Down, and RealVision channels. You can customize your Axiom display layout to monitor these different views side-by-side for a comprehensive look at the water column.
RealVision MAX offers enhanced signal processing and higher-contrast color palettes compared to previous generations. This results in sharper, photo-like imagery that makes it significantly easier to distinguish between fish, bait schools, and underwater structure.
