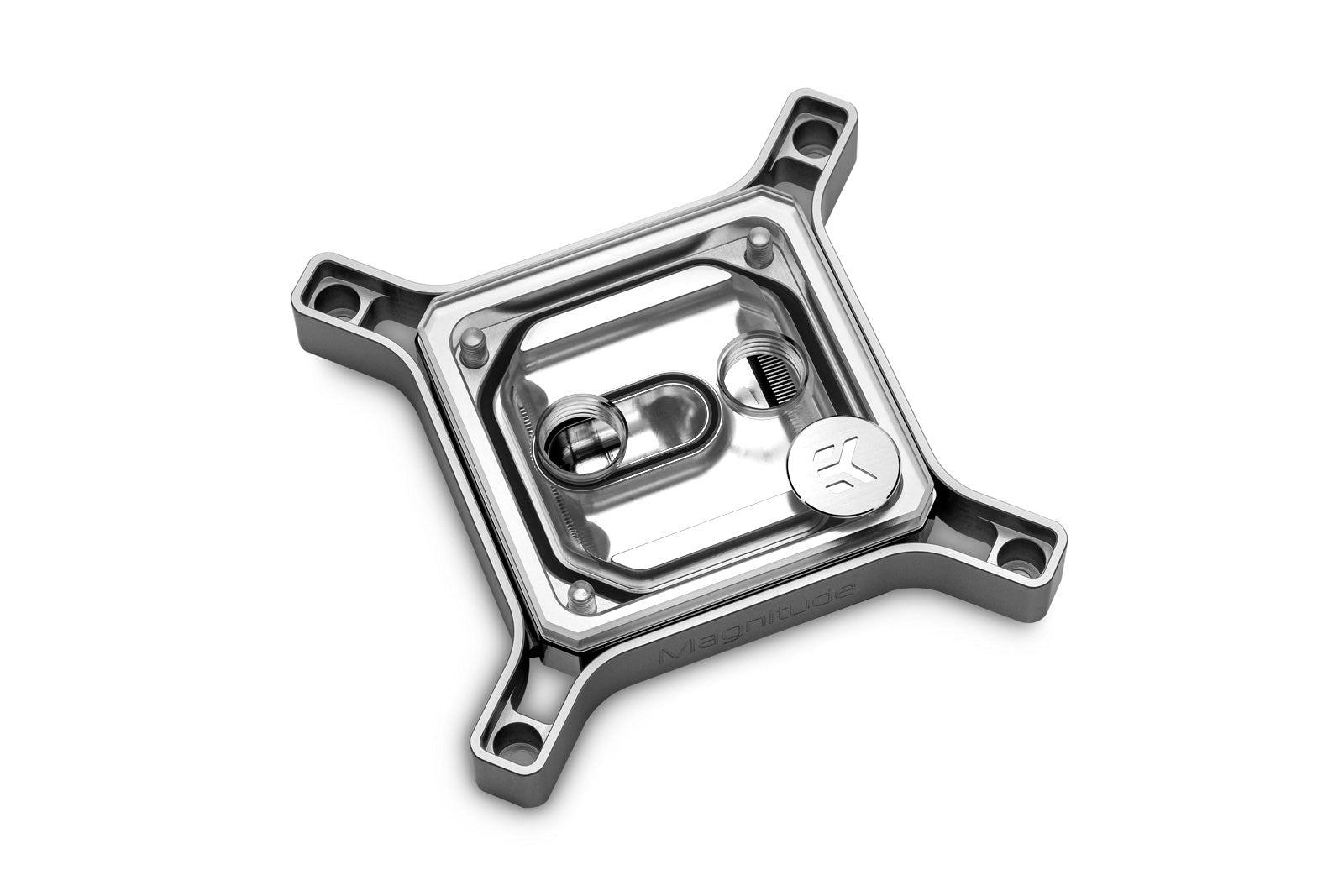

EK-Quantum Magnitude D-RGB - 20xx Nickel + Plexi
Best high-performance cooling for Intel HEDT 20xx enthusiast builds.
Experience unparalleled CPU cooling with the EK-Quantum Magnitude D-RGB, a bespoke water block engineered for Intel HEDT 20xx platforms. Its award-winning design features a CNC-machined nickel-plated copper cold plate and an acrylic top, maximizing thermal transfer through an enlarged fin array and fine microchannels. This block offers exceptional cooling performance with minimal flow restriction. It boasts 30 addressable D-RGB LEDs for stunning visual customization and allows for reversible port swapping. Included is an extra jet plate for fine-tuning CPU contact, ensuring optimal performance for demanding systems.
$195.95
Owner Satisfaction
4.5
/ 5
Category Rank
866
/ 3605
#866 in Computer System Cooling Parts
Price vs Category Average
+30%
Above average
Cold Plate Material
Nickel-plated copper
/ Nickel-plated copper
Who it's for
- Overclockers seeking maximum thermal efficiency for their high-end CPUs
- PC builders prioritizing aesthetic customization and premium visual impact
- Enthusiasts wanting precise mounting pressure and orientation flexibility
Who should skip it
- Budget-conscious builders looking for cost-effective cooling solutions
- Users preferring the simplicity and convenience of AIO coolers
- System upgraders planning to switch CPU platforms in the future
Performance breakdown
Thermal Efficiency
Enlarged fin array delivers top-tier heat dissipation for demanding HEDT processors.
Flow Dynamics
Engineered for minimal restriction to keep your custom loop running smoothly.
Build Quality
CNC-machined nickel-plated copper offers professional-grade durability and premium aesthetics.
Customization Potential
Adjustable jet plates allow for precise tuning of CPU contact pressure.
Visual Integration
Thirty addressable D-RGB LEDs provide vibrant, highly customizable lighting effects.
Installation Flexibility
Reversible port swapping simplifies complex tubing runs in tight custom builds.
Key Specs
Cold Plate Material
Nickel-plated copper
Top Material
High-grade glass-like acrylic
CPU Socket Compatibility
Intel LGA-2066, Intel LGA-2011(-3)
D-RGB Connector Standard
3-pin (+5V, Data, Blocked, Ground)
D-RGB Cable Length
50cm
Microchannel Width
0.40mm
Microfin Thickness
0.26mm
Cooling Type
Custom Loop Component
Features
- Bespoke design for Intel HEDT 20xx sockets
- Highest cooling performance, lowest flow restriction
- Award-winning CNC machined aesthetic
- Enlarged cooling engine with 50% bigger fin array
- 30 individually addressable D-RGB diodes
- Reversible insert for inlet/outlet port swapping
- Optimized cold plate for superior CPU contact
- Includes adjustable jet plate for fine-tuning
What customers say
This liquid cooling block is overwhelmingly praised for its premium design and exceptional build quality. Enthusiasts celebrate the striking visual presentation, highlighted by the unique mounting frame and vibrant addressable RGB lighting that integrates beautifully into high-end systems. The combination of high-grade nickel and clear plexi conveys a robust, flagship feel. While thermal dissipation is superb for demanding CPUs, the primary consideration is its luxury positioning. The significant cost means the purchase is driven by a desire for absolute aesthetic perfection and superior material quality rather than pure price to performance. Installation is generally straightforward, though RGB cable management requires attention.
Know before you buy
This water block is specifically engineered for Intel HEDT platforms, including LGA-2066 and LGA-2011(-3) sockets.
Yes, the internal insert is reversible, which allows you to swap the inlet and outlet ports to better suit your custom loop's tubing layout.
The additional jet plate allows you to fine-tune the water flow and pressure against the CPU cold plate, ensuring optimal thermal contact for your specific processor.
The block uses a standard 3-pin 5V addressable RGB header. You can connect it directly to your motherboard's D-RGB header or a compatible controller to sync the 30 integrated LEDs with your system's lighting.
The Magnitude is designed with a high-flow architecture that minimizes flow restriction, ensuring your pump doesn't have to work harder than necessary to maintain efficient cooling.
The top is crafted from high-grade, glass-like acrylic that is designed for longevity in custom cooling loops. However, you should avoid using aggressive cleaning agents or alcohol-based coolants, which can cause the material to crack over time.
Still have a question?
Ask Hayley anything about this product before you decide.
Ready to buy?
$196
