Bykski

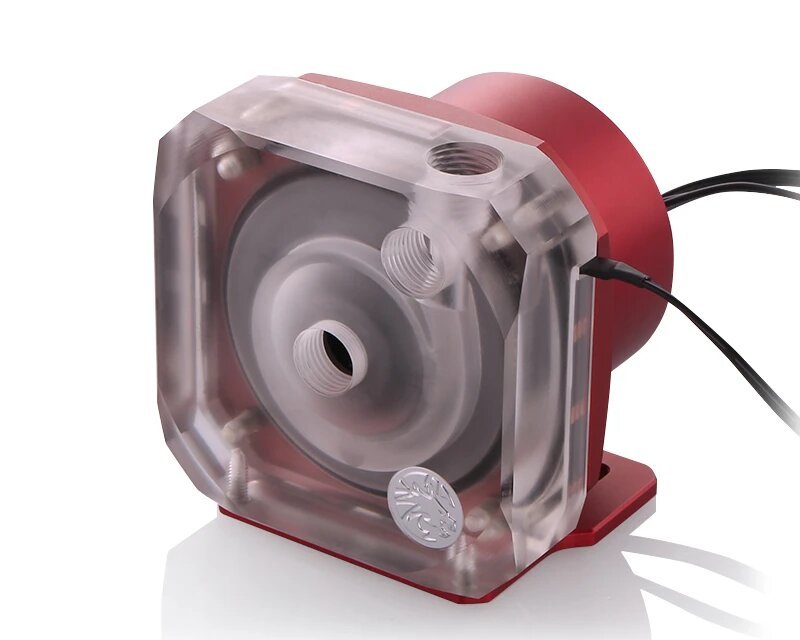

Bykski PMS5 Liquid Cooling 12V Pump - PWM Enabled Version 2 - Red Mount
Elevate your custom liquid cooling setup with the Bykski PMS5 12V Pump Motor. This high-reliability pump delivers robust pressure for high-flow systems and features convenient PWM speed control for dynamic management. Its innovative design boasts a single moving part—a magnetically driven impeller on a ceramic bearing—ensuring extended lifespan and minimal maintenance. The pump operates on a standard 12V DC power source and utilizes a 4-pin PWM connector for seamless integration with your system's fan control. For optimal longevity, always use de-mineralized water with anti-fungal additives.
$99.99
Owner Satisfaction
4.4
/ 5
Category Rank
2028
/ 3597
#2028 in Computer System Cooling Parts
Price vs Category Average
-34%
Below average
Maximum Head
3.812.4
/ m ( ft)
Who it's for
- Precise PWM Speed Control
- Competitive Price-to-Performance Ratio
- Robust and Versatile Mounting
Who should skip it
- Potential for High Noise at Max RPM
- Variable Long-Term Reliability
- Fixed Aesthetic Limitation
Key Specs
Maximum Head
3.8 m (12.4 ft)
Maximum Speed
4800 RPM
Power
12V / TDP 23W
Voltage Range
8V-24V
Control Interface
4-Pin PWM
Maximum Discharge
1500 LPH (396.26 GPH)
Top Material
PMMA
Dimensions
80mm x 83.5mm x 84.6mm
Features
- PWM speed control for dynamic adjustment
- High pressure output for high-flow systems
- Single moving part design for extended life
- Magnetically driven impeller on ceramic bearing
- Runs on convenient 12 Volts DC power
- No maintenance with proper coolant use
- High reliability industrial pump design
- Includes mounting system (Version 2)
What customers say
The Bykski PMS5 V2 pump earns high praise for delivering exceptional value and performance. Users consistently appreciate the flexible PWM control, enabling near silent operation at low speeds while providing robust flow for demanding custom loops. Its performance often rivals more expensive units. While the pump is powerful, some users note increased noise when running at maximum duty cycles, making the PWM feature essential for acoustic comfort. Overall, this component is highly recommended for builders seeking premium features and strong flow capacity without a premium price tag, offering outstanding functionality for budget-conscious performance systems.
