Alphacool

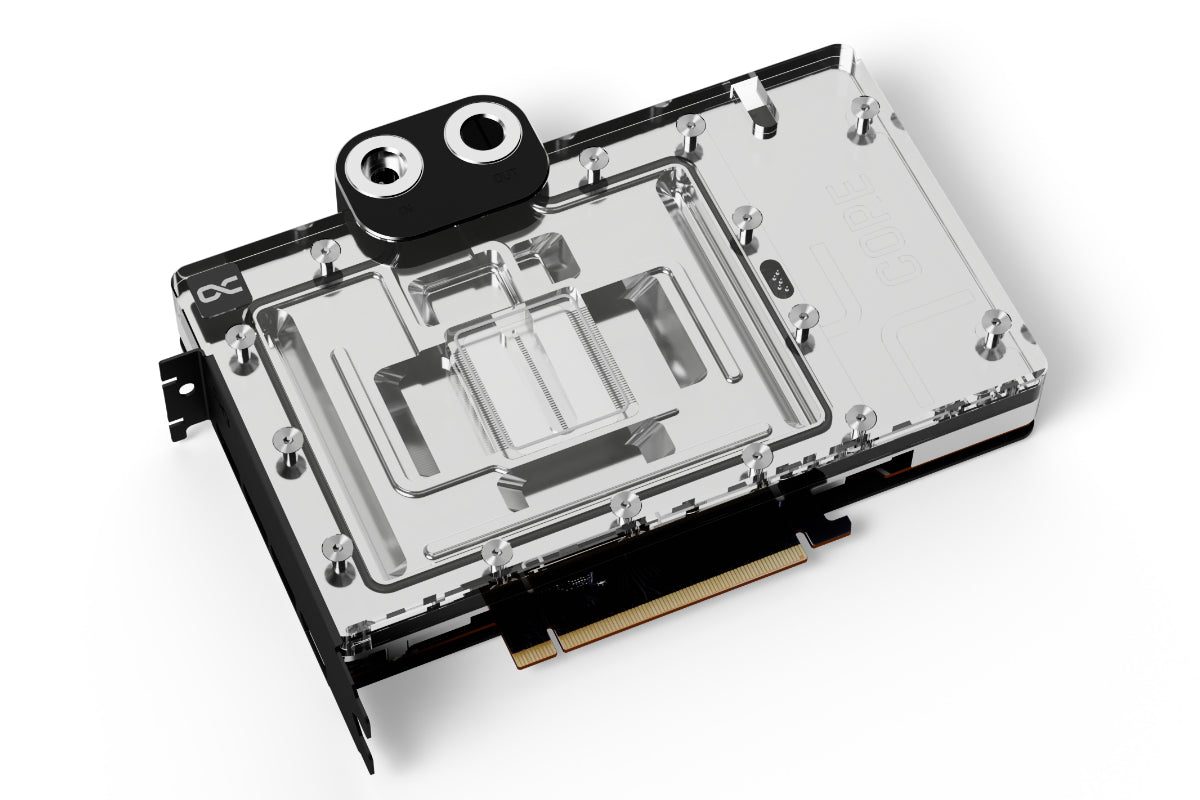

Alphacool Core Geforce RTX 4090 Founders Edition with Backplate
Best custom cooling solution for high-performance graphics card enthusiasts.
Experience superior cooling with the Alphacool Core Geforce RTX 4090 Founders Edition Water Block. Designed for the Core series' signature quality and performance, this block features a precision-milled copper cooler with a hard chrome finish. Its integrated G1/4 threads and aluminum backplate offer a sleek, unified look. Enhanced internal design optimizes water flow and heat dissipation, while digitally addressable RGB LEDs provide stunning illumination. High-conductivity thermal pads ensure maximum contact and thermal transfer for your high-performance GPU.
$174.99
Owner Satisfaction
4.7
/ 5
Category Rank
152
/ 3605
#152 in Computer System Cooling Parts
Price vs Category Average
+16%
Above average
Cooler Material
Chrome-plated copper
/ Chrome-plated copper
Who it's for
- Overclockers seeking maximum thermal headroom and stable performance
- Aesthetic-focused builders wanting premium materials and structural support
- Silent PC enthusiasts tired of loud stock fan noise
Who should skip it
- Small-form-factor builders concerned about tight clearance and tubing constraints
- Beginners uncomfortable with voiding warranties and delicate hardware assembly
- Budget-conscious users without an existing custom liquid cooling loop
Performance breakdown
Thermal Dissipation
Chrome-plated copper base ensures rapid heat transfer for peak GPU performance.
Flow Efficiency
Optimized internal channels minimize resistance for consistent coolant circulation.
Build Quality
Precision-milled materials offer a robust, premium feel for custom loops.
Aesthetic Integration
Sleek aluminum backplate and addressable lighting create a unified visual profile.
Installation Complexity
Requires careful handling and custom loop expertise for a successful setup.
Thermal Contact
High-conductivity pads provide excellent interface coverage across critical board components.
Key Specs
Cooler Material
Chrome-plated copper
Backplate Material
Aluminum
Cooler Dimensions
208.87 x 148.69 x 32.33mm
Backplate Dimensions
208.87 x 125.69 x 5.76mm
Illumination
12 digital aRGB LEDs (3-Pin JST connector)
Cooling Fins Thickness
0.4mm
Cooling Fins Distance
0.4mm
Threads
4 x G1/4
Features
- High-quality chrome-plated copper base
- Includes matching aluminum backplate
- Digitally addressable RGB lighting
- Optimized cooling performance for RTX 4090 FE
- Redesigned jet plate for improved thermal transfer
- Increased cooling surface area
- Optimized water flow path
- High-conductivity thermal pads included
What customers say
Enthusiasts overwhelmingly praise the Alphacool Core water block for its exceptional thermal performance, delivering significant temperature drops even with heavy overclocking. Users value the clean, industrial design and the high quality of materials, including the nickel plated copper and robust backplate. The full coverage cooling effectively manages the GPU core, VRAM, and VRMs, ensuring stable boost clocks. While installation requires careful attention, the resulting performance gains and silent operation make the effort worthwhile. This block is viewed as a premium, high-performing solution perfectly complementing the flagship 4090 GPU for serious custom loop builders.
Know before you buy
No, this specific model is designed exclusively for the Nvidia GeForce RTX 4090 Founders Edition PCB layout. It will not fit custom AIB cards from manufacturers like ASUS, MSI, or Gigabyte.
The aluminum backplate is both functional and aesthetic. It provides structural rigidity to prevent GPU sag and assists in passive heat dissipation for the components located on the rear of the PCB.
The block features 12 digitally addressable RGB LEDs that use a standard 3-pin JST connector. You may need an adapter cable if your motherboard or controller uses the standard 5V 3-pin aRGB header.
No, the package includes high-conductivity thermal pads pre-cut to the correct dimensions for your RTX 4090 Founders Edition. You will only need to provide your own thermal paste for the GPU die.
The hard chrome plating helps prevent oxidation and corrosion over time, which is common in copper blocks. This finish ensures the cooling performance remains consistent and makes the internal channels easier to clean during routine loop maintenance.
Yes, the block is equipped with four standard G1/4 threads. This allows you to use almost any industry-standard compression or barb fitting for your custom loop.
