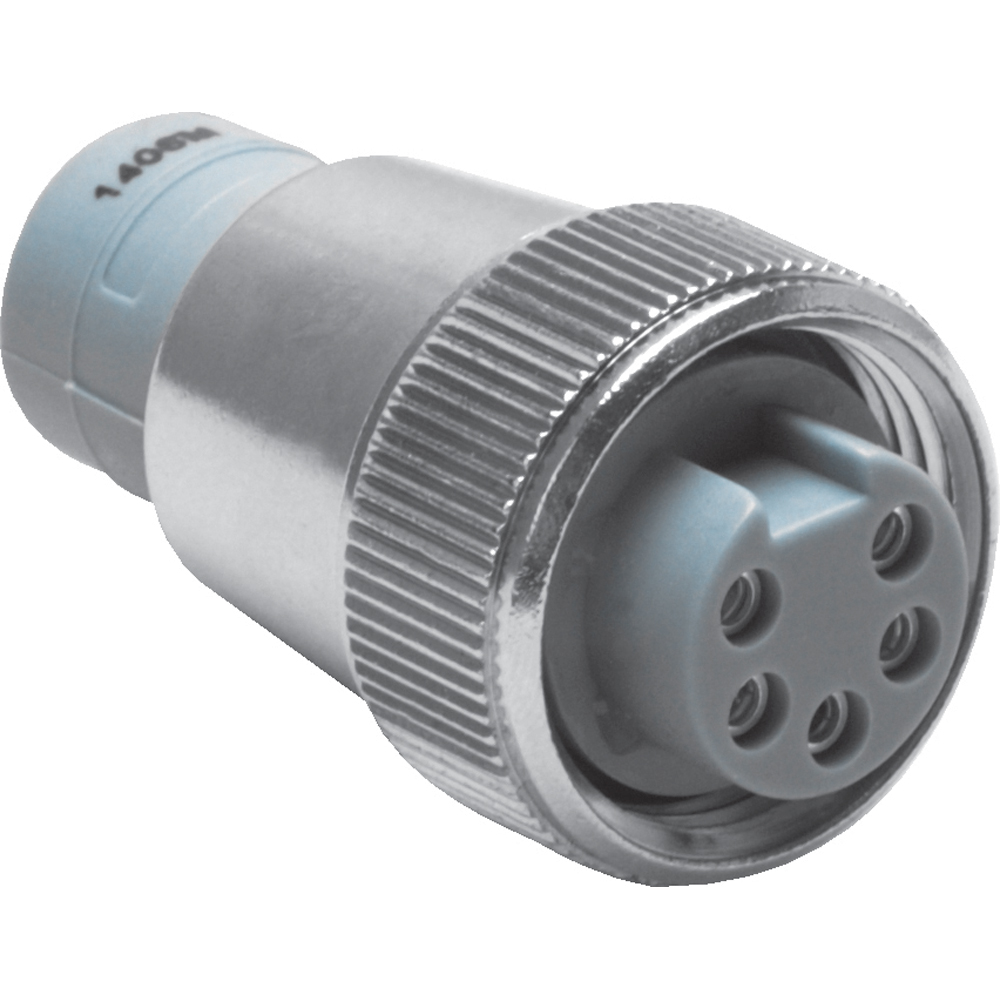

Maretron Mini Termination Resistor - Female
Best essential component for marine electronics technicians maintaining reliable network data.
Ensure your NMEA 2000 network runs smoothly with the Maretron Mini Termination Resistor. This essential component prevents signal reflections, guaranteeing reliable data communication and preventing errors. Its integrated LED provides a clear, visual confirmation that your network is properly terminated and functioning optimally. Designed for seamless integration into marine electronic systems, this compact resistor is vital for maintaining the integrity and performance of your vessel's network, offering peace of mind on the water.
Owner Satisfaction
4.6
/ 5
Category Rank
258
/ 413
#258 in Resistors
Resistor Value
120
/ Ohms
Who it's for
- System integrators demanding reliable, professional-grade network component compatibility
- Marine technicians ensuring stable NMEA 2000 network data communication
- Vessel owners requiring rugged, water-resistant hardware for harsh environments
Who should skip it
- Budget-conscious installers preferring standard, lower-cost Micro termination options
- Technicians working in tight spaces with limited routing clearance
- Installers using standard Micro-sized backbone cabling without extra adapters
Performance breakdown
Signal Integrity
Effectively eliminates data-corrupting reflections across your NMEA 2000 backbone.
Diagnostic Visibility
Integrated LED provides instant, reliable confirmation of active network termination.
Build Durability
Rugged construction withstands the harsh, corrosive realities of marine environments.
Installation Simplicity
Plug-and-play design allows for quick, tool-free integration into existing systems.
Electrical Precision
Non-inductive fixed resistor ensures exact 120-ohm impedance for stable communication.
Form Factor
Compact footprint fits easily into tight, crowded marine electronics consoles.
Key Specs
Resistor Value
120 Ohms
Application
NMEA 2000 Network Termination
Connector Type
Male
Feature
Integrated LED Status Indicator
Resistor Type
Fixed Resistor
Special Features
Non-Inductive
Application Area
High Frequency
Features
- Maintains NMEA 2000 network integrity
- Prevents signal reflection issues
- Visual LED confirms network status
- Ensures reliable data communication
- Compact and easy to install
- Designed for marine electronics
What customers say
Customers consistently praise the Maretron Mini Termination Resistor for its exceptional reliability and vital role in NMEA 2000 network integrity. Its robust construction and secure connection effectively prevent data corruption and communication errors, crucial in marine settings. Installation is straightforward and plug-and-play. Although the price is premium, users find the resulting network stability and peace of mind fully justify the cost. Those prioritizing dependable network performance express extremely high satisfaction, deeming it an essential component for a stable marine network.
Know before you buy
An NMEA 2000 network requires termination at both ends of the backbone to prevent signal reflections. Without these resistors, data packets can bounce back and cause communication errors or complete system failure.
The LED provides a quick visual diagnostic tool. When illuminated, it confirms that your network is properly powered and terminated, saving you from having to use a multimeter to verify the connection.
Yes, this is a standard 120-ohm resistor designed specifically for NMEA 2000 networks. It is compatible with any marine electronic system that follows the NMEA 2000 standard.
Every NMEA 2000 backbone requires exactly two termination resistors—one at each end of the main trunk cable. Adding more than two resistors can actually degrade signal quality.
This specific model is a female connector. Be sure to check the gender of the open port at the end of your backbone cable to ensure it matches before purchasing.
