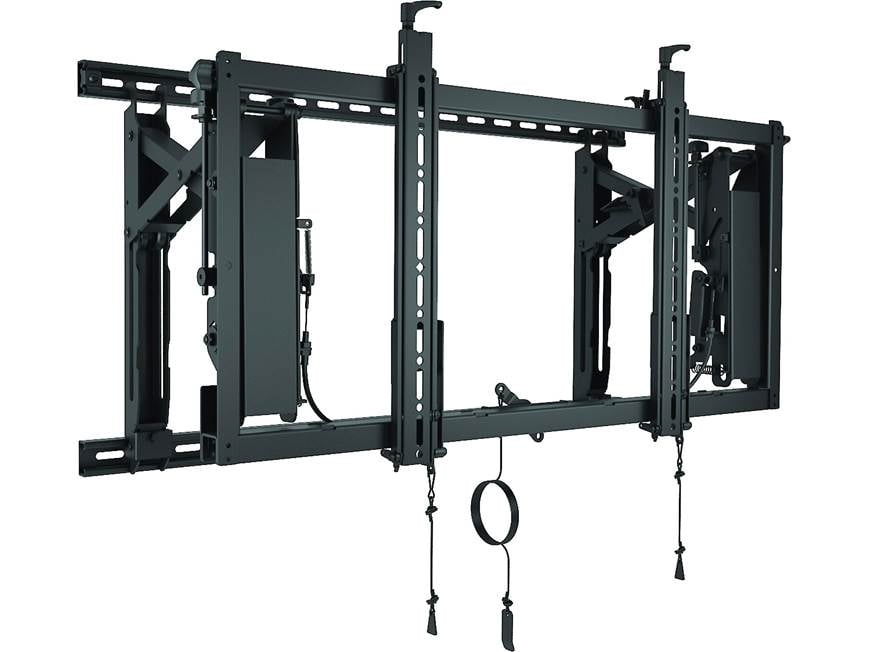

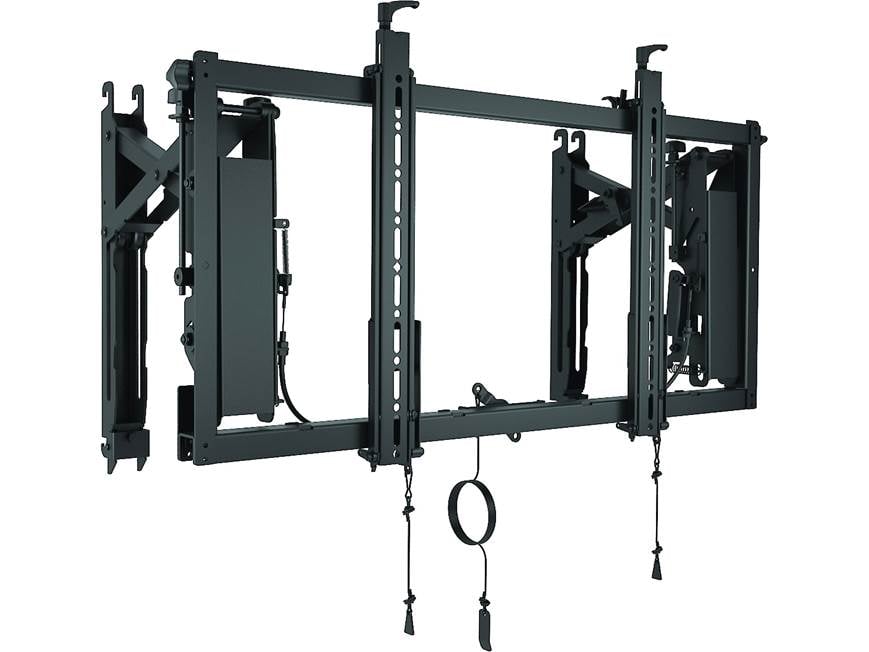

Chief LVS1UP ConnexSys Video Wall Display Mounting System with Rail
Best mounting system for professional video wall installers.
The Chief ConnexSys LVS1UP mounting system is engineered for efficient video wall installations and maintenance. It streamlines the process with quick row leveling via strut channel, eliminating horizontal spacers. This system offers precise alignment and easy servicing, featuring tool-free latching and six points of adjustment for perfect screen placement. Independent side adjustments compensate for wall imperfections, while the RapidDraw™ Display Release allows for remote screen pop-out access, ensuring displays remain securely locked until needed.
$944.00
Owner Satisfaction
4.7
/ 5
Category Rank
59
/ 1987
#59 in TV & Monitor Mounts
Price vs Category Average
+269%
Above average
Weight Capacity
150
/ lbs per mount
Who it's for
- Contractors requiring efficient, level mounting for large-scale installations
- Installers seeking seamless, perfectly aligned video wall displays
- Technicians needing fast, safe access for display maintenance
Who should skip it
- Novice installers without specialized training or mounting experience
- Budget-conscious buyers managing smaller or low-cost projects
- Teams lacking the manpower or wall reinforcement for heavy hardware
Performance breakdown
Installation Efficiency
Strut channel integration makes leveling large video walls remarkably fast and simple.
Alignment Precision
Six-point adjustment system ensures seamless, gap-free display alignment for professional results.
Service Accessibility
RapidDraw release and kickstand features provide effortless access for maintenance and repairs.
Structural Rigidity
Heavy-duty frame construction keeps large displays locked firmly in their position.
Wall Compatibility
Independent side adjustments easily compensate for uneven or imperfect wall surfaces.
Versatility
Broad VESA support and portrait orientation options accommodate diverse display configurations.
Key Specs
Weight Capacity
150 lbs per mount
Compatible Screen Sizes
40" to 80"
Maximum Extension
13.4 inches
Depth Adjustment Range
4" to 7.4"
Height Adjustment
± 1 inch
Tilt Range
+ 4.0°, - 2.5°
Mounting Pattern Compatibility
200 x 100 mm up to 800 x 400 mm
Compatible Strut Channel Size
Most 1-5/8" channel struts
Features
- Fast row leveling with strut channel
- Tool-free latching mechanism
- Six-point PowerZone™ adjustment
- Independent side adjustments for wall compensation
- Remote screen release for easy service

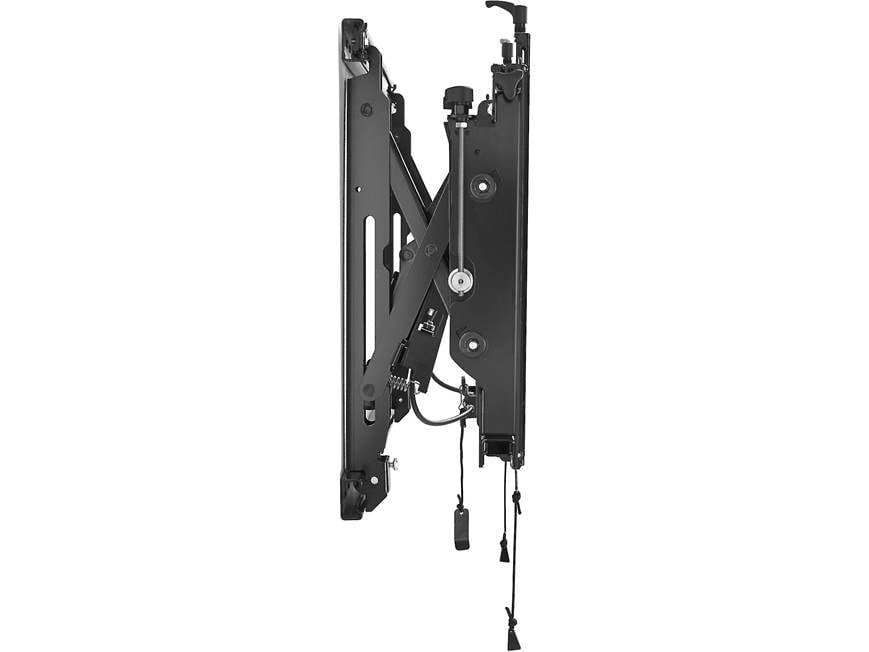

- Kickstand for 20° bottom tilt access
- Rigid frame maintains display position
- Supports portrait orientation
What customers say
Professional users overwhelmingly praise the Chief ConnexSys system for its exceptional precision and robust engineering, focusing on installation efficiency. Integrators value the intuitive tool-less micro-adjustment, which significantly streamlines display alignment and saves substantial labor time. The build quality is consistently described as reliable and durable, ensuring long term stability for commercial displays. A key benefit is the patented pop out mechanism, allowing quick, easy access for maintenance without disturbing the wall structure. While the initial investment is noted as high, the consensus is that the reliability and efficiency gains strongly justify the cost, making it a preferred solution for high end projects demanding flawless alignment.
Know before you buy
This mount is designed to support displays ranging from 40 to 80 inches, provided they fall within the 150-pound weight capacity and match the supported VESA patterns.
The strut channel allows you to mount multiple displays in a row without needing individual horizontal spacers. It provides a continuous rail for fast, accurate leveling across the entire video wall.
Yes, the system features a RapidDraw display release for remote pop-out access and a built-in kickstand that holds the display at a 20-degree tilt, giving you enough room to reach cables and connections.
Absolutely. The system includes six-point PowerZone adjustments and independent side adjustments specifically designed to compensate for wall imperfections, ensuring your screens align perfectly.

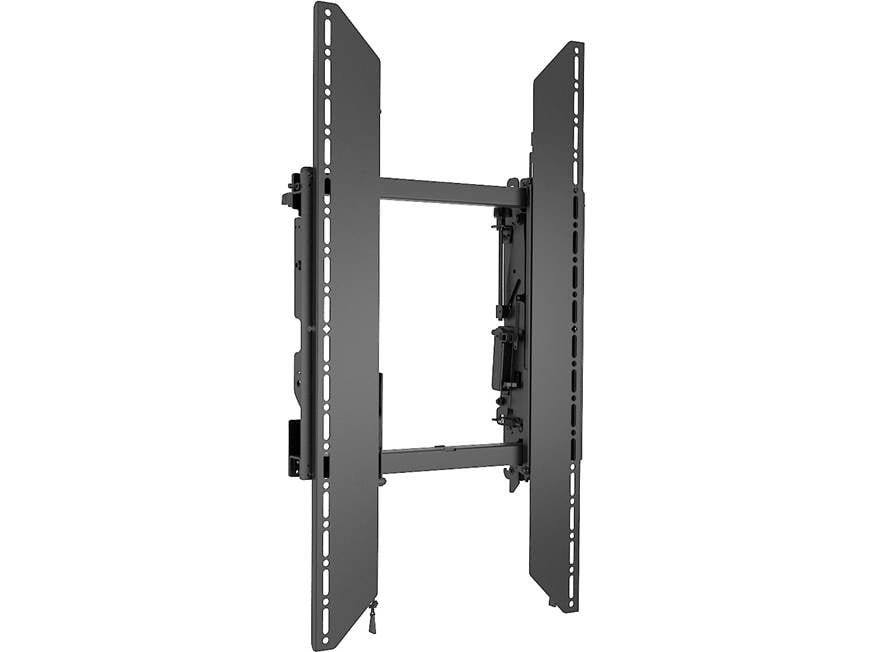

Yes, the ConnexSys LVS1UP is engineered to support portrait orientation, making it a versatile choice for creative video wall configurations.
When fully retracted, the mount sits at a minimum profile of 4.1 inches from the wall.
