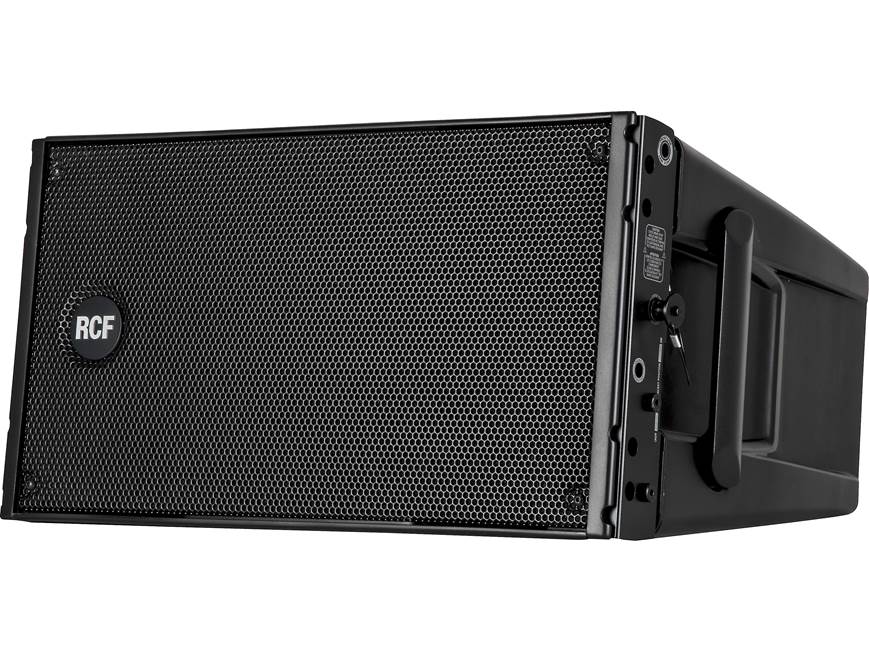

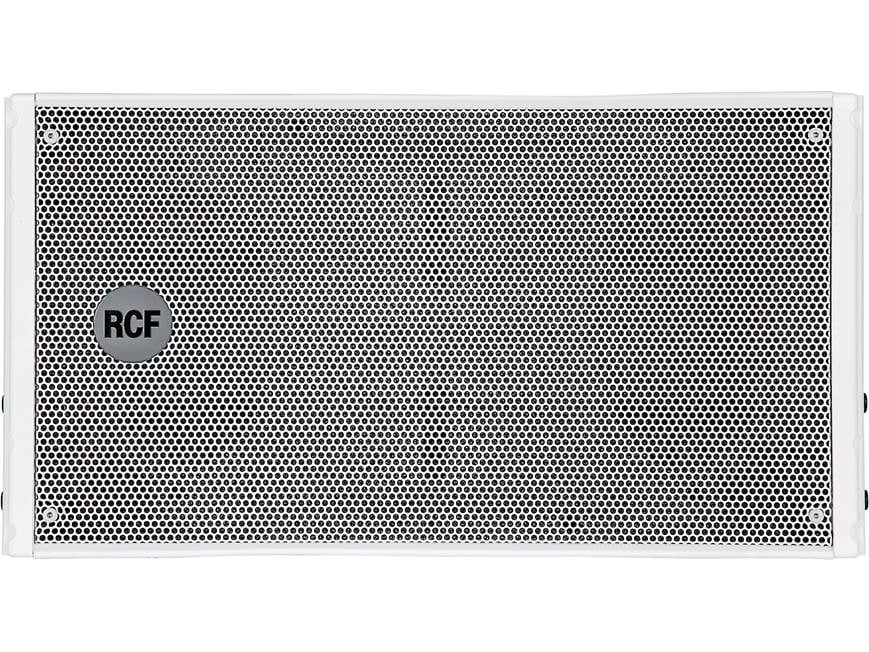

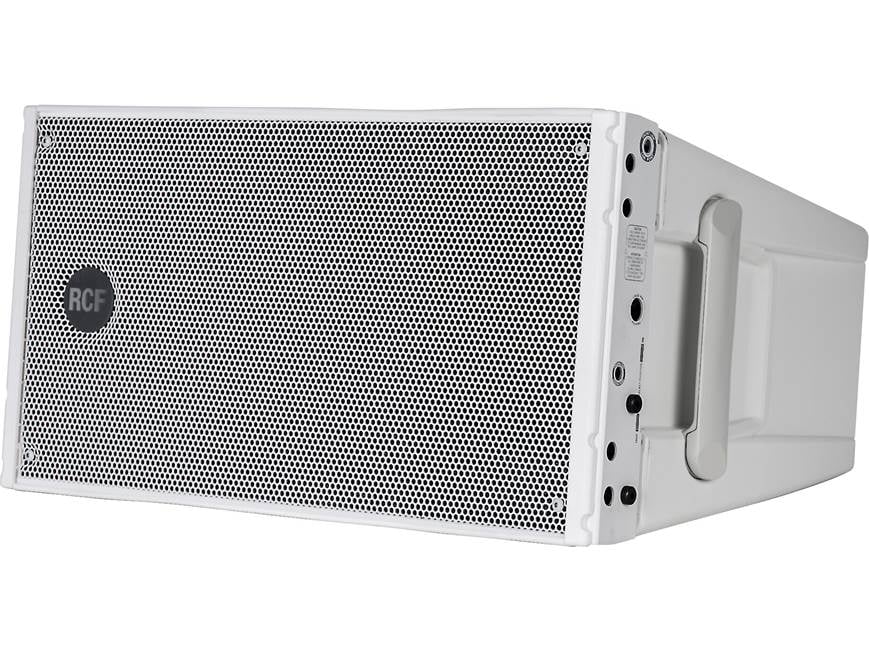

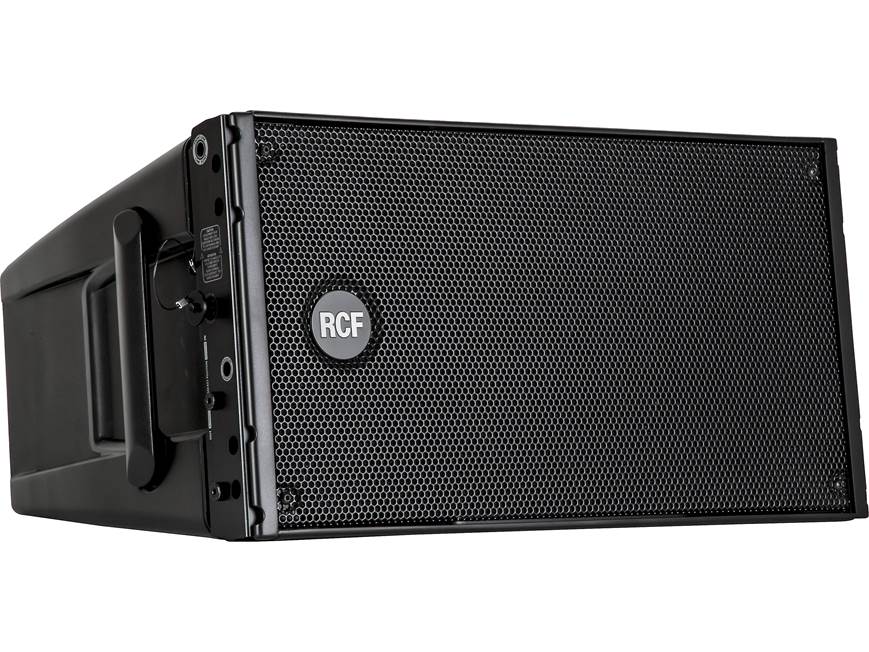

RCF HDL 10-A
Best active line array for professional sound in mid-sized venues.
The RCF HDL 10-A is a professional 2-way active line array module designed for live sound in small to medium venues, indoors or outdoors. It features two 8" woofers and a 2" compression driver, powered by an integrated 700W RMS Class-D amplifier. This speaker offers exceptional clarity and dispersion, enhanced by RCF's Shape Designer software for optimized acoustic performance. Its rugged, touring-ready enclosure and flexible mounting options, including flying and pole mounting, ensure easy integration into demanding professional audio setups.
$2199.00
More HDL Options
Owner Satisfaction
4.7
/ 5
Category Rank
501
/ 6561
#501 in Speakers
Price vs Category Average
+50%
Above average
Drivers per speaker
382
/ (Two " woofers, one " tweeter)
Who it's for
- Audio engineers prioritizing precise, natural sound reproduction
- Touring technicians needing fast, portable setup capabilities
- Production companies requiring high volume from compact gear
Who should skip it
- Budget-conscious buyers preferring external amplification systems
- Event planners needing full-range sound without additional subwoofers
- Large-scale venue operators requiring long-distance sound projection
Performance breakdown
Acoustic Output
High SPL capabilities deliver punchy, clear sound for mid-sized professional venues.
Dispersion Control
Wide horizontal coverage ensures consistent audio quality across the entire audience area.
Touring Durability
Rugged polypropylene enclosure stands up to the rigors of frequent transport.
System Integration
Shape Designer software makes complex array configurations intuitive and highly precise.
Amplification Efficiency
Integrated Class-D power provides reliable, high-headroom performance without unnecessary bulk.
Mounting Versatility
Flexible rigging options allow for seamless setup in diverse professional environments.
Key Specs
Drivers per speaker
3 (Two 8" woofers, one 2" tweeter)
RMS Power rating
700 watts
Peak Power rating
1400 watts
Frequency response
65 Hz - 20,000 Hz
Maximum SPL
133 dB at 1 meter
Coverage
100° horizontal, 15° vertical
Weight
44.9 lbs.
Dimensions
11.57"H x 22.4"W x 17.09"D
Features
- 2-way powered line array module
- Built-in 700W RMS Class D amplifier
- Superior efficiency via large format compression driver
- Shape Designer software for acoustic optimization
- Protection circuits guard against clipping and overheating
- Flexible mounting for flying, stacking, or pole use
- Controls for HF boost and indoor correction
- Rugged polypropylene enclosure built for touring
What customers say
Professionals highly value the RCF HDL 10-A for its superior acoustic performance packed into a portable design. Users consistently praise the exceptional clarity and impressive sound pressure level output, noting the sound quality surpasses expectations for its size. The integrated amplification and DSP ensure reliable, consistent sound reproduction requiring minimal setup. A key benefit is the intuitive rigging system, which significantly speeds up load in and load out times, a major advantage in demanding environments. While it requires dedicated subwoofers for deep bass, the system is regarded as an outstanding value due to its robust build and professional results. It is seen as a dependable workhorse that avoids the logistical challenges of larger arrays.
Know before you buy
The HDL 10-A is designed for small to medium-sized venues, both indoors and outdoors. Its 100-degree horizontal dispersion makes it effective for covering wide seating areas while maintaining clear, consistent audio.
No, the HDL 10-A is an active line array module. It features a built-in 700W RMS Class-D amplifier, so you only need to connect your audio signal and power.
You can use RCF’s Shape Designer software to calculate the optimal array configuration for your venue. Additionally, the speaker includes onboard controls for HF boost and indoor correction to help you fine-tune the output based on the acoustic environment.
Yes, the HDL 10-A supports flexible mounting options, including pole mounting. However, given its weight of nearly 45 pounds, ensure your stand is rated for professional line array modules.
The speaker is equipped with integrated protection circuits designed to guard against clipping and overheating. These safeguards help maintain performance reliability even during demanding, long-duration live sound applications.
The HDL 10-A has a frequency response of 65 Hz to 20,000 Hz. While it provides solid mid-range and high-frequency performance, you may want to pair it with a dedicated subwoofer for extended low-end response in larger setups.
