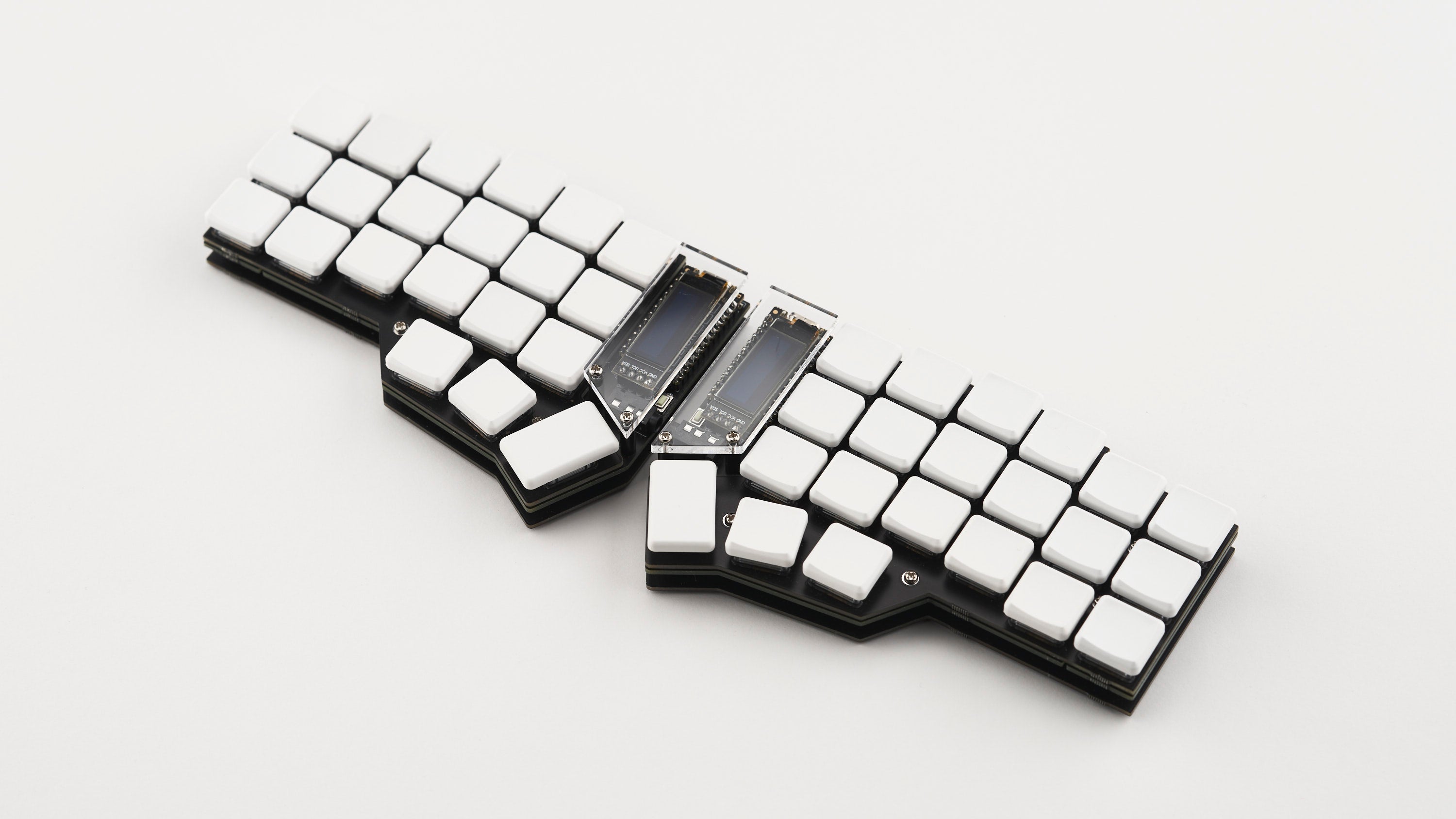

Corne DIY Keyboard Kit
Best ergonomic split keyboard for DIY enthusiasts seeking a custom build.
Assemble your own highly regarded Corne 40% split ergonomic keyboard with this comprehensive DIY kit. It features a solderable PCB (v3.6) and a minimalist, lightweight FR4 case, offering customization freedom for both beginners and experienced builders. The layout utilizes a columnar stagger for superior ergonomics. The PCB supports MX and Choc switches, per-key LEDs, underglow, and OLED screens. It is also wireless-ready with footprints for battery leads and a power switch, ensuring compatibility with ZMK firmware for clean BLE builds.
$36.00
Owner Satisfaction
4.6
/ 5
Category Rank
559
/ 3654
#559 in Keyboards
Price vs Category Average
-74%
Below average
PCB
3.6
/ Corne v Solderable
Who it's for
- Office workers seeking relief from repetitive strain injuries
- Power users needing highly efficient, personalized key mappings
- Minimalists wanting a clutter-free desk and travel-friendly gear
Who should skip it
- Beginners lacking experience with electronics assembly and soldering
- Typists who require a traditional layout for immediate productivity
- Budget-conscious shoppers looking for an all-inclusive keyboard package
Performance breakdown
Ergonomic Alignment
Columnar stagger layout significantly reduces wrist strain during extended typing sessions.
Build Versatility
Dual support for MX and Choc switches offers immense customization potential.
Assembly Accessibility
Solderable PCB requires steady hands but rewards builders with total control.
Firmware Flexibility
Broad compatibility with QMK, VIA, and ZMK ensures seamless software integration.
Aesthetic Minimalism
The FR4 case provides a sleek, industrial look without unnecessary bulk.
Wireless Potential
Integrated BLE footprints make transitioning to a clean wireless setup straightforward.
Key Specs
PCB
Corne v3.6 Solderable
Case Material
FR4
Switch Support
MX and Choc (including Choc v2)
Firmware Support
QMK, VIA, ZMK
Connection Type
Wired (USB-C) or Wireless-Ready (BLE)
Layout Style
3x5x5 Split Ergonomic
Controller Support
RP2040 compatible (optional component)
Key Switch Type
Mechanical
Features
- Highly ergonomic 40% split columnar layout
- Supports MX and Choc switches
- Wireless-Ready with BLE footprints
- Per-key LEDs, underglow, and OLED support
- Lightweight and cost-effective FR4 case
- Compatible with QMK, VIA, and ZMK firmware
- Customizable build options available
- Includes all necessary case hardware
What customers say
The Corne DIY Keyboard Kit earns high praise, especially for its superior ergonomics and customization potential. Users consistently report that the split, column staggered layout significantly reduces wrist strain, promoting a natural typing posture ideal for intensive typing. Boardsource is commended for supplying quality components and clear documentation, which aids the building process. While the kit demands intermediate soldering and firmware setup, the resulting highly personalized, high-performance tool delivers exceptional satisfaction. The compact layout's learning curve is quickly overcome by the efficiency gained once muscle memory develops.
Know before you buy
The Corne v3.6 is a great entry point for learning to solder. Because the components are through-hole and the layout is relatively compact, it is manageable for beginners, provided you have a decent soldering iron and some patience.
This kit includes the PCB and case hardware. To finish the build, you will need to purchase your own MX or Choc switches, keycaps, and a controller (such as an RP2040). If you plan to go wireless, you will also need to source compatible batteries.
The PCB supports both switch types, but you must choose one type for the entire build. The mounting holes and stabilizers are specific to the switch footprint, so you cannot mix MX and Choc switches on the same plate.
Unlike a traditional staggered keyboard, the Corne uses a columnar layout where keys are aligned in vertical rows. This design reduces finger travel and aligns better with the natural movement of your fingers, which can significantly improve comfort during long typing sessions.
The PCB is wireless-ready with footprints for a battery and power switch, but the battery itself is not included. You will need to purchase a compatible LiPo battery separately and ensure you flash the board with ZMK firmware to enable Bluetooth functionality.
Yes, the Corne is fully compatible with QMK, VIA, and ZMK firmware. VIA is particularly user-friendly, allowing you to remap keys and create custom layers through a simple graphical interface without needing to recompile code.
