Chief

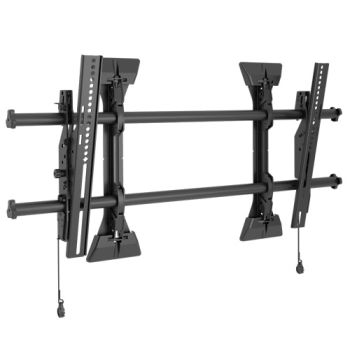

Chief Fusion Large Tilt Wall Mount
Best professional-grade mount for securely installing large flat-panel displays.
The Chief Fusion X-Large Tilt Wall Mount is an installer-inspired solution designed to simplify large flat panel installations while maintaining a low profile. It addresses common challenges with enhancements like added stability, faster setup, and improved lateral shift capabilities. Key features include Centerless Shift for precise post-installation centering and Centris low-profile tilt for balanced screen positioning. This mount ensures security with set screws and offers user convenience through integrated cable management and ClickConnect Latching for safe screen engagement. It is built to support large displays effectively and securely.
$234.99
Owner Satisfaction
4.5
/ 5
Category Rank
614
/ 1987
#614 in TV & Monitor Mounts
Price vs Category Average
-8%
Below average
Weight Capacity
250113.4
/ lbs ( kg)
Who it's for
- Technicians needing frequent access to rear cable ports
- Installers seeking a quick, perfectly aligned setup
- Owners protecting high-value, heavy display investments
Who should skip it
- Viewers requiring flexible screen positioning and swivel angles
- Budget-conscious buyers looking for basic mounting solutions
- Solo installers struggling with heavy, cumbersome hardware
Performance breakdown
Installation Efficiency
Installer-inspired features make mounting massive displays significantly faster and less frustrating.
Weight Capacity
Handles up to 250 pounds with ease, supporting the largest commercial displays.
Adjustment Precision
Centerless shift allows for perfect lateral alignment after the screen is mounted.
Tilt Versatility
Centris technology keeps heavy screens balanced while offering smooth, controlled tilt angles.
Security and Stability
ClickConnect latching and set screws provide professional-grade confidence for high-traffic environments.
Cable Management
Integrated channels keep bulky wiring organized for a clean, professional aesthetic.
Key Specs
Weight Capacity
250 lbs (113.4 kg)
Tilt Angle
+5°, -12°
Compatible Screen Sizes
55 - 100 inches
Maximum Depth
6 inches
Minimum Depth
2.5 inches (64 mm)
Lateral Shift
21.4" (542 mm)
Certifications
TAA Compliant, UL Listed, OSHPD Approved
Overall Dimensions
24.5" H x 42.75" W x 2.5" D
Features
- Installer-inspired design for easier large display mounting
- Centerless Shift for precise post-installation centering
- Centris low-profile tilt balances screen at its center of gravity
- ClickConnect Latching provides audible confirmation of screen lock
- Integrated cable management for a clean look
- Set screws ensure mount rigidity and security
- Nesting spacers allow for custom depth adjustment
- Quick-Store Cords for easy cord management
What customers say
Customer sentiment strongly favors the Chief Fusion Large Tilt Wall Mount for its exceptional build quality and installer friendly design. Users consistently describe the mount as robust and engineered for reliability, making it ideal for supporting large displays securely. Professionals particularly value features like the Q-Latch system and post installation leveling adjustments, which significantly save time and ensure precision. While the premium price point is noted, most agree the superior engineering and long term durability justify the investment, especially when compared to less dependable options. For those prioritizing safety and superior ease of installation over initial cost, this mount is considered the industry standard for high-end installations.
Know before you buy
Yes, this mount is designed for displays ranging from 55 to 100 inches and supports up to 250 pounds, making it well-suited for large-format screens.
The mount features ClickConnect Latching, which provides an audible click to confirm that your screen is safely engaged and locked onto the wall plate.
Yes, the Centerless Shift feature allows for precise lateral adjustments after installation, so you can perfectly center your display on the wall without needing to remount the bracket.
The mount has a low-profile design that sits just 2.5 inches from the wall at its minimum depth, though it can extend up to 6 inches depending on your specific setup and tilt requirements.
Yes, the Centris low-profile tilt mechanism allows you to tilt your screen between +5° and -12°, helping you achieve the optimal viewing angle while keeping the screen balanced at its center of gravity.
Yes, it supports a wide range of VESA mounting patterns, starting from 75 x 75 mm up to 600 x 400 mm.
