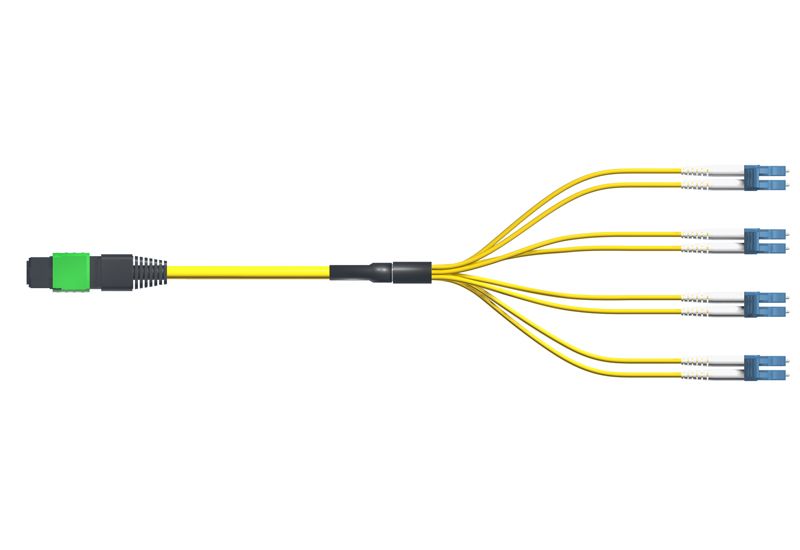

OptoSpan MBLC-FS208NXP01 OS2 Plenum MTP Fanout Cable w/FiberShield
Best high-durability fiber solution for demanding data center network installations.
This 150-meter, 8-fiber, single-mode OS2 MTP fanout cable is engineered for demanding indoor data center and network environments. It features genuine US Conec MTP connectors terminated to LC connectors, utilizing APC for superior performance in 40G/100G fiber links. The exclusive FiberShield design enhances durability with increased PVC jacket and DuPont Kevlar reinforcement, making it five times stronger than standard cables. Rated for plenum spaces, this robust cable ensures high reliability and quality tracking via serialization, supported by a comprehensive 10-year warranty.
Owner Satisfaction
4.7
/ 5
Category Rank
76
/ 6564
#76 in Network Cables
Fiber Mode
29125
/ Singlemode OS (/µm)
Who it's for
- Network architects planning for future high-bandwidth infrastructure needs
- IT managers maintaining cables in high-traffic or industrial environments
- Facility installers requiring strict adherence to building fire safety codes
Who should skip it
- Users managing short-range connections who prefer affordable multimode hardware
- Budget-conscious buyers seeking cost-effective solutions for basic networking
- Technicians working with limited space in tightly packed server racks
Performance breakdown
Structural Durability
FiberShield reinforcement provides exceptional protection against accidental cable damage.
Signal Integrity
APC connectors minimize back-reflection for high-speed 100G data transmission.
Installation Versatility
Plenum-rated jacket allows for safe deployment in critical air-handling spaces.
Deployment Efficiency
Pre-terminated design eliminates complex field splicing for immediate network connectivity.
Quality Assurance
Individual serialization ensures full traceability and long-term reliability for data centers.
Future-Proofing
OS2 single-mode fiber supports high-bandwidth upgrades well beyond current requirements.
Key Specs
Fiber Mode
Singlemode OS2 (9/125µm)
Length
150 Meters (492.13 feet)
Conductor Count
8 Fibers
Connector Type
MTP (Female) to LC
Jacket Rating
Plenum (CMP)
Data Rate Compatibility
10G/40G/100G
Shielding Type
STP (Shielded Twisted Pair)
Compliance
TIA-604-10 and IEC 61754-20
Know before you buy
FiberShield technology incorporates a reinforced PVC jacket and DuPont Kevlar strands, making the cable five times stronger than standard fiber optic cables. This added durability protects the internal glass fibers from crushing, pulling, and bending during installation in busy data center environments.
Yes, this cable is plenum-rated (CMP), meaning it meets strict fire safety standards for use in air-handling spaces like drop ceilings or raised floors. It is designed to limit flame spread and smoke production in the event of a fire.
The APC (Angled Physical Contact) connectors are designed for low-loss performance in high-speed 40G/100G links. Please ensure your existing equipment is compatible with APC-terminated connections, as they are not interchangeable with standard UPC (flat) connectors.
Each cable is individually serialized to ensure full quality control and traceability. This allows for easier network documentation and provides a reliable reference point should you need to utilize the 10-year warranty.
Yes, this OS2 single-mode cable is fully compatible with 10G, 40G, and 100G data rates. Its high-performance construction ensures the signal integrity required for these demanding high-speed applications.
