Orei

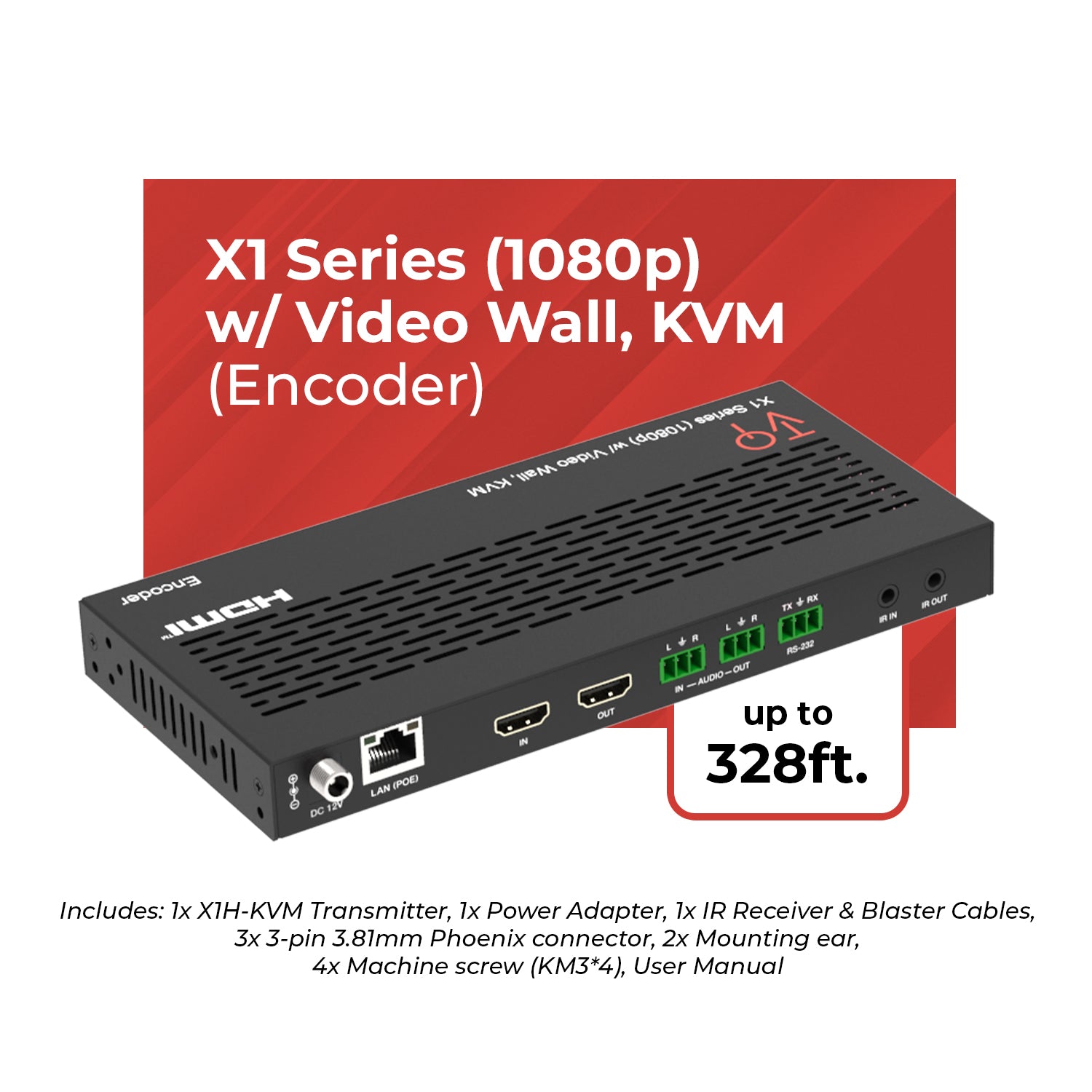

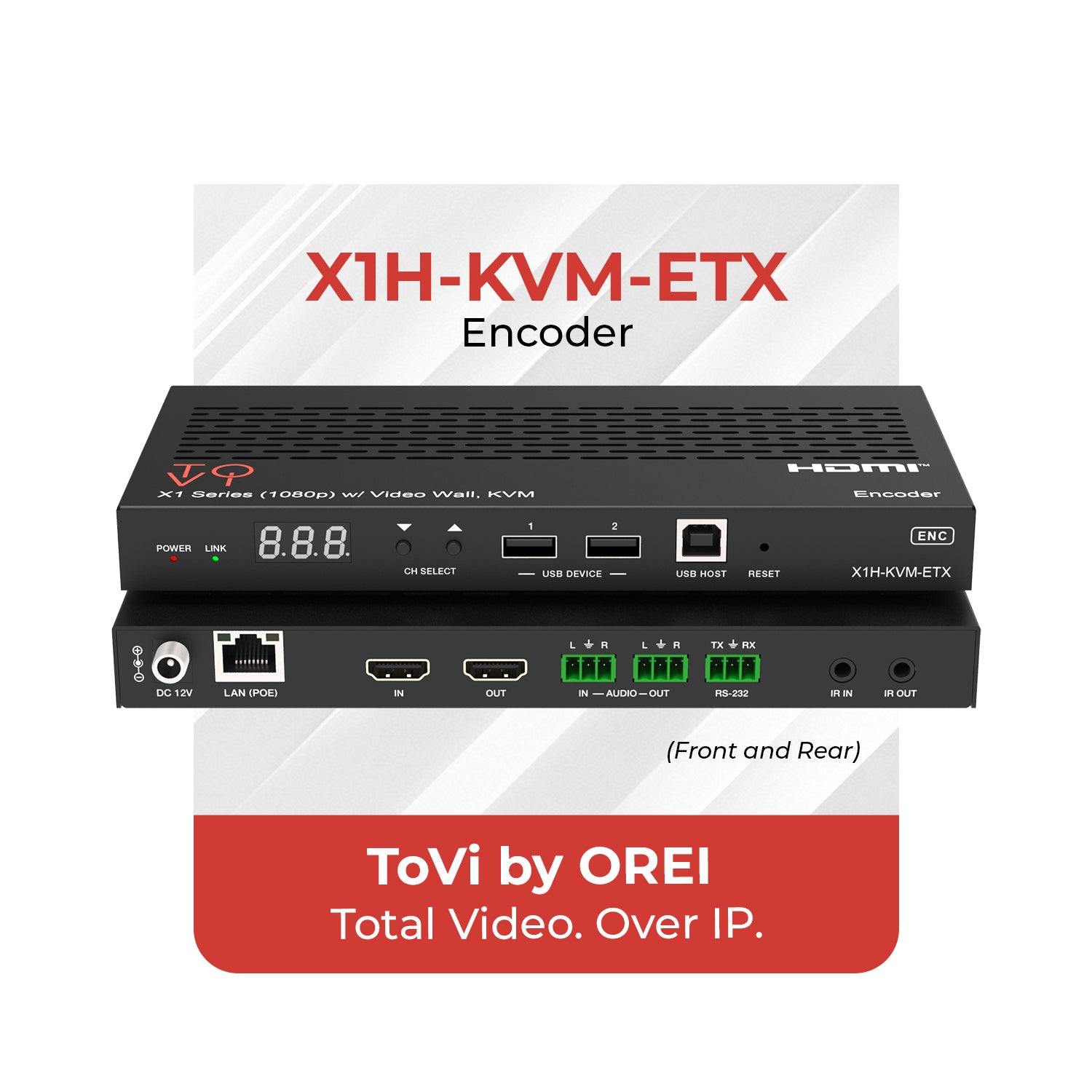

ToVi X1 1080p Encoder (Video Wall, KVM)
The OREI ToVi X1 1080p Encoder is a professional AV over IP solution for distributing high-quality Full HD video signals up to 328 feet over standard IP networks. It supports resolutions up to 1920x1200@60Hz with 4:4:4 color accuracy, ideal for complex multi-display setups like video walls up to 9x9. This encoder offers HDMI local loop-out, audio embedding/extraction, USB/KVM extension, and bi-directional IR/RS-232 pass-through, simplifying installations with PoE support for efficient wiring.
$249.00
Owner Satisfaction
4.0
/ 5
Category Rank
233
/ 255
#233 in Video
Price vs Category Average
-84%
Below average
Video Resolution
1920120060444
/ Up to x@Hz (::)
Who it's for
- Multi-Functional AV-over-IP Solution
- Cost-Effective Network Integration
- Reliable Full HD Performance
Who should skip it
- Resolution Cap at 1080p
- Requires Advanced Network Expertise
- Potential for Encoding Latency

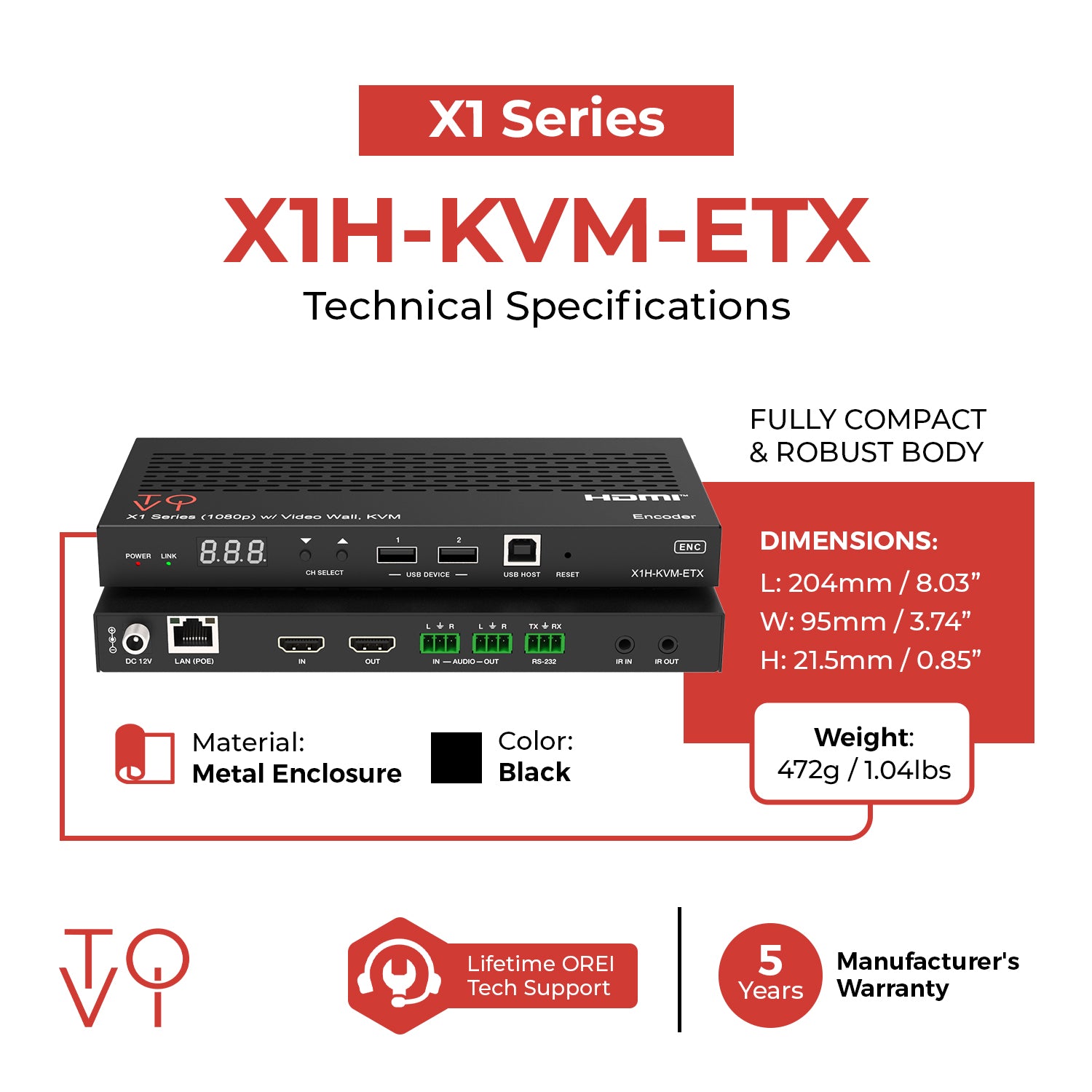

Key Specs
Video Resolution
Up to 1920x1200@60Hz (4:4:4)
Maximum Transmission Range
328 Feet (100 m) over CAT 6/6A/7
HDMI Compliance
HDMI 1.3 and HDCP 1.4
Power Source
Power over Ethernet (802.3af, Class 3 PD Mode) or DC Power Adapter
Audio Formats
LPCM 2.0CH (32/44.1/48KHz)
Network Interface
RJ45 (1G)
Compression Formats
H.265 and H.264
Control Interfaces
RS-232, TCP/IP, Web GUI
Features
- Supports video walls up to 9x9 displays

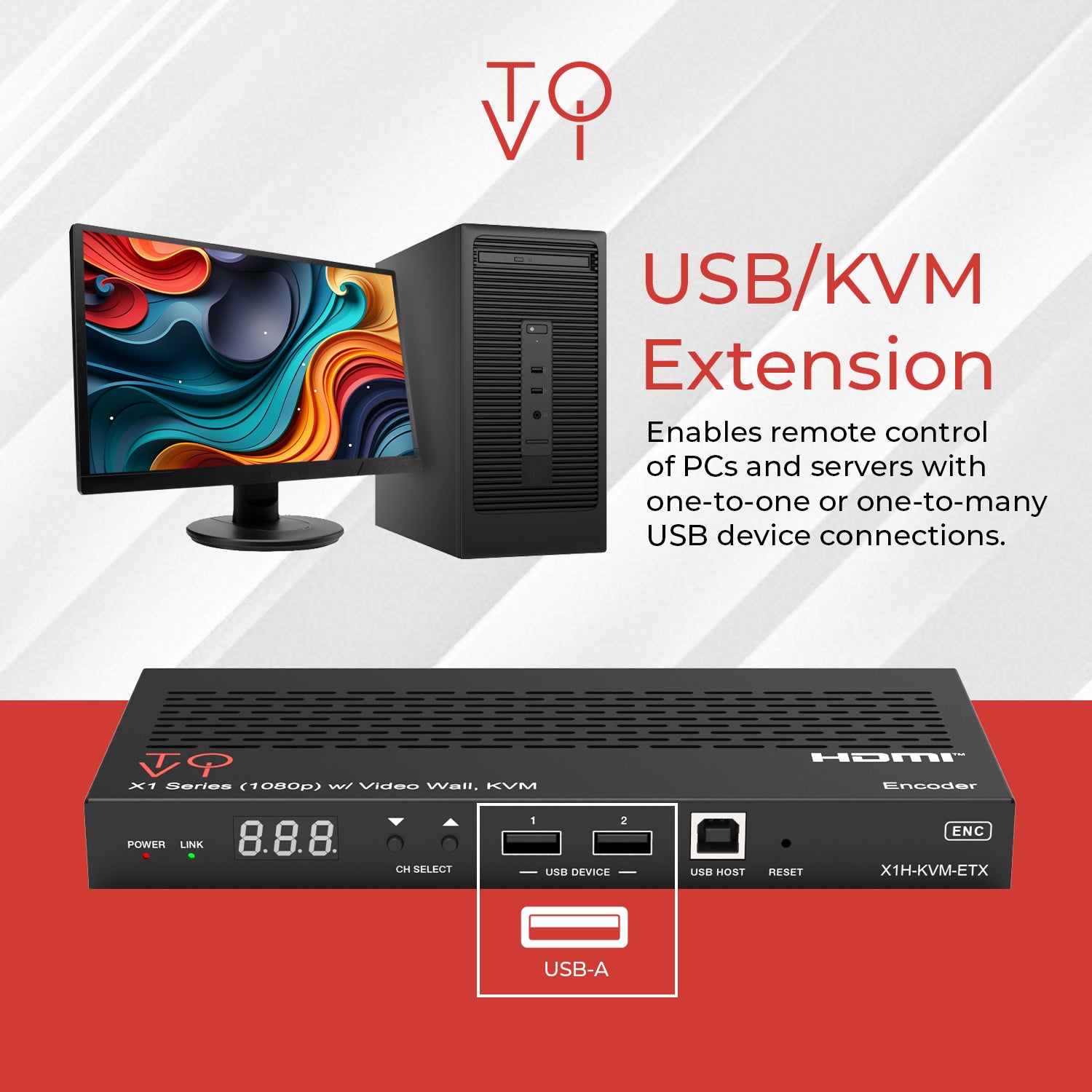

- Enables remote PC/server control via KVM
- Bi-directional IR and RS-232 pass-through
- HDMI local loop output for monitoring
- Flexible audio embedding and extraction
- Dual stream encoding for network optimization
- PoE support simplifies wiring
- Multiple control methods available
What customers say
The ToVi X1 excels in specialized video wall and KVM environments, delivering reliable, high quality 1080p encoding once running. While its dependable operation provides significant value for professional installations, users consistently report a steep learning curve. Initial configuration demands substantial technical understanding for seamless integration. The core theme is powerful, reliable performance achieved only after navigating a complex setup process.
