SainSmart Mega2560 LCD Keypad Prototype Shield V3 Kit
This SainSmart kit, centered around the Mega2560 R3 board, offers a robust platform for electronics prototyping. It includes a 16x2 LCD Keypad Shield for user interaction and a Prototype Shield V3 with a mini breadboard for easy circuit building. The Mega2560 features an Atmega 16U2 and an updated pinout, supporting both 5V and 3.3V shields. Ideal for makers developing complex projects, this bundle provides essential components for immediate development and learning embedded systems.
$30.00
Owner Satisfaction
4.3
/ 5
Category Rank
1239
/ 1543
#1239 in Development Boards
Price vs Category Average
-66%
Below average
Microcontroller
2560
/ ATmega (AVR Architecture)
Who it's for
- All-in-One Interface Solution
- Dedicated Prototyping Area
- Seamless Mega 2560 Compatibility
Who should skip it
- Significant Pin Consumption
- Increased Project Bulk
- Specific Library Dependency
Key Specs
Microcontroller
ATmega2560 (AVR Architecture)
USB Interface Chip
Atmega 16U2
LCD Display
16x2 character display with adjustable blue backlight

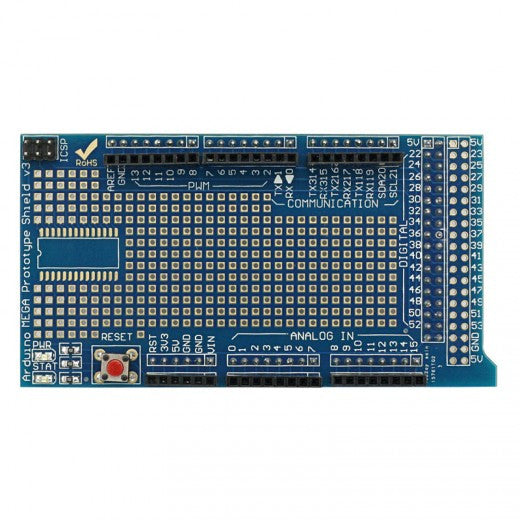

Prototype Shield includes a mini breadboard for solderless prototyping
Pinout updated to include SDA and SCL pins
IOREF pin allows shields to adapt to 3.3V or 5V operation
Operating Voltage
5.0V
Programming Interface
Bootloader via USB
Features
- Integrated LCD and keypad for intuitive control.
- Prototype shield with mini breadboard for flexible circuit design.
- Enhanced RESET circuit for improved stability.
- Supports 5V and 3.3V shield operation.
- Includes Mega2560 R3 board for powerful processing.
- Updated pinout for better compatibility.
- Designed for Arduino Mega2560.
- Ideal for rapid prototyping.
What customers say
Consumers consistently highlight the exceptional value and convenience of the SainSmart Mega2560 shield. This kit efficiently integrates an LCD screen, a functional keypad, and a prototyping area onto a single board, streamlining project development significantly. While a few users mention minor quality concerns regarding soldering or contrast adjustment, the overall consensus is that the low price point and the immediate utility make this an indispensable tool for hobbyists and students seeking quick integration.
