SainSmart

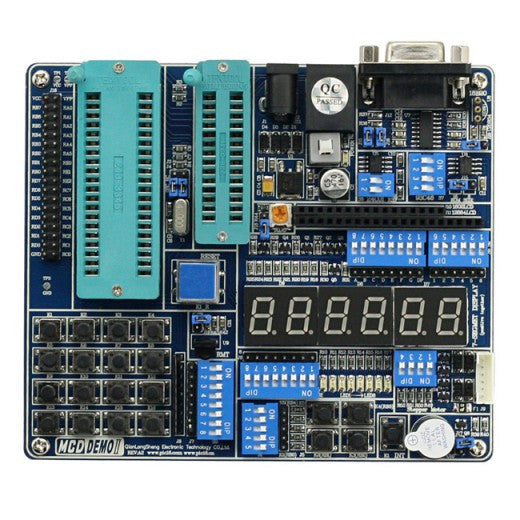

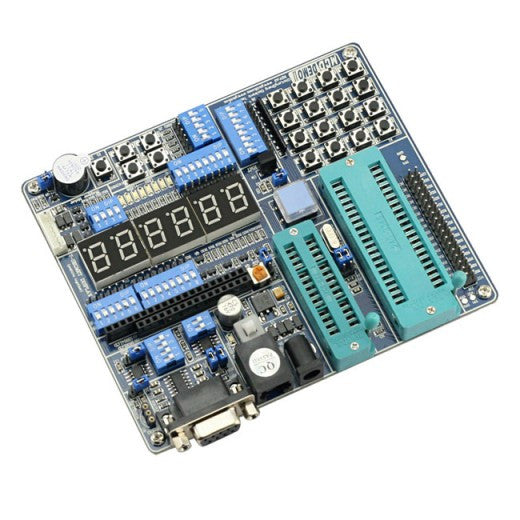

PIC 16F87X Microcontroller Development Board
Dive into embedded systems with the SainSmart PIC 16F87X Microcontroller Development Board. This discontinued yet comprehensive platform is ideal for learning and prototyping, featuring the versatile PIC 16F87X microcontroller. It offers a rich set of onboard peripherals, including LEDs, a 16x2 LCD, seven-segment displays, and a keypad for diverse input. Integrated modules for stepper motor control, buzzer sound experiments, and infrared reception expand its capabilities. With an ICD2 header for programming and debugging, plus an RS232 serial port, this board provides a robust environment for developing microcontroller applications.
$76.91
Owner Satisfaction
4.2
/ 5
Category Rank
1347
/ 1543
#1347 in Development Boards
Price vs Category Average
-12%
Below average
Microcontroller
16877
/ PIC FA
Who it's for
- Cost-Effective Entry Point
- Extensive Community Support
- Ready-to-Use Peripherals
Who should skip it
- Steeper Learning Curve for Software
- Variable Component Quality
- Outdated Architecture
Key Specs
Microcontroller
PIC 16F877A
Onboard Displays
16x2 LCD and 6-digit 7-segment
Communication Interfaces
RS-232 (DB9), I2C, SPI, UART
Analog Inputs
1
Power Input
7-12V AC or DC
Debugging Interface
ICD1/ICD2/MCD1/MCD2 compatible
Onboard Memory
I2C Serial EEprom 24c01B
Clock Selection
Jumper configurable
Features
- Versatile input with keypad and buttons
- Onboard displays for visual feedback
- Stepper motor control circuitry
- Infrared remote control decoding
- PWM sound output with buzzer
- ICD2 header for easy programming
- RS232 serial communication
- 1-Wire bus for temperature sensing
What customers say
This SainSmart development board offers excellent value, making it an ideal starting point for those new to PIC microcontrollers. Beginners will find the included components comprehensive, enabling immediate engagement with foundational learning projects. The board's primary advantage lies in its accessibility and educational utility, providing significant learning opportunities for the cost. Its build quality is suitable for educational purposes, ensuring a functional experience for new users exploring microcontroller concepts.
