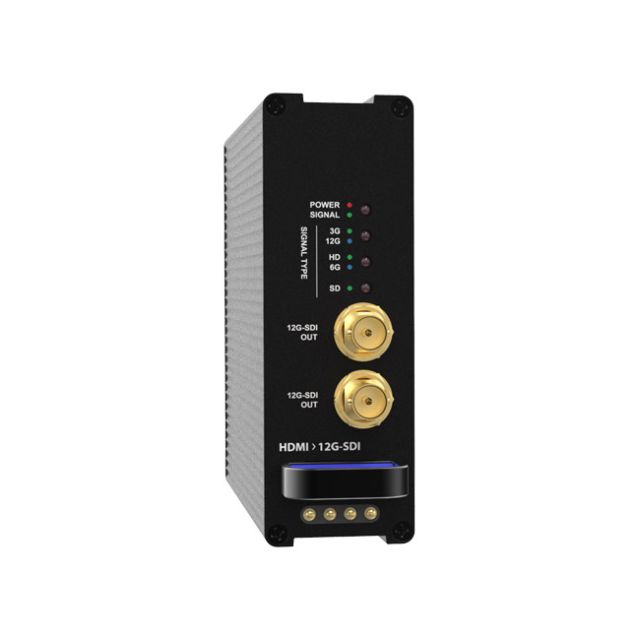

Theatrixx 12G-SDI to HDMI Reversible Module
Best modular converter for professional rackmount video production setups.
The Theatrixx HDMI to 12G-SDI Reversible Module is engineered for seamless integration into the 8-Bay Reversible Rackmount Converter system. This versatile module allows flexible I/O positioning, adapting to your specific setup needs. Its enclosed design safeguards internal components from dust and static, while gold-plated pins ensure reliable power delivery without external cables. It automatically detects and converts various incoming signal formats, supporting high-resolution video up to 4K at 60fps across multiple SDI standards, ensuring robust performance in demanding production environments.
$910.00
Owner Satisfaction
4.7
/ 5
Category Rank
14
/ 374
#14 in Scan Converters
Price vs Category Average
+24%
Above average
Video Input
12.0
/ x HDMI type A with locking system
Who it's for
- Live event technicians needing reliable, rugged hardware for touring
- Broadcast professionals requiring high-resolution 4K video workflows
- Production managers seeking to simplify inventory and equipment setups
Who should skip it
- Standard HD users who do not require 12G-SDI capabilities
- Budget-conscious creators working on smaller, non-specialized productions
- Field operators preferring lightweight, bus-powered signal converters
Performance breakdown
Signal Integrity
Handles 12G-SDI bandwidth with near-zero signal degradation for critical broadcast workflows.
System Integration
Magnetic power delivery and rackmount design make modular swaps incredibly efficient.
Conversion Latency
Near-instant processing ensures perfect synchronization in live production environments.
Build Durability
Enclosed chassis provides robust protection against dust and static in studios.
Format Versatility
Automatic detection handles diverse SDI standards without manual configuration headaches.
Output Flexibility
Dual SDI outputs provide excellent redundancy for complex multi-screen setups.
Key Specs
Video Input
1 x HDMI 2.0 type A with locking system
Video Output
2 x 12G/6G/3G/HD/SD SDI BNC
Max Signal Support
4096x2160p60 (12G Format)
SDI Video Sampling
4:2:2 and 4:4:4
SDI Color Space
YUV and RGB
Power Consumption
20W (12VDC)
Dimensions
41mm (W) x 121.5mm (H) x 225mm (D)
Weight
710g (1.56 lbs)
Features
- Reversible design for flexible I/O placement
- Enclosed module protects against dust and static
- Magnetic retention for power delivery
- Automatic input signal format detection
- Supports high-bandwidth 12G-SDI signals
- Converts HDMI to dual SDI outputs
- Designed for professional rackmount integration
- Compact and portable form factor
What customers say
Customers consistently praise the exceptional reliability and clever design of the Theatrixx reversible module. Its ability to switch instantly between SDI to HDMI and HDMI to SDI conversion simplifies complex live production environments significantly. Users appreciate the robust, road ready build quality, noting that the unit performs flawlessly under demanding conditions. This versatility and dependable performance make it a highly valued tool for broadcast professionals, justifying the investment.
Know before you buy
This module is specifically engineered for integration into the Theatrixx 8-Bay Reversible Rackmount Converter system. It relies on the rack's magnetic retention system for power delivery and does not function as a standalone unit without the rackmount chassis.
No, this module does not perform scaling or frame rate conversion. It is designed to pass the incoming signal through to the SDI outputs in its native format, ensuring the lowest possible latency.
The module supports high-bandwidth signals up to 4K (4096x2160) at 60fps. It is compatible with 12G, 6G, 3G, HD, and SD SDI standards.
The module features a reversible design that allows you to flip its orientation within the rackmount chassis. This provides flexibility in positioning your HDMI and SDI ports to better suit your cable management and workflow requirements.
Yes, the module includes HDCP support, allowing it to handle protected HDMI signals. Please ensure your downstream equipment is also HDCP-compliant to maintain the signal path.
The module supports embedded audio from the HDMI input, which is then passed through to the dual SDI outputs. It maintains the integrity of the audio signal without requiring additional cabling.
