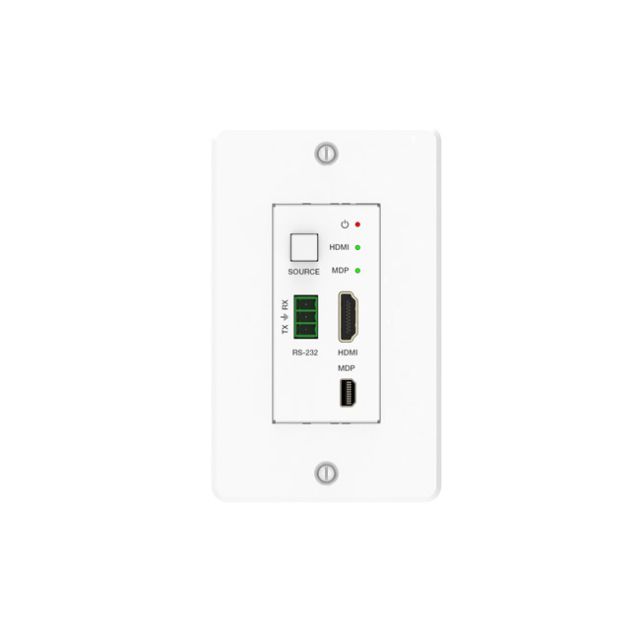

VigilLink 18Gbps 2x1 HDMI/mini DP Wall Plate Transmitter and Receiver
Best professional solution for clean, long-range 4K video installations.
Enhance your A/V setup with the VigilLink 18Gbps 2x1 HDMI/mini DP Wall Plate Transmitter and Receiver. This HDBaseT solution offers seamless 2x1 switching between HDMI and DisplayPort sources, integrating elegantly into your wall. It extends high-quality 4K HDR video up to 40 meters over a single CAT6/6a/7 cable. Designed for professional installations, it includes bidirectional RS-232 pass-through for control and is powered remotely via POE, simplifying wiring and improving aesthetics for a clean, modern look.
$855.00
Owner Satisfaction
4.5
/ 5
Category Rank
630
/ 2576
#630 in Repeaters & Transceivers
Price vs Category Average
-13%
Below average
Video Bandwidth
18
/ Gbps
Who it's for
- Installers aiming for clean, permanent conference room aesthetics
- Users needing flexible connectivity for diverse source devices
- Presenters requiring high-fidelity 4K visual clarity
Who should skip it
- DIY users lacking professional AV wiring experience
- Owners of modern laptops relying solely on USB-C
- Budget-conscious buyers seeking simple, low-cost signal extension
Performance breakdown
Signal Integrity
Maintains a rock-solid 18Gbps stream for crisp 4K HDR visuals.
Installation Versatility
Compact wall-plate design fits seamlessly into any professional A/V environment.
Transmission Range
Reliably extends high-bandwidth signals up to 40 meters over standard cabling.
Source Compatibility
Dual-input switching handles HDMI and Mini-DP sources with effortless precision.
Control Flexibility
Bidirectional RS-232 pass-through offers robust integration for complex control systems.
Power Efficiency
POE support eliminates the need for bulky local power supplies.
Key Specs
Video Bandwidth
18Gbps
Max Resolution
4K2K@50/60Hz 4:4:4
HDBaseT Extension
Up to 40m (4K@60Hz)
Transmission Standard
HDMI 2.0b, Display Port 1.2a
HDCP Compliance
HDCP 2.2
Power Method
POE from Receiver
Input Interfaces
HDMI, Mini-DP
Output Interface
HDBaseT
Features
- Flexible 2x1 HDMI/mini DP switching
- Supports 4K@60Hz HDR for vibrant visuals
- Extends signals up to 40 meters
- POE powered for simplified installation
- Bidirectional RS-232 control pass-through
- Automatic or manual input selection
- Sleek US one-gang wall plate design
- Includes interchangeable faceplates
What customers say
The VigilLink wall plate is highly regarded for its exceptional signal reliability, consistently delivering flawless 18Gbps transmission. Its dual input options, HDMI and mini DP, offer valuable flexibility, making it ideal for diverse settings like conference rooms and educational spaces. While professional installation is straightforward, some users found the wiring a bit challenging. Ultimately, this product provides outstanding performance and quality, establishing itself as a trustworthy choice for high resolution video distribution.
Know before you buy
No, the transmitter is powered via POE (Power over Ethernet) directly from the receiver. This eliminates the need for a local power outlet at the wall plate, keeping your installation clean and simple.
The system is rated for optimal performance up to 40 meters when using high-quality CAT6, 6a, or 7 cabling for 4K@60Hz signals. Exceeding this distance may result in signal degradation or loss of image quality.
The device detects an active signal on either the HDMI or Mini-DP input and switches to it automatically. You can also manually toggle between sources using the button on the faceplate or via RS-232 commands.
Yes, the unit supports 18Gbps bandwidth and is fully compliant with 4K@60Hz 4:4:4 HDR and HDCP 2.2. It is designed to handle modern high-definition video standards without compromising visual quality.
The transmitter is designed for a standard US one-gang wall box. It includes interchangeable faceplates to ensure it blends seamlessly with your existing room decor.
Yes, the bidirectional RS-232 pass-through allows for integration with professional control systems. This enables you to send control signals between the transmitter and receiver locations for centralized management.
