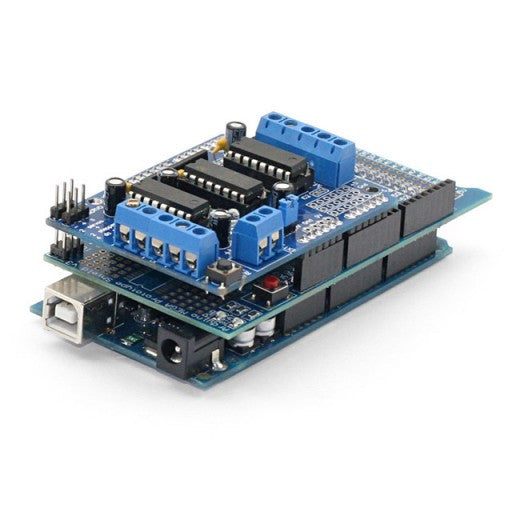

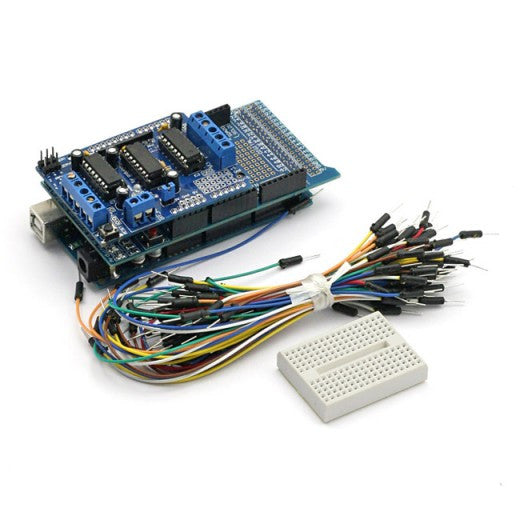

SainSmart MEGA 2560 Prototype Kit with Prototype Shield V3 and L293D Motor Driver
This SainSmart MEGA 2560 Prototype Kit is designed for ambitious electronics projects. It features the powerful ATmega2560 microcontroller, offering 54 digital I/O pins, 14 PWM outputs, and 16 analog inputs for extensive connectivity. The kit includes a versatile Prototype Shield V3 for easy component integration and an L293D motor driver capable of powering larger motors. Power can be supplied via USB, an adapter, or battery, making it adaptable for various applications. This discontinued kit is ideal for complex robotics and advanced prototyping.
$31.99
Owner Satisfaction
4.4
/ 5
Category Rank
1448
/ 2608
#1448 in Storage & Data Transfer Cables
Price vs Category Average
-42%
Below average
Microcontroller
256016
/ ATmega running at MHz
Who it's for
- Enhanced Project Capacity
- Streamlined Prototyping
- Integrated Motor Control
Who should skip it
- Steep Learning Curve for Novices
- Large Physical Footprint
- Potential for Component Variation
Key Specs
Microcontroller
ATmega2560 running at 16 MHz
Digital I/O Pins
54 (14 PWM outputs)
Analog Inputs
16
Hardware Serial Ports (UARTs)
4
Motor Driver
L293D chip (up to 36V, 600mA per channel)
Power Input
USB, AC-to-DC adapter, or battery
Prototype Shield V3 supports SOP28 SMD components
Connectivity
USB programming
Features
- High-current motor driving capability
- Seamless MEGA controller integration
- Extensive digital and analog I/O
- Versatile power input options
- Ideal for robotics and prototyping
- Easy component soldering and breadboarding
- Supports SMD component packages
- Includes essential prototyping accessories
What customers say
Customers consistently praise this SainSmart kit for its exceptional value, providing a comprehensive collection of components centered around the powerful MEGA 2560 board. It serves as an excellent, immediate starting point for complex prototyping projects, offering substantial utility right out of the box. Reviewers frequently highlight the convenience of the included prototype shield and motor driver, making setup straightforward for beginners and experienced users alike. While some minor components might not feel premium, the overall package delivers immense utility for the price, making it a highly recommended investment for those needing a complete solution.
Know before you buy
The L293D motor driver is suitable for small DC motors or stepper motors requiring up to 600mA per channel at voltages up to 36V. It is ideal for hobbyist robotics projects, though it may not be sufficient for high-torque or heavy-duty industrial motors.
Yes, the included Prototype Shield V3 is specifically designed to support SOP28 SMD components. This makes it a great choice if you are looking to transition from breadboarding to more permanent, compact circuit designs.
The ATmega2560 microcontroller is highly versatile, offering 54 digital I/O pins and 16 analog inputs. This provides significant headroom for complex projects involving multiple sensors, displays, and communication modules.
You have three primary power options: the USB connection for programming and low-power testing, an AC-to-DC power adapter, or a battery pack. This flexibility allows you to power your project while tethered to a computer or as a standalone mobile device.
While the MEGA 2560 is a powerful tool, it is best suited for users who have some familiarity with basic electronics and microcontroller programming. If you are a beginner, the extensive I/O options and included prototyping shield provide a great platform to grow into more complex robotics projects.
Yes, the Prototype Shield is designed for custom circuit integration, which typically requires soldering your components or headers onto the board. It provides a stable, permanent base for your project once you have finished testing your logic on a breadboard.
