Kendall Howard
8U Security Wall Rack
Best secure enclosure for protecting network equipment in high-traffic areas.

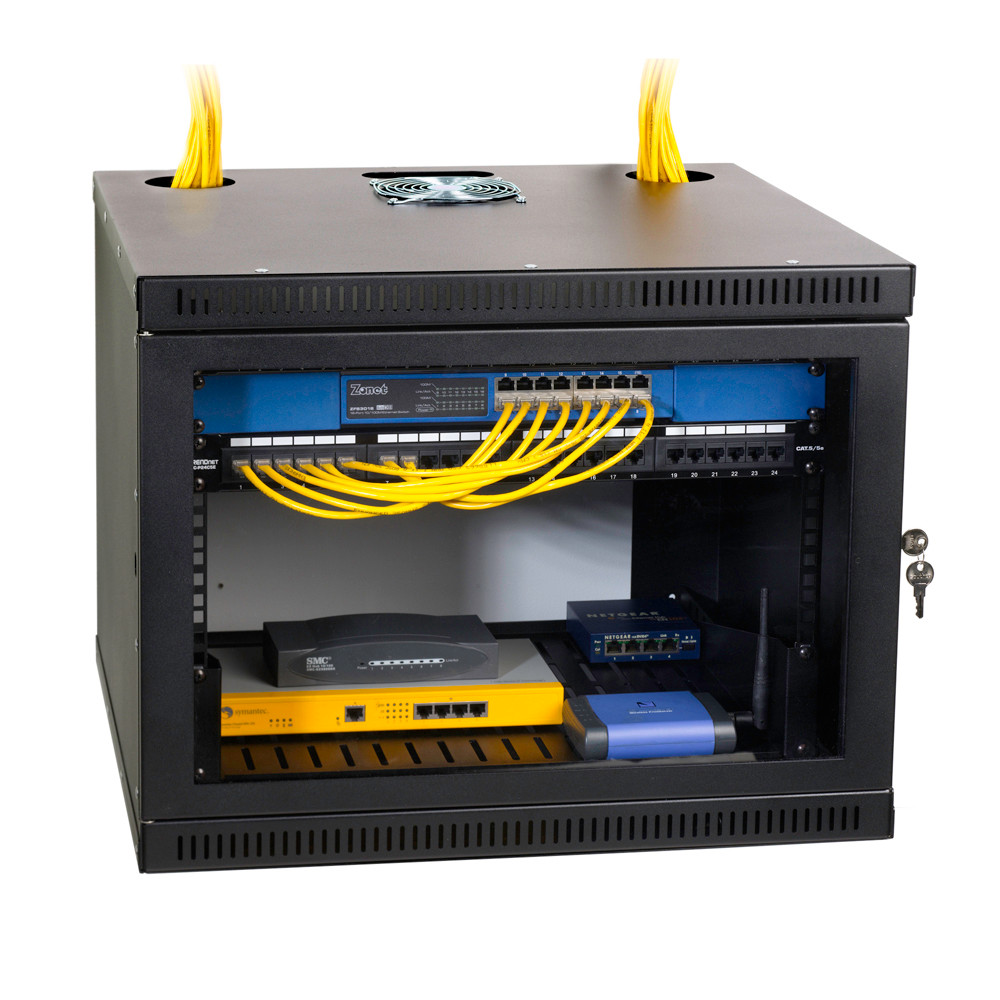

This 8U Security Wall Rack Enclosure by Kendall Howard offers a secure mounting solution for data and network equipment in environments where open installation is risky. It features a durable steel construction with solid sides and a locking front door that includes a smoked gray acrylic window for easy monitoring. The 20-inch deep chassis is ideal for various cabling needs, including CAT5 and fiber optics. Installation is simplified with tool-less, snap-in rack rails, and the open back design allows easy feeding of pre-terminated cables, saving significant installation time.
$390.00
Owner Satisfaction
4.7
/ 5
Category Rank
9
/ 1638
#9 in Computer Racks & Mounts
Price vs Category Average
-31%
Below average
Capacity
8
/ U
Who it's for
- IT managers prioritizing hardware security in public or shared spaces
- Small business owners needing to reclaim valuable floor space
- Network technicians requiring quick access to rear cabling and ports
Who should skip it
- Growing businesses anticipating a need for additional rack space
- DIY installers lacking experience with heavy-duty wall mounting hardware
- Users deploying high-performance gear that generates significant heat
Performance breakdown
Security Integrity
Locking steel enclosure provides robust protection for sensitive network hardware.
Installation Efficiency
Tool-less rail design and open back significantly reduce setup time.
Cable Management
Strategic knockouts and open-back design simplify complex cabling configurations.
Thermal Management
Passive ventilation is standard, though active cooling requires optional fan kits.
Build Quality
Durable American-made steel construction ensures long-term reliability in demanding environments.
Monitoring Accessibility
Smoked acrylic window allows for quick visual status checks without unlocking.
Key Specs
Capacity
8U
Usable Depth
20 inches
Overall Dimensions
17.25"H x 22.25"W x 20.5"D
Weight
45 lbs
Construction Material
Steel
Compliance
Standard 19 inch EIA Compliant
Door Feature
Locking front door with smoked grey acrylic window
Origin
Made in the USA
Features
- Provides secure mounting for equipment in open environments
- Tool-less rail adjustments using Click-N-Drop design
- Open back design facilitates feeding pre-terminated cables
- Locking door allows visual monitoring of internal equipment
- Multiple laser knockouts on top and bottom for cable entry/exit
- Includes provisions for optional fan installation for cooling
What customers say
Customers consistently praise the exceptional quality and robust design of the 8U Security Wall Rack. Reviewers frequently highlight its heavy duty construction, noting that it provides reliable, secure housing for critical network equipment. The locking mechanism is considered highly effective, offering peace of mind regarding equipment safety. While installation requires careful planning due to the unit's solid build, users confirm the rack delivers excellent long term performance and durability, making it a worthwhile investment for secure environments.
Know before you buy
Yes, the rack is fully compliant with standard 19-inch EIA specifications, making it compatible with most standard switches, patch panels, and routers.
Yes, the unit includes specific provisions for optional fan installation, allowing you to improve airflow if your equipment generates significant heat.
The open back allows you to mount the rack over existing wall-mounted cables, meaning you can feed pre-terminated cables through the back without having to disconnect or re-terminate them.
Yes, the rack features a tool-less 'Click-N-Drop' design that allows you to adjust the rail depth quickly and easily without needing a screwdriver.
The enclosure is built from durable steel and features a locking front door, providing a secure barrier for your equipment in shared spaces or open environments.
The rack provides a usable depth of 20 inches, which is sufficient for most standard networking gear, including CAT5 and fiber optic equipment.
