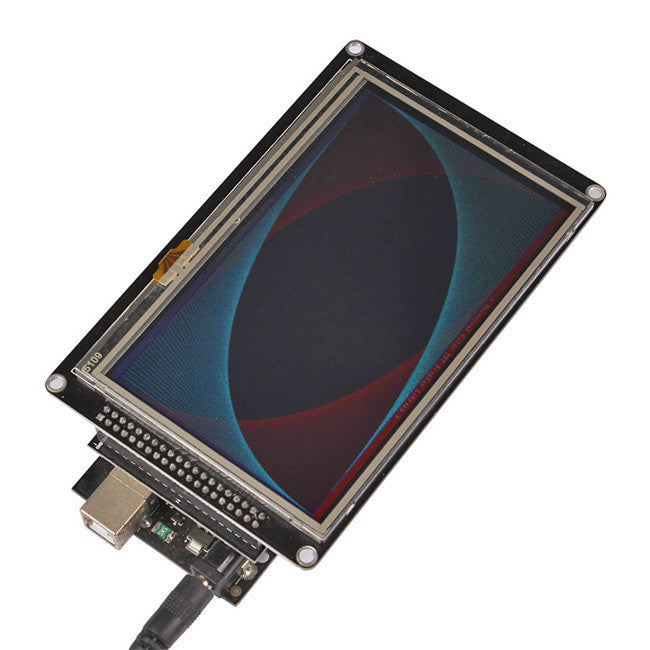

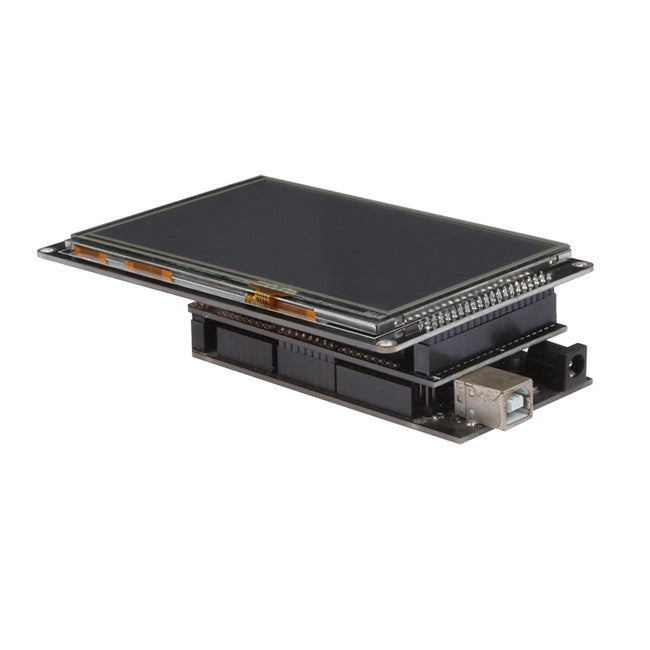

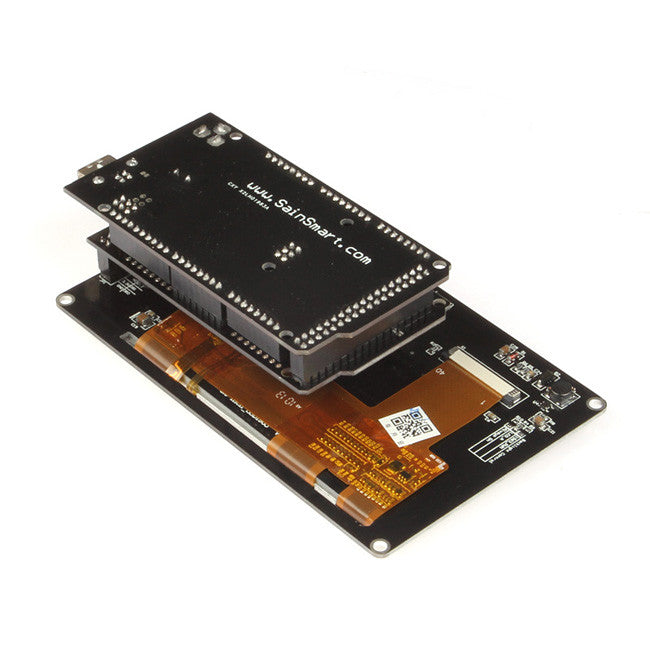

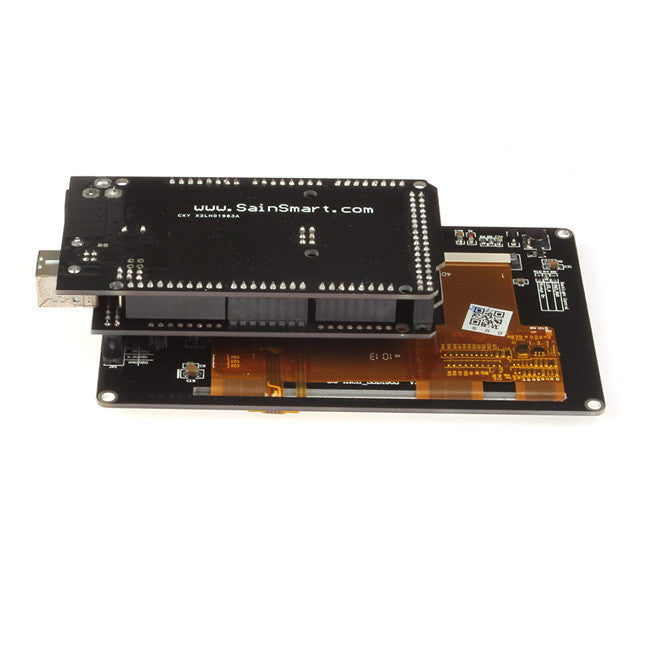

SainSmart MEGA2560 R3 with 5" LCD Touch Panel and SD Card Shield Kit
Elevate your projects with the SainSmart MEGA2560 R3 development board kit. This comprehensive package includes a 5-inch TFT LCD with a responsive touchscreen, perfect for interactive applications. The MEGA2560 R3 board offers enhanced USB transfer rates and increased memory, powered by the ATmega2560 microcontroller. An integrated SD card slot provides ample storage for custom assets, while the included shield ensures voltage adaptation for various add-ons. This kit is ideal for hobbyists and makers looking to create sophisticated embedded systems with visual feedback and expanded capabilities.
$69.99
Owner Satisfaction
3.9
/ 5
Category Rank
1484
/ 1545
#1484 in Development Boards
Price vs Category Average
-20%
Below average
Microcontroller
256016
/ ATmega running at MHz
Who it's for
- All-in-One HMI Solution
- Robust Project Capacity
- Built-in Data Logging
Who should skip it
- Graphical Performance Limitations
- High Pin and Memory Overhead
- Potential Library Dependency Issues
Key Specs
Microcontroller
ATmega2560 running at 16 MHz
Operating Voltage
5V
Recommended Input Voltage
7-12V
Digital I/O Pins
54 (15 PWM capable)
Analog Input Pins
16
Flash Memory
256 KB (8 KB used by bootloader)
SRAM
8 KB
EEPROM
4 KB
Features
- Interactive 5" LCD touchscreen for dynamic projects
- Expandable storage via integrated SD card slot
- Faster USB transfers and more memory on MEGA2560 R3
- IOREF pin for flexible shield voltage adaptation
- All-in-one kit with board, LCD, shield, and cable
- Dedicated technical support and example projects
- Onboard flash for custom icons and assets
- High-speed data transmission with optimized shield design
What customers say
Customers generally view this kit as a strong value proposition, offering a large 5 inch touch display paired with the powerful MEGA2560 board. The comprehensive nature is a major plus for ambitious projects. However, the initial setup presents a learning curve. Users frequently mention that getting the display libraries configured correctly requires patience and specific technical knowledge, impacting the immediate ease of use. Once configured, the quality of the display and the overall utility of the kit are highly praised, making it a worthwhile investment for intermediate users.
