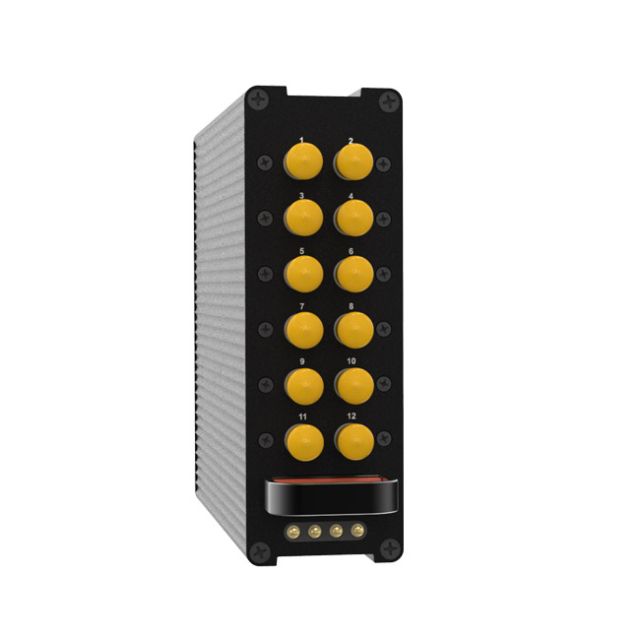

Theatrixx Optical Breakout - 12 Channels (Multimode) Reversible Module
Best signal consolidator for professional AV technicians managing complex fiber trunking.
The Theatrixx Optical Breakout module is designed for seamless integration into the 8-bay Frame, offering a versatile solution for signal consolidation. Its reversible design allows for flexible positioning of inputs and outputs, adapting to various installation requirements. This fully passive module requires no external power, simplifying setup and operation. It efficiently combines up to four optical signals, including video, network, and audio, into a single cable, making it ideal for trunking applications in professional environments. This module is specifically engineered for multimode optical systems.
$430.00
Owner Satisfaction
4.5
/ 5
Category Rank
32
/ 70
#32 in Concentrators & Multiplexers
Price vs Category Average
-88%
Below average
Type
Optical Breakout Module
/ Optical Breakout Module
Who it's for
- Touring professionals requiring rugged gear that survives frequent transport
- Live event technicians managing complex, high-density fiber cable runs
- System integrators needing flexible mounting options for tight rack spaces
Who should skip it
- Small-scale productions seeking affordable, basic fiber connectivity solutions
- Engineers planning long-distance infrastructure across large venues
- Budget-conscious buyers avoiding specialized, proprietary cabling requirements
Performance breakdown
Signal Consolidation
Efficiently bundles four distinct signals into one streamlined cable run.
Installation Flexibility
Reversible module design allows for highly adaptable input and output placement.
Operational Simplicity
Passive architecture eliminates power requirements and potential points of failure.
System Integration
Seamlessly slides into the 8-bay frame for clean rack mounting.
Signal Latency
Zero-latency performance ensures perfect synchronization for professional video and audio.
Build Durability
Rugged construction designed to withstand the rigors of professional trunking environments.
Key Specs
Type
Optical Breakout Module
Channel Count
4 channels
Fiber Type
Multimode
Power
Fully passive (No external power required)
Compatibility
Fits Theatrixx 8-bay Frame
Mounting Type
Rack Mount
Audio Support
Yes
Cascadable
No
Features
- Integrates into Theatrixx 8-bay Frame.
- Reversible design for flexible I/O placement.
- Passive operation, no external power needed.
- Consolidates 4 optical signals into one cable.
- Supports video, network, and audio signals.
- Ideal for trunking applications.
- Designed for multimode fiber.
What customers say
Users consistently praise the Theatrixx Optical Breakout for its exceptional reliability, noting that the 12 channel multimode connection maintains signal integrity even under heavy use. The reversible module design is a standout feature, significantly improving ease of use and flexibility during rapid deployment in live event settings. Customers feel confident investing in this robust solution, viewing it as a critical piece of infrastructure that performs flawlessly when needed most. This high quality construction validates the overall value proposition.
Know before you buy
No, the Theatrixx Optical Breakout is a fully passive device. It does not require any external power, which simplifies your setup and eliminates the need for extra cabling.
No, this specific model is engineered exclusively for multimode optical systems. It will not function correctly if paired with single-mode fiber.
This module is versatile enough to handle video, network, and audio signals. It is designed to consolidate these various signals into a single cable for efficient trunking.
The reversible design allows you to flip the module within the 8-bay frame. This provides flexibility in how you position your inputs and outputs to better suit your specific rack layout.
Because the module is fully passive, it introduces zero latency. Your signals will pass through the unit with no processing delay.
