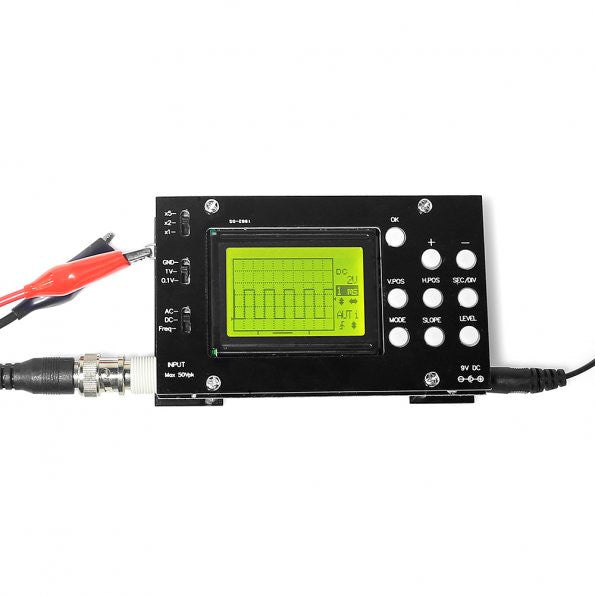

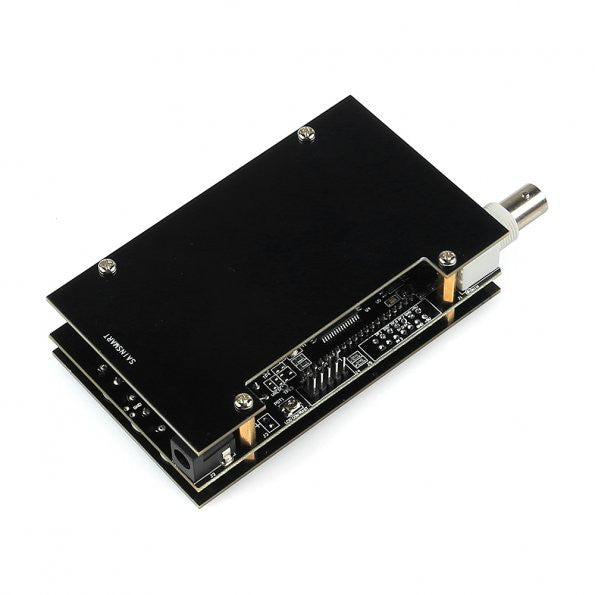

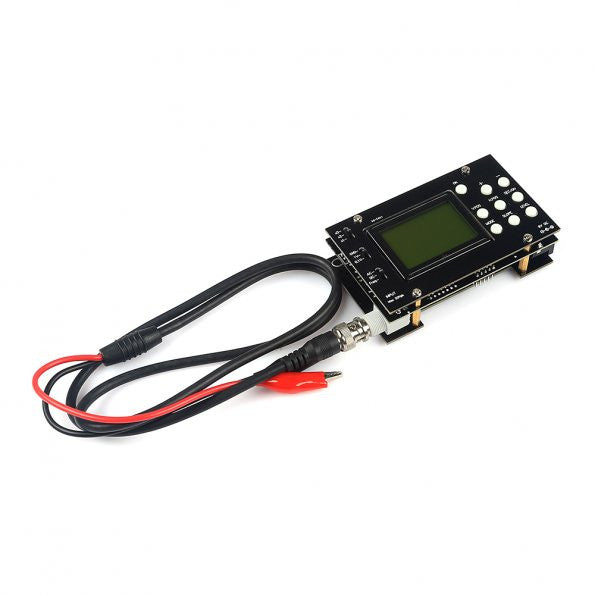

DSO062 Mini Digital Oscilloscope DIY Kit

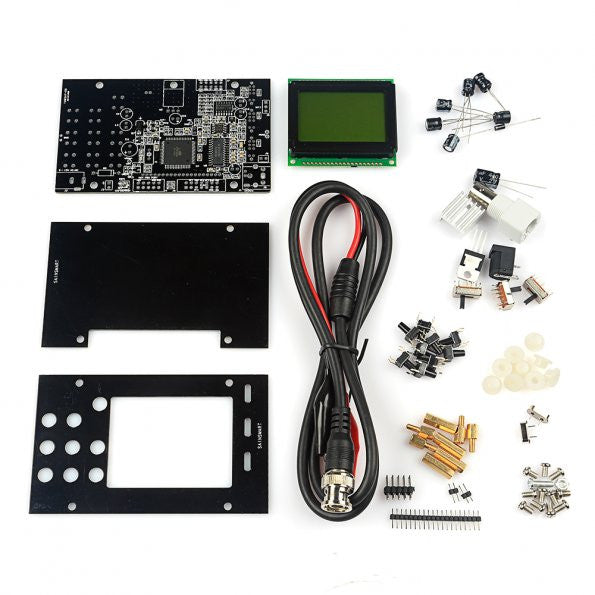

Build your own functional digital oscilloscope with the SainSmart DSO062 DIY Kit. Designed for hobbyists, this kit requires soldering through-hole components onto a semi-populated PCB. Once assembled, it provides a 1MHz analog bandwidth and a 2MSa/s sampling rate with 8-bit resolution. It features adjustable sensitivity, multiple trigger modes, and the ability to save up to six waveform captures. An integrated test signal generator and frequency meter enhance its utility for basic electronic testing.
$38.99
Owner Satisfaction
4.2
/ 5
Category Rank
1347
/ 1543
#1347 in Development Boards
Price vs Category Average
-56%
Below average
Analog Bandwidth
1
/ MHz
Who it's for
- Educational Assembly Experience
- Highly Accessible Price Point
- Compact and Portable Design
Who should skip it
- Limited Performance Specifications
- Assembly Time and Skill Required
- Potential for Post-Build Troubleshooting
Key Specs
Analog Bandwidth
1MHz
Maximum Real-Time Sampling Rate
2MSa/s
Resolution
8 bits
Maximum Input Voltage
50Vpk (with 1x probe)
Record Length
256 bytes
Input Impedance
1M ohm
Dimensions
110mm x 65mm x 25mm (without case)
Weight
125 grams (excluding probe and power adapter)
Features
- DIY kit for building a digital oscilloscope
- Captures transient events with hold/run feature
- Adjustable trigger level with indicator
- Save and recall up to 6 waveform captures
- Auto-switches between oscilloscope and frequency meter
- Includes 500Hz test signal generator
- Compact mini form factor
- Requires soldering through-hole components
What customers say
The DSO062 Mini Digital Oscilloscope DIY Kit is highly regarded for its exceptional value as an educational tool. Consumers appreciate the hands on experience it provides for learning soldering and basic circuit assembly. While the final device performs reliably for entry level signal analysis, some builders suggest the included instructions could benefit from greater clarity regarding specific component orientation. Overall, the satisfaction of successfully completing the build and having a functional, low cost scope drives strong positive sentiment.
