SainSmart

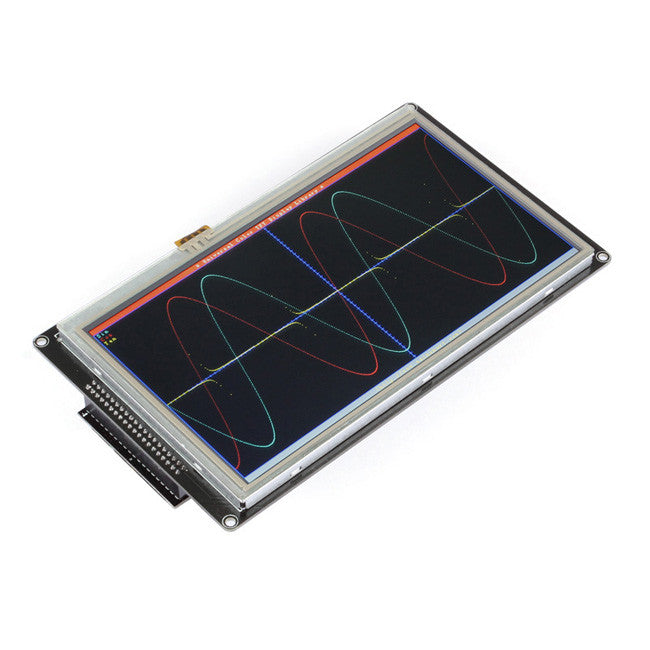

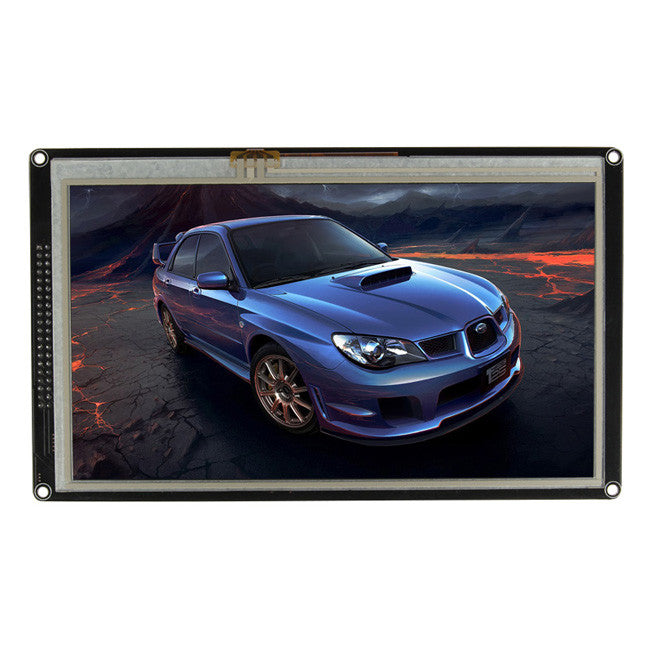

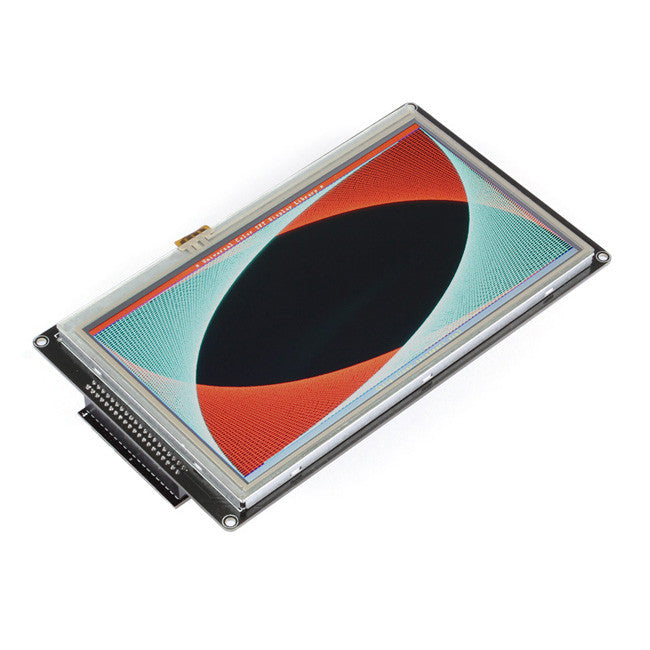

SainSmart Due + 7" TFT LCD Screen SD Card Slot + TFT Shield For Arduino
This SainSmart Due kit is designed for Arduino enthusiasts, featuring a 32-bit ARM Cortex-M3 microcontroller board with 54 digital I/O pins, 12 analog inputs, and 4 UARTs. It comes bundled with a 7-inch TFT LCD display (800x480 resolution) with touchscreen and an SD card slot, along with a dedicated TFT LCD shield for simplified connections to the Arduino Due. This combination streamlines development, offering touch functionality and data storage capabilities for your projects.
$68.99
Owner Satisfaction
3.9
/ 5
Category Rank
1457
/ 1545
#1457 in Development Boards
Price vs Category Average
-21%
Below average
Microcontroller
913884323
/ ATSAMXE, MHz, -bit ARM Cortex-M
Who it's for
- Comprehensive Project Starter
- Enhanced Processing Power
- Integrated Data Storage
Who should skip it
- 3.3V Logic Challenge
- Steeper Learning Curve
- Potential Library & Driver Quirks
Key Specs
Microcontroller
AT91SAM3X8E, 84 MHz, 32-bit ARM Cortex-M3
RAM
96 KB SRAM
Flash Memory
512 KB
Digital I/O Pins
54 (12 PWM)
Analog Input Pins
12
Analog Output Pins
2
Operating Voltage
3.3V
LCD Display
7.0" TFT, 800x480 resolution, SSD1963 Controller, Touchscreen
Features
- Integrated 7-inch TFT LCD with touchscreen for interactive displays
- On-board SD card slot for easy data storage and program loading

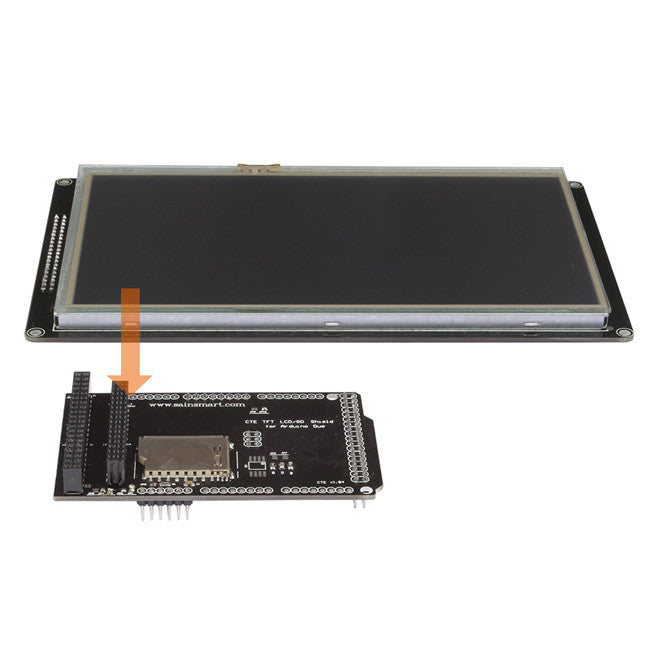

- Dedicated TFT LCD shield simplifies wiring and connection to Arduino Due
- High-speed data transmission via SPI interface with DMA support
- Includes example projects and technical support
- Expandable with Arduino Mega2560 and Raspberry Pi compatibility notes
- On-board 64Mbit SPI Flash for storing fonts and icons
- USB OTG capable connection
What customers say
Customers generally appreciate the comprehensive nature of this SainSmart kit, finding it offers good value by bundling the Due board with a large TFT screen and shield. While the potential for ambitious projects is high, some users note that getting the display fully operational can present a learning curve, often requiring careful attention to library compatibility and setup instructions. The overall sentiment suggests a powerful package for those willing to invest time in configuration.
Still have a question?
Ask Hayley anything about this product before you decide.
Ready to buy?
$69
