Waveshare

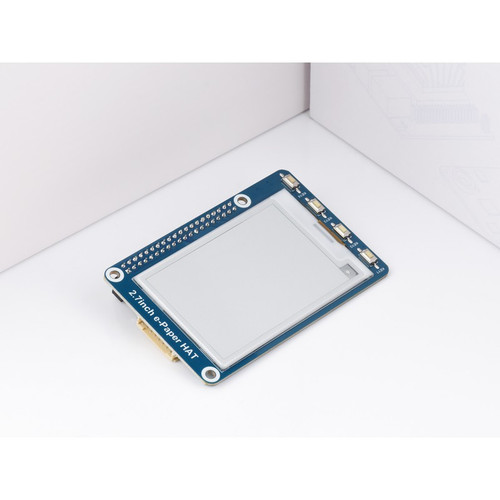

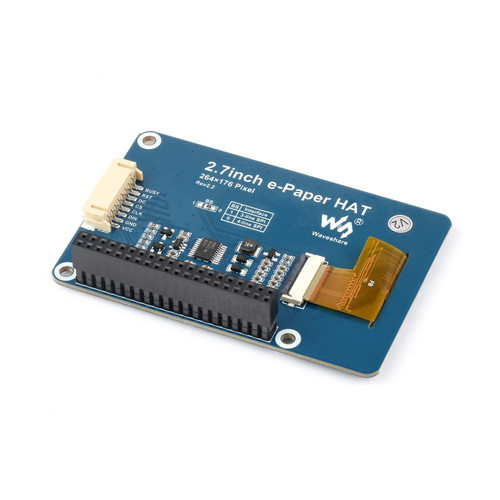

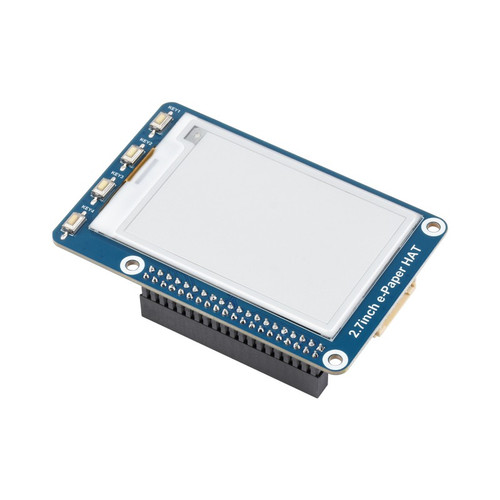

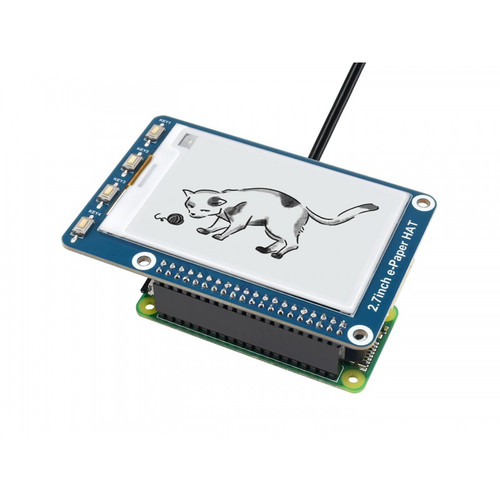

2.7inch E-Ink display HAT for Raspberry Pi
This E-Ink display HAT from Waveshare is designed for Raspberry Pi, offering a 2.7-inch screen with a 264x176 resolution and SPI interface. It's ideal for applications requiring ultra-low power consumption and excellent visibility in sunlight, such as shelf labels or industrial instruments. The display retains its image even when power is removed, making it highly efficient. It's compatible with various Raspberry Pi models and includes development resources for easy integration.
$20.95
Owner Satisfaction
4.1
/ 5
Category Rank
1378
/ 1541
#1378 in Development Boards
Price vs Category Average
-76%
Below average
Operating voltage
3.35
/ V/V
Who it's for
- Energy Efficiency
- Paper-Like Clarity
- Persistent Display
Who should skip it
- Sluggish Refresh
- Monochrome Limitation
- Potential for Ghosting
Key Specs
Operating voltage
3.3V/5V
Interface
3-wire SPI, 4-wire SPI
Outline dimension
85mm × 56mm
Display size
57.288mm × 38.192mm
Dot pitch
0.217 × 0.217
Resolution
264 × 176
Display color
black, white
Full refresh time
6s
Features
- Retains last displayed content even when power is off
- Extremely low power consumption, only uses power for refreshing
- Compatible with Raspberry Pi 2B/3B/Zero/Zero W
- Integrated onboard 4x Keys for user input
- Supports both 3-wire and 4-wire SPI for flexible connectivity
- Comes with comprehensive development resources and manuals
What customers say
Customers generally appreciate the 2.7inch E Ink display HAT for its clear visual output and compact design. A consistent theme highlights the initial software setup as a learning curve for some users, requiring careful attention to documentation and drivers. However, once configured, the display performs reliably, delivering crisp, low power visuals ideal for various Raspberry Pi projects. Its quality and dedicated HAT form factor are frequently praised, making it a valuable addition despite the initial setup effort.
