Corsair iCUE LINK XD6 RGB ELITE Pump/Reservoir Combo
Best pump-reservoir combo for custom liquid cooling enthusiasts seeking streamlined builds.
This advanced cooling component is engineered for DIY PC builders seeking exceptional coolant flow and striking aesthetics. It features a high-performance pump for efficient, quiet operation and integrates 22 addressable RGB LEDs for vibrant, customizable lighting. The unit includes an integrated coolant temperature sensor for precise control and multiple G1/4 ports for flexible installation. Designed as part of a streamlined ecosystem, it simplifies your build with a single cable connection, offering both superior performance and visual appeal for custom liquid cooling loops.
$179.99
Owner Satisfaction
4.3
/ 5
Category Rank
3013
/ 4022
#3013 in Computer System Cooling Parts
Price vs Category Average
+26%
Above average
Lighting
RGB via iCUE LINK
/ RGB via iCUE LINK
Who it's for
- Builders wanting a cleaner, faster custom loop installation
- Users seeking high-performance cooling with integrated, stylish lighting
- Enthusiasts preferring unified software control for all components
Who should skip it
- Users who prefer mixing and matching parts from different brands
- Budget-conscious builders looking for cost-effective cooling solutions
- Owners of compact PC cases with limited internal space
Performance breakdown
Coolant Flow Efficiency
FlowDrive Max pump delivers robust circulation for demanding custom cooling loops.
Installation Simplicity
iCUE LINK ecosystem drastically reduces cable clutter during the assembly process.
Aesthetic Customization

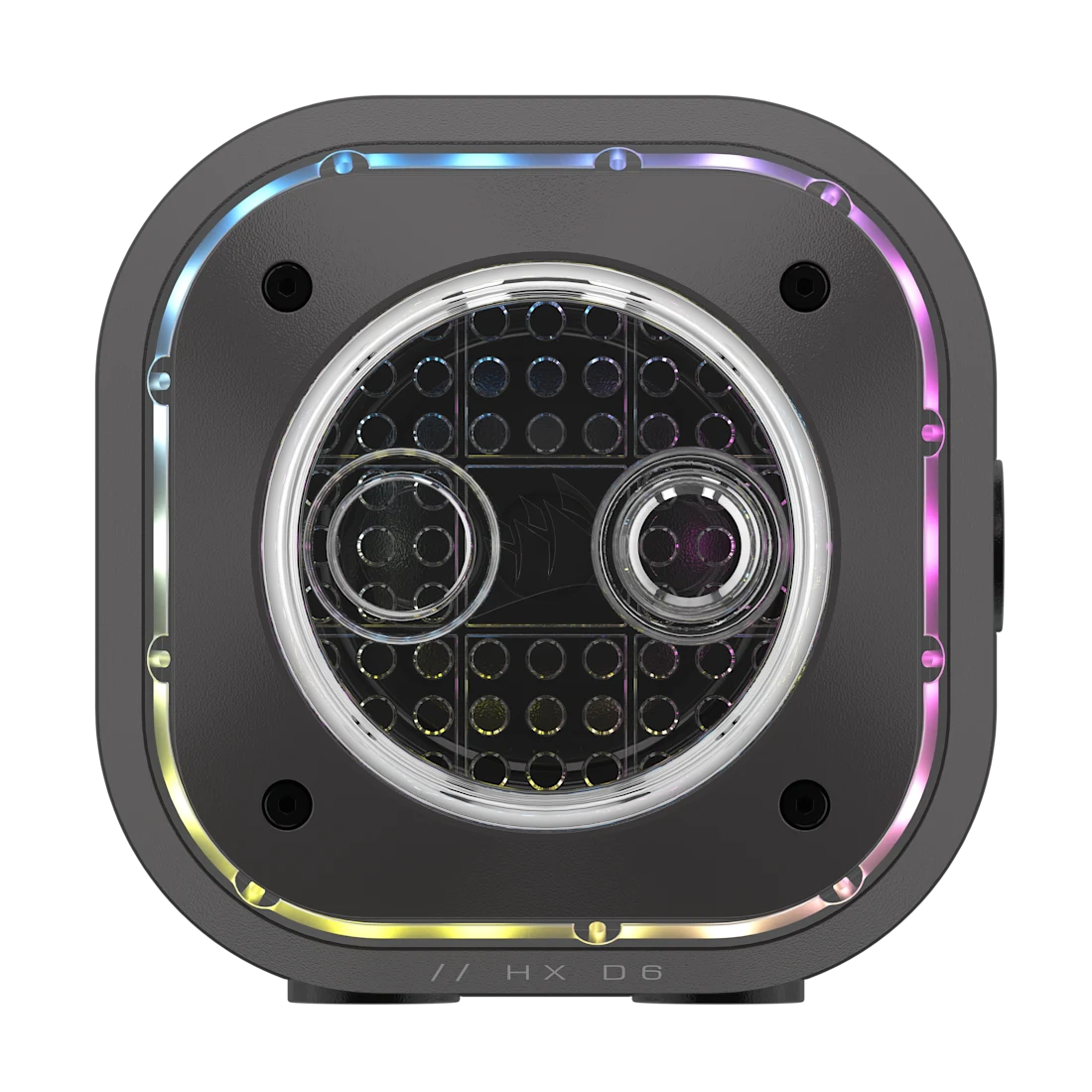

Twenty-two addressable LEDs offer deep, vibrant lighting control via software.
Monitoring Precision
Integrated temperature sensor provides essential real-time data for thermal management.
Build Versatility

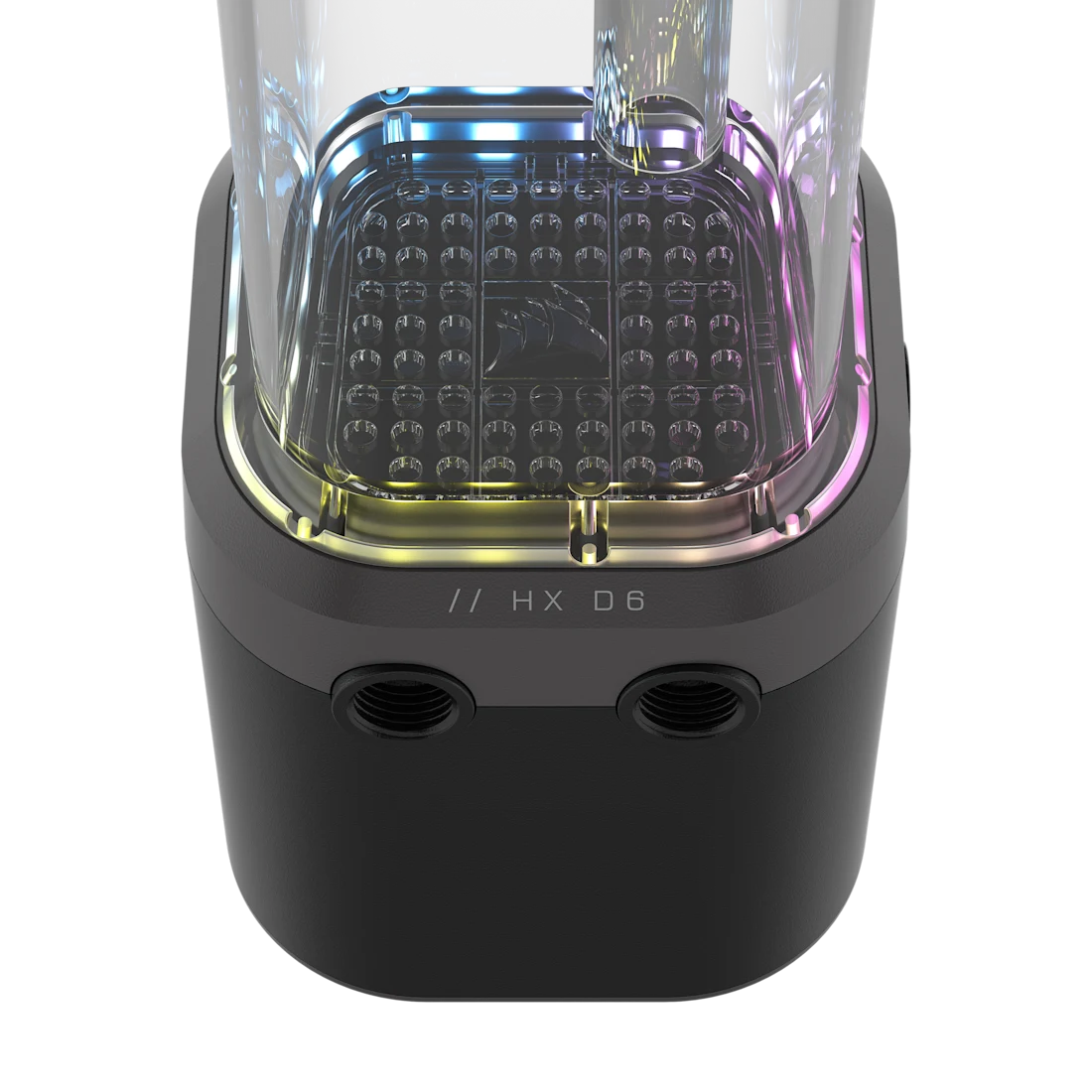

Standard G1/4 ports ensure broad compatibility with most custom loop fittings.
Reservoir Capacity
440ml volume strikes a smart balance between compact size and capacity.
Key Specs
Lighting
RGB via iCUE LINK
Compatible Materials
Only mix with other copper / brass products
Port Thread
G1/4" BSPP
Max Operating Temperature
60°C coolant temperature
Pump Voltage
12V
Pump Type
CORSAIR PWM
Type
Pump/Reservoirs
Color
Black
Know before you buy
This pump/reservoir combo is compatible with both flexible and rigid tubing, provided you use the appropriate G1/4 fittings for your specific tubing type.
No, you should only use this unit with copper or brass components. Mixing metals can lead to galvanic corrosion, which will damage your cooling loop over time.
The iCUE LINK system uses a single-cable connection to handle both power and data for the pump and lighting. This significantly reduces cable clutter compared to traditional setups that require separate power and RGB headers.
Yes, to view and utilize the data from the integrated coolant temperature sensor, you will need to use Corsair's iCUE software. This allows you to set custom fan curves based on your actual coolant temperature rather than just CPU load.
The XD6 RGB ELITE is rated for a maximum operating coolant temperature of 60°C. It is important to keep your loop below this threshold to ensure the longevity of the pump and reservoir materials.
With a flow rate of 750 liters per hour and a pressure head of 6.7 meters, this pump is well-suited for most custom loops, including those with multiple radiators and water blocks.
