Revel
Revel SA1000
Best dedicated power solution for custom in-wall subwoofer installations.

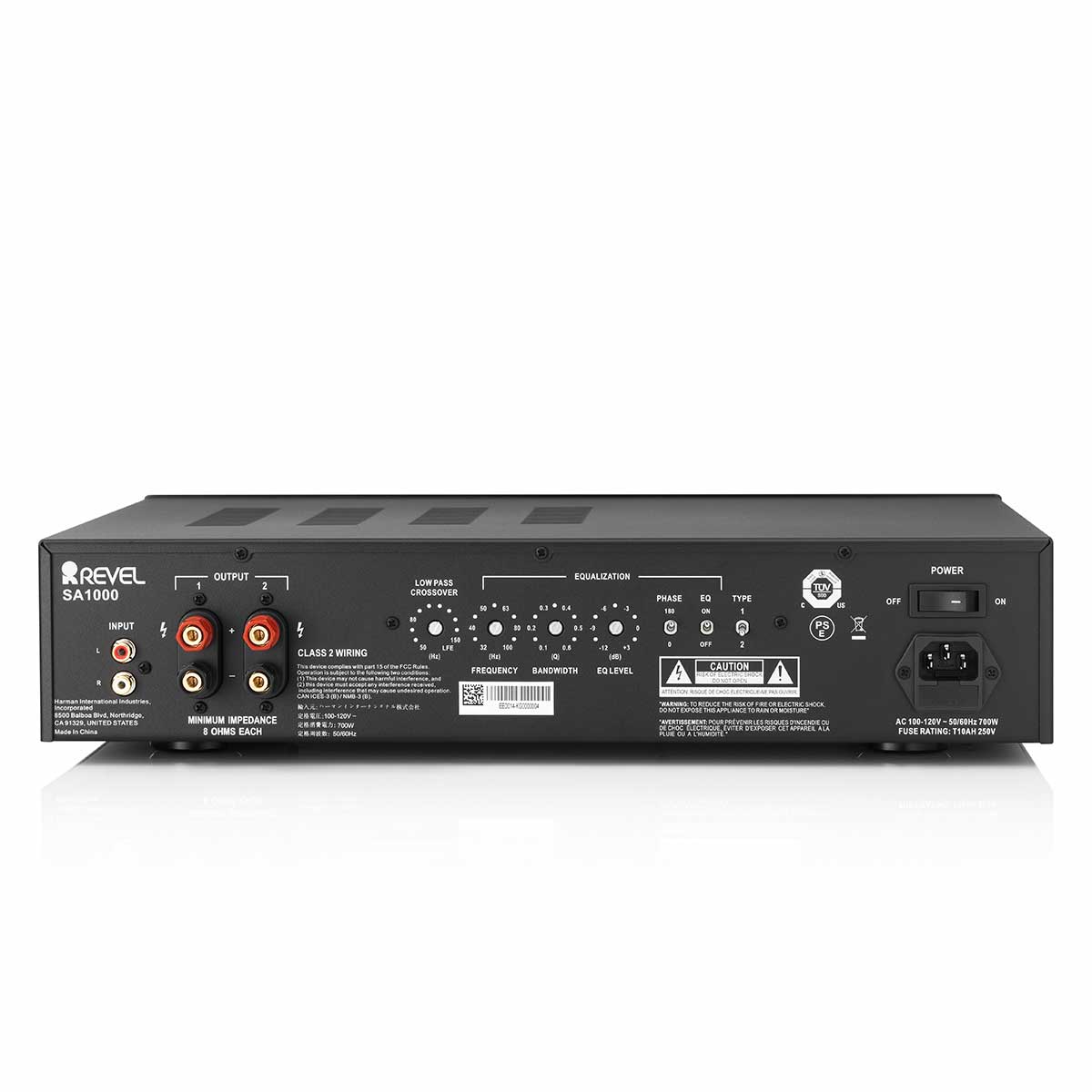

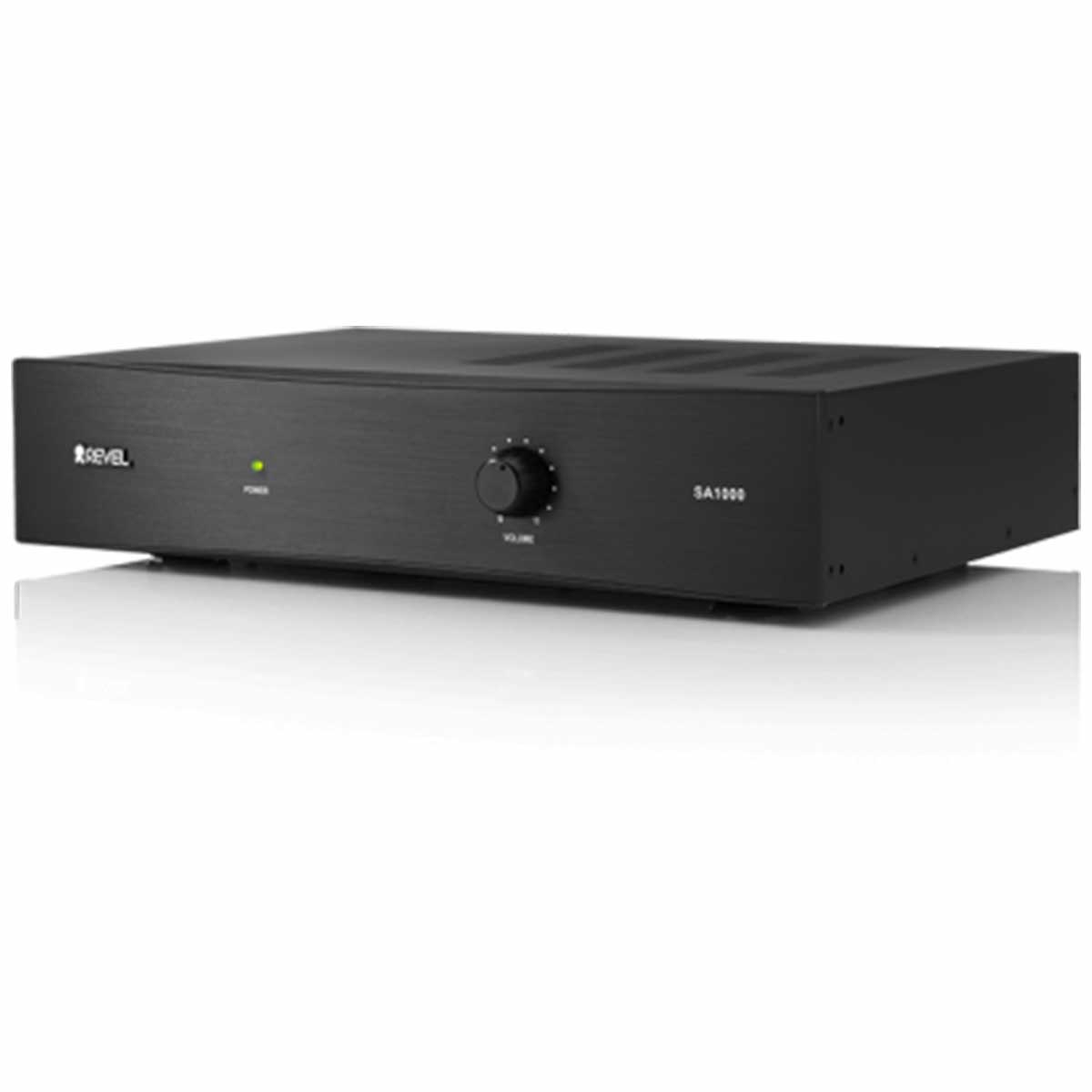

The Revel SA1000 is a high-performance, single-channel Class D amplifier designed for custom subwoofer installations. Optimized for reliability and performance, it features a user-friendly front panel and installer-focused rear panel. This rack-mountable unit is specifically designed to power Revel's B28W in-wall subwoofers, delivering up to 700W RMS (1500W Peak) when powering two modules. It offers dynamic bass and lifelike realism, complementing Revel's architectural audio products for immersive music and home theater experiences.
$1320.00
Owner Satisfaction
4.5
/ 5
Category Rank
1145
/ 1683
#1145 in Power Amplifiers
Price vs Category Average
-84%
Below average
Rated Output Power (RMS) into 4 ohms
700
/ Watts
Who it's for
- Revel subwoofer owners wanting perfectly matched system performance
- Audiophiles seeking high-impact bass for large listening rooms
- Listeners needing precise room-specific bass calibration
Who should skip it
- Budget-conscious buyers looking for more affordable audio solutions
- Casual users preferring simple plug-and-play audio setups
- Homeowners with limited space or poor ventilation options
Performance breakdown
Subwoofer Power Delivery
Delivers massive 1500W peak output for deep, authoritative bass impact.
Installation Versatility
Rack-mountable design simplifies integration into professional custom home theater setups.
Room Equalization
Single-band PEQ provides essential tuning to tame challenging room acoustics.
System Protection
Robust thermal and short-circuit safeguards ensure long-term operational reliability.
Efficiency
Class D architecture maintains high performance while keeping power consumption efficient.
Connectivity
Dual-banana outputs allow for quick, secure connections to dual subwoofer modules.
Key Specs
Rated Output Power (RMS) into 4 ohms
700 Watts
Peak Power
1500 Watts
Rated Impedance
8 Ohms per speaker output
Minimum Load Impedance
4 Ohm
Input Sensitivity to 1W @ 50HZ
16.3mVrms +/- 1dB
Input Overload
2.0Vrms
Input Impedance
>10K Ohms
Low Pass Crossover Range
50-150Hz
Features
- User-adjustable Single-band PEQ for room equalization
- Short-circuit and over-current protection
- Over-temperature compensation
- Two dual-banana output connectors for easy connection
- Completes in-wall/in-ceiling solutions
- Connect up to two B28W Subwoofers
- Designed for standard 2 x 4 stud frame construction
- Self-contained subwoofer module with integrated back-box
What customers say
Customers consistently praise the Revel SA1000 for its exceptional sound quality, describing it as remarkably clear and powerful, transforming their audio experience. Many highlight the sophisticated design and robust build, noting its premium feel and seamless integration into high fidelity systems. While an investment, users frequently express satisfaction with its performance, affirming its position as a top tier component. The product delivers a refined listening experience, reflecting meticulous engineering and a commitment to audio excellence.
Know before you buy
Yes, the SA1000 is designed to power up to two Revel B28W in-wall subwoofers simultaneously, delivering a total of 700W RMS.
The user-adjustable single-band parametric equalizer (PEQ) allows you to target and smooth out specific room-related bass peaks, helping you achieve more accurate and balanced low-frequency performance.
Yes, the system is specifically engineered for standard 2x4 stud frame construction, making it an ideal choice for custom in-wall or in-ceiling subwoofer installations.
Yes, the SA1000 includes integrated protection against short-circuits, over-current conditions, and excessive heat to ensure long-term reliability.
Yes, the SA1000 features an adjustable low-pass crossover ranging from 50Hz to 150Hz, allowing you to fine-tune the integration between your subwoofers and main speakers.
Yes, it features an auto-turn-on function with an input sensitivity of approximately 10mV at 50Hz, ensuring the unit wakes up automatically when it receives an audio signal.
Still have a question?
Ask Hayley anything about this product before you decide.
Ready to buy?
$1320
