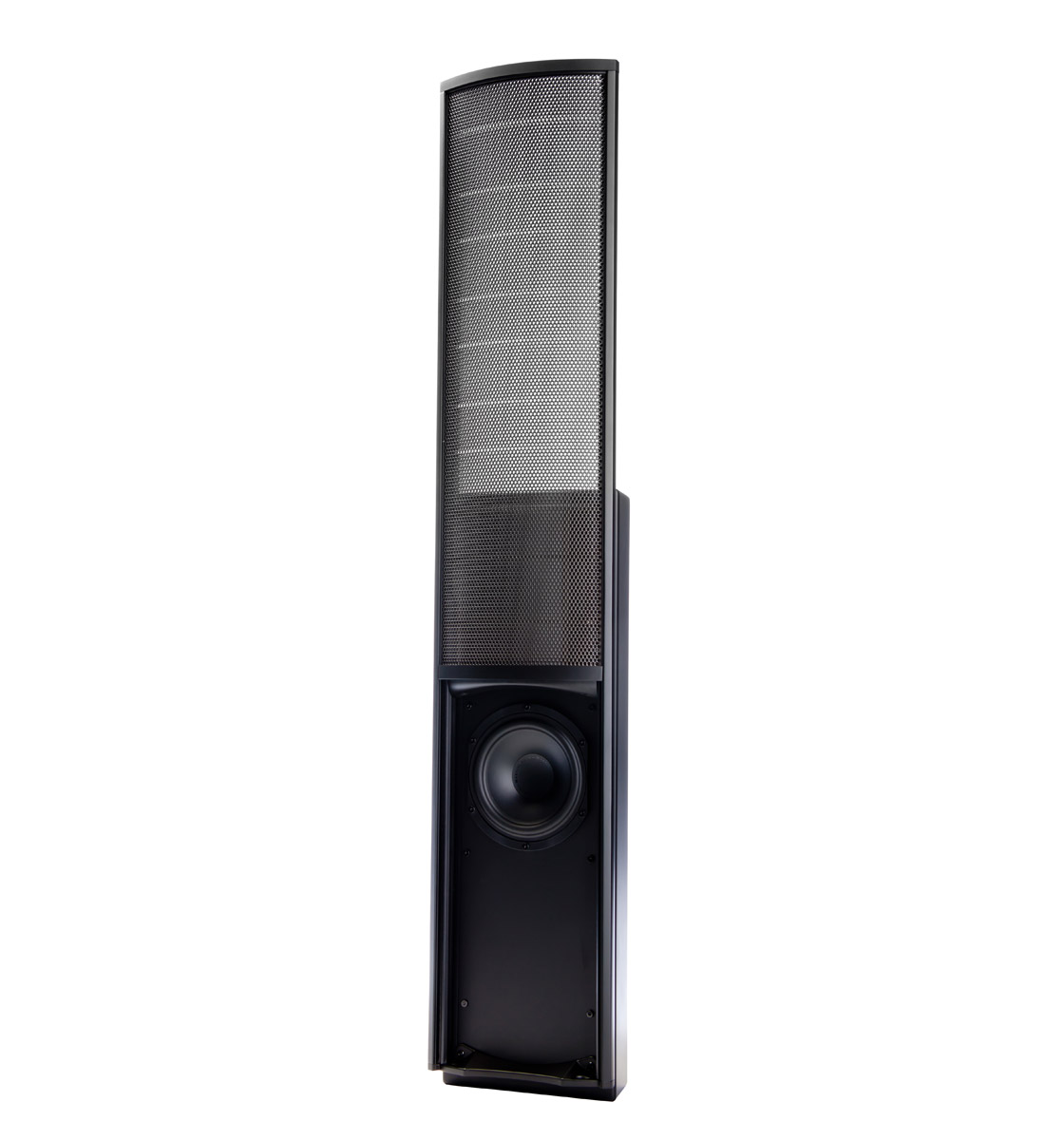

MartinLogan On Wall Electrostatic Surround
Best surround solution for audiophiles building a high-end home theater.
Experience immersive audio with the MartinLogan On Wall Electrostatic Surround speaker. This slim, on-wall hybrid electrostatic speaker features advanced XStat technology for exceptional efficiency and dynamics. Its radical extruded aluminum AirFrame houses a CLS XStat transducer and a 6.5" high-excursion fiber cone woofer with a bass reflex design for robust low-frequency handling. The pivoting wall bracket allows for easy focus of your surround sound experience, making it ideal for home theater setups and complementing any electrostatic loudspeaker system.
$2199.00
Owner Satisfaction
4.5
/ 5
Category Rank
3269
/ 8447
#3269 in Speakers
Price vs Category Average
+50%
Above average
Frequency Response
68220003
/ –, Hz ±dB
Who it's for
- Audiophiles seeking transparent and highly detailed sound reproduction
- Home theater enthusiasts wanting an immersive and spacious soundstage
- Design-conscious homeowners preferring a clean and minimalist aesthetic
Who should skip it
- Users wanting a standalone system without additional subwoofer hardware
- Listeners who frequently move around the room while listening
- Casual buyers looking for a simple, plug-and-play speaker setup
Performance breakdown
High-Frequency Clarity
The XStat electrostatic transducer delivers unmatched detail and crystalline sonic transparency.
Installation Versatility
Pivoting brackets allow precise surround sound positioning in tight wall spaces.
Bass Impact
Fiber cone woofer provides solid low-end support for a slim profile.
Design Aesthetics
The extruded aluminum AirFrame offers a sleek, modern look for theaters.
Amplifier Compatibility
Flexible impedance handling works seamlessly with most standard home theater receivers.
Soundstage Immersion
Line source dispersion creates a wide, enveloping surround sound experience.
Key Specs
Frequency Response
68–22,000 Hz ±3dB
Horizontal Dispersion
30 degrees
Vertical Dispersion
28" line source
Panel Dimensions
28" × 8.6"
Panel Radiating Area
241 in2
Sensitivity
90 dB/2.83 volts/meter
Impedance
6 Ohms, 1.3 @ 20kHz; compatible with 4, 6, or 8 Ohm rated amplifiers
Recommended Amplifier Power
20‒300 watts per channel
Features

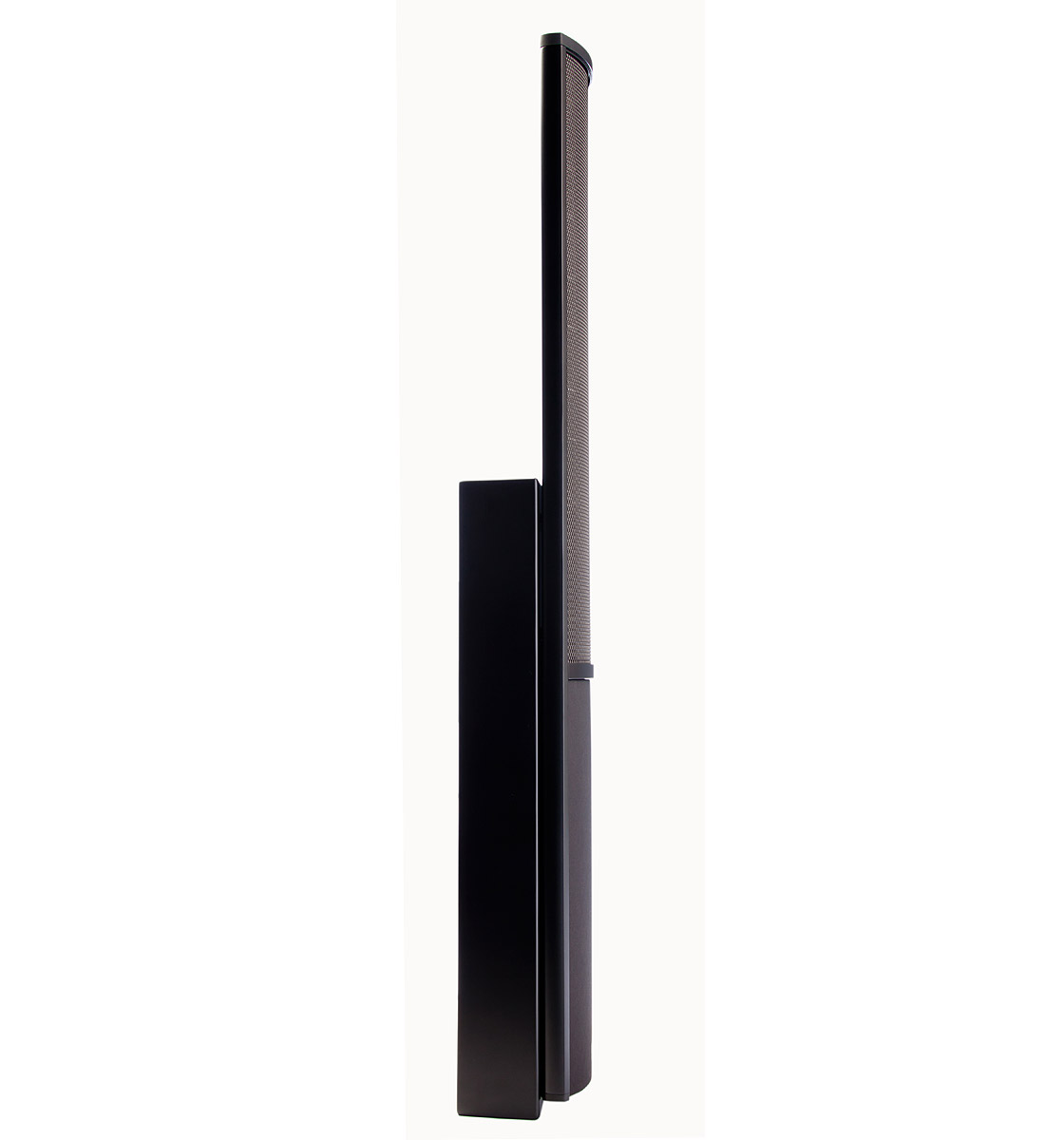

- Slim on-wall profile, only 6.5" deep
- XStat CLS electrostatic transducer for high frequencies
- 6.5" high excursion fiber cone woofer for low frequencies
- Bass reflex port for enhanced bass response
- On-wall swivel mounting with included pivoting bracket
- Proprietary Vojtko filtering technology
- Custom five-way binding posts for flexible connections
- Low-voltage DC power supply for simplified setup
What customers say
Customers consistently praise the MartinLogan On Wall Electrostatic Surround speakers for their exceptional sound quality and elegant design. Listeners frequently highlight the crystal clear audio reproduction and immersive soundstage, noting how these speakers elevate their home theater experience. The sleek, on wall aesthetic is also a significant draw, allowing for seamless integration into modern living spaces without compromising acoustic performance. This combination of superior audio fidelity and sophisticated appearance makes them a highly regarded choice among audiophiles seeking premium surround sound.
Know before you buy
Yes, these speakers are designed to integrate seamlessly with any electrostatic loudspeaker system. They are compatible with 4, 6, or 8 Ohm amplifiers and handle between 20 and 300 watts per channel.
The speakers measure 48.8 inches tall and 9.4 inches wide. Because they feature a slim 6.5-inch depth and include a pivoting wall bracket, they are designed to fit discreetly in most home theater environments.
Yes, they require a low-voltage DC power supply to energize the electrostatic transducer. The power draw is minimal, consuming a maximum of 2 watts per speaker during operation and less than 1 watt in standby.
The pivoting bracket allows you to angle the speaker toward your primary listening position. This is essential for electrostatic speakers, as it helps you precisely focus the soundstage for a more immersive surround experience.
While the 6.5-inch high-excursion woofer and bass reflex port provide robust low-frequency handling, they have a frequency response floor of 68 Hz. For a full-range home theater experience, pairing these with a dedicated subwoofer is recommended to handle the deepest bass frequencies.
The XStat CLS electrostatic transducer provides exceptional clarity and detail in the high and mid frequencies. Because it acts as a line source, it offers a unique, expansive soundstage that is often more transparent and dynamic than traditional cone-based drivers.
