Wilson Dual Antenna Expansion Kit 50 Ohm
Best signal expansion for existing booster system users.

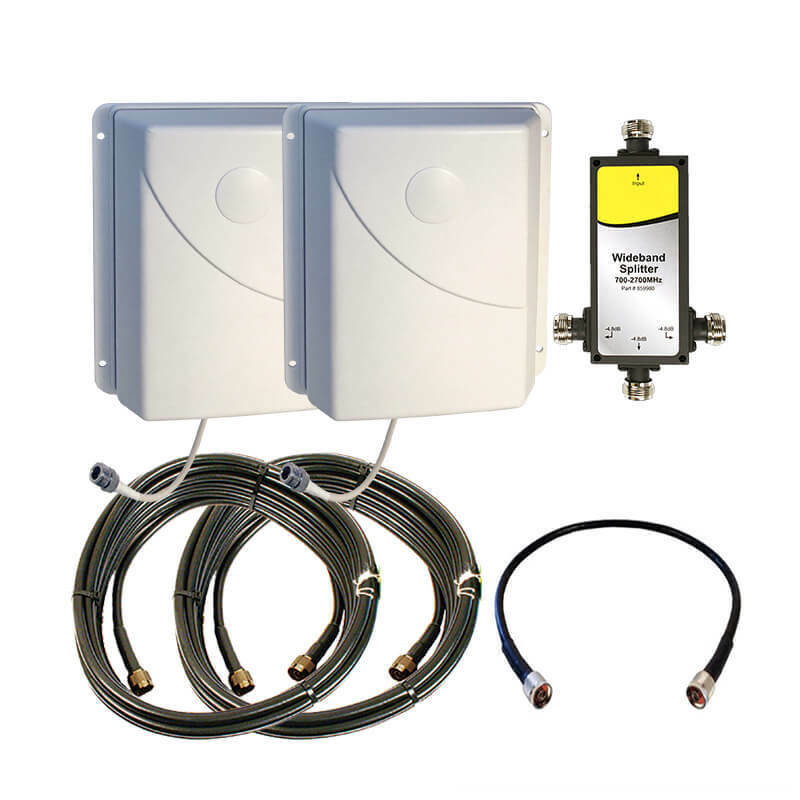

This Wilson 50 Ohm Dual Antenna Expansion Kit (309907-50N) is designed to enhance indoor signal coverage for building boosters. It includes two panel antennas, all necessary cables, and a three-way splitter, allowing for the installation of two additional indoor antennas. This kit effectively broadcasts 3G and 4G LTE signals throughout a building, making it compatible with all 50 Ohm in-building signal boosters. It offers a gain of up to 10.6 dB, ensuring improved cellular reception where it's needed most. The directional antennas and N-Female connectors provide a reliable and focused signal distribution.
$429.99
Owner Satisfaction
4.3
/ 5
Category Rank
1004
/ 1314
#1004 in Antennas
Price vs Category Average
+47%
Above average
Gain
7008005.28248944.48809604.21710188010.11850199010.6211021708.2
/ - MHz - dB, - MHz - dB, - MHz - dB, - MHz - dB, - MHz - dB, - MHz - dB
Who it's for
- Homeowners or businesses needing broader signal coverage
- Users experiencing uneven signal strength in large areas
- Existing Wilson 50 Ohm booster owners seeking to expand coverage
Who should skip it
- New users without a compatible 50 Ohm Wilson booster system
- DIY installers preferring simple, quick setup processes
- Less experienced installers or those avoiding complex configurations
Key Specs
Gain
700-800 MHz - 5.2 dB, 824-894 MHz - 4.4 dB, 880-960 MHz - 4.2 dB, 1710-1880 MHz - 10.1 dB, 1850-1990 MHz - 10.6 dB, 2110-2170 MHz - 8.2 dB
Radiation
Directional
Impedance
50 Ohms
Maximum Input Power
50W
Beamwidth Horizontal Plane
70 / 60 Deg
Beamwidth Vertical Plane
50 / 45 Deg
Connectors
N-Female
Dimensions
8.27 x 7.09 x 1.73 inch / 21 x 18 x 4.39 cm
Features
- Broadcast 3G & 4G LTE signal indoors
- Compatible with all 50 Ohm in-building signal boosters
- Up to 10.6 dB gain for improved reception
- Includes two panel antennas, cables, and splitter
- Directional radiation for focused signal
What customers say
Customers consistently praise this expansion kit for its straightforward installation and robust build quality. Many users find it significantly enhances their existing signal booster system, extending coverage effectively across larger areas or multiple rooms. The components are generally regarded as durable and reliable, contributing to a dependable performance that meets expectations for expanding connectivity. This kit offers a practical solution for those seeking to optimize their signal strength with minimal fuss.
