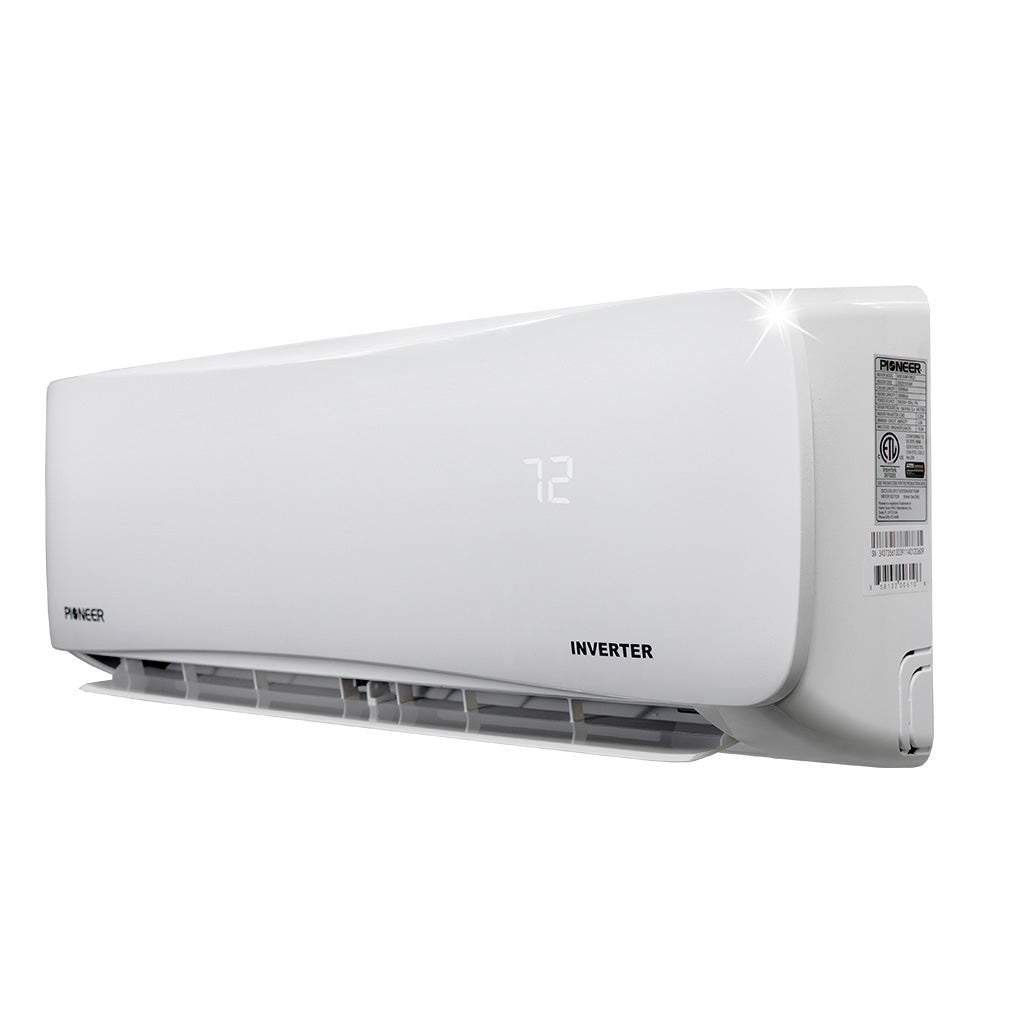

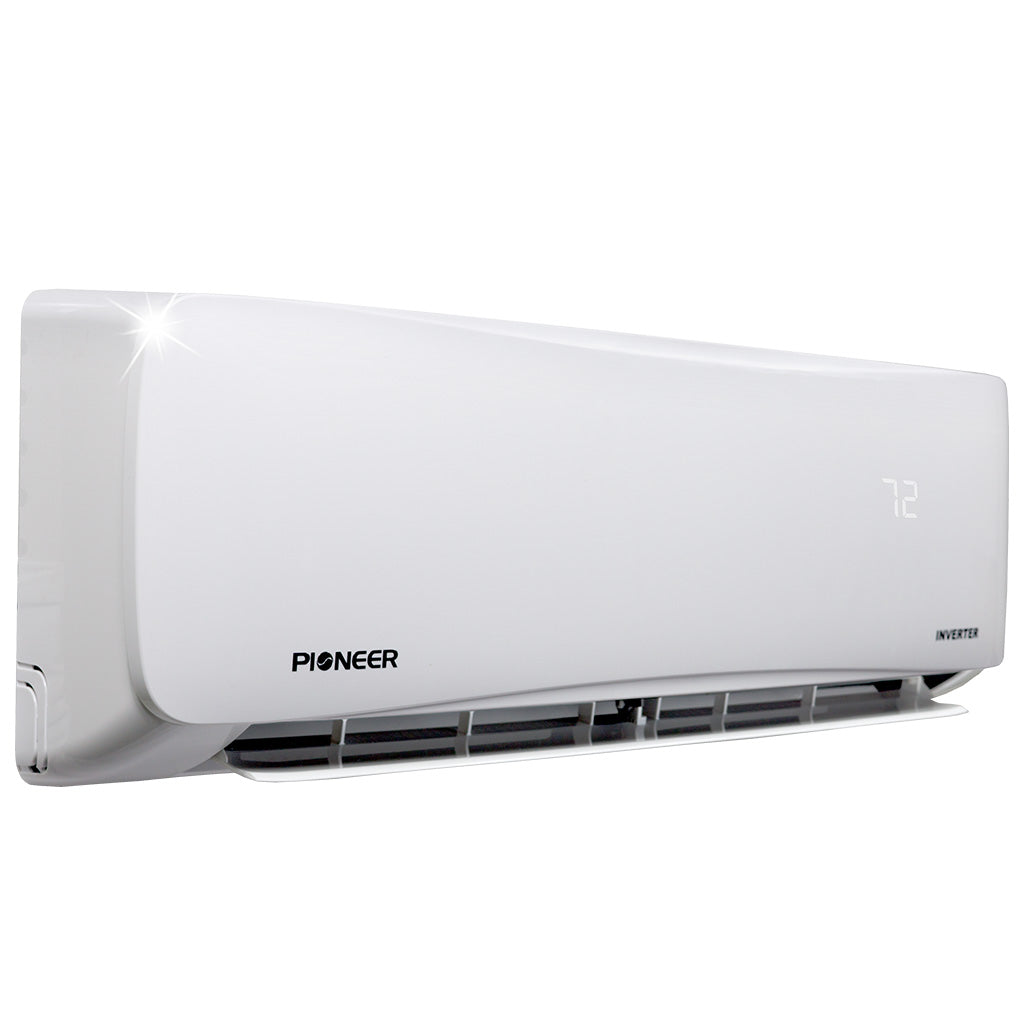

Pioneer Multi Zone 9,000 BTU Quantum Series Wall Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V
Best efficient climate control for small rooms in multi-zone home systems.
Enhance your home's climate control with the Pioneer Quantum Series Indoor Unit, a 9,000 BTU wall-mount air conditioner and heat pump. Engineered for multi-zone split systems, it boasts advanced Inverter++ technology for superior energy efficiency, achieving a 24 SEER rating. This unit provides both cooling and heating, perfect for spaces up to 350 sq. ft. It connects seamlessly to a compatible Pioneer outdoor unit via a signal cable and includes a user-friendly wireless remote for effortless operation. The included wall mounting plate simplifies installation, delivering a sleek and effective climate solution.
$238.00
Owner Satisfaction
4.5
/ 5
Category Rank
205
/ 2066
#205 in Electronics
Price vs Category Average
-8%
Below average
Cooling Capacity
9000
/ , BTU/h
Who it's for
- Budget-conscious homeowners seeking lower monthly utility bills
- Residents needing a single solution for all-season temperature management
- Users wanting independent temperature control for individual rooms
Who should skip it
- Shoppers looking for a standalone, plug-and-play cooling solution
- DIY enthusiasts lacking specialized HVAC installation tools and experience
- Owners trying to cool or heat large, open-concept living spaces
Performance breakdown
Energy Efficiency
The 24 SEER rating significantly lowers long-term operational electricity costs.
Acoustic Comfort
Ultra-quiet low-speed operation ensures minimal disruption in bedrooms or offices.
Climate Versatility
Dual-function heating and cooling provides year-round comfort in one compact unit.
Installation Ease
Standard wall-mount design simplifies setup for experienced DIYers and professionals alike.
System Scalability
Optimized for multi-zone configurations, allowing for precise room-by-room climate control.
Control Precision
Variable speed inverter technology maintains consistent temperatures without frequent cycling.
Key Specs
Cooling Capacity
9,000 BTU/h
Heating Capacity
10,000 BTU/h
Energy Efficiency Rating (SEER)
24
Heating Efficiency (HSPF)
11.3
Power Supply
208-230V, 60Hz, 1Ph
Dimensions (WDH)
31-1/2 x 7-3/8 x 11-5/8 inches
Net Weight
18 Lbs
Line Set Size
1/4"-3/8"
Features
- High-efficiency Inverter++ technology
- Dual cooling and heating functions
- Optimized for multi-zone systems
- Precise comfort with variable speed
- Includes wireless remote control
- Easy wall mount installation
- Exceeds outdoor unit capacity
- Customizable system configurations
What customers say
The Pioneer Quantum Series unit is highly praised for its exceptionally quiet operation, enhancing living space comfort. Its Inverter++ technology provides powerful heating and cooling with impressive energy efficiency, leading to reduced utility costs. Users appreciate the unit's rapid temperature adjustments, even in challenging weather conditions. While installation can be complex for multi-zone setups, the overall consensus highlights a superb balance of high performance, superior efficiency, and competitive pricing. This Pioneer unit is a strongly recommended solution for effective climate control, offering excellent value and reliable performance.
Know before you buy
No, this is an indoor component designed specifically for a Pioneer multi-zone mini-split system. It requires a compatible Pioneer outdoor condenser unit to function.
This unit is designed to handle spaces up to 350 square feet. Performance may vary based on your home's insulation, ceiling height, and local climate conditions.
Yes, it functions as a heat pump, providing both cooling during the summer and heating during the winter. It is rated for high efficiency in both modes.
The noise level ranges from 24.5 dB(A) on its lowest setting to 39 dB(A) on high. At the lowest setting, it is exceptionally quiet and suitable for bedrooms or home offices.
This unit requires a 208-230V power supply. Because it is part of a multi-zone system, the electrical connection is typically routed through the outdoor condenser unit.
Yes, the unit comes with a wireless remote control that allows you to adjust temperature, fan speed, and modes from anywhere in the room. It also features a digital display on the unit for quick status checks.
