Pioneer Quantum Ultra 9,000 BTU 23 SEER2 230V 8-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Best ceiling-mounted climate solution for energy-conscious homeowners seeking discreet, even cooling.

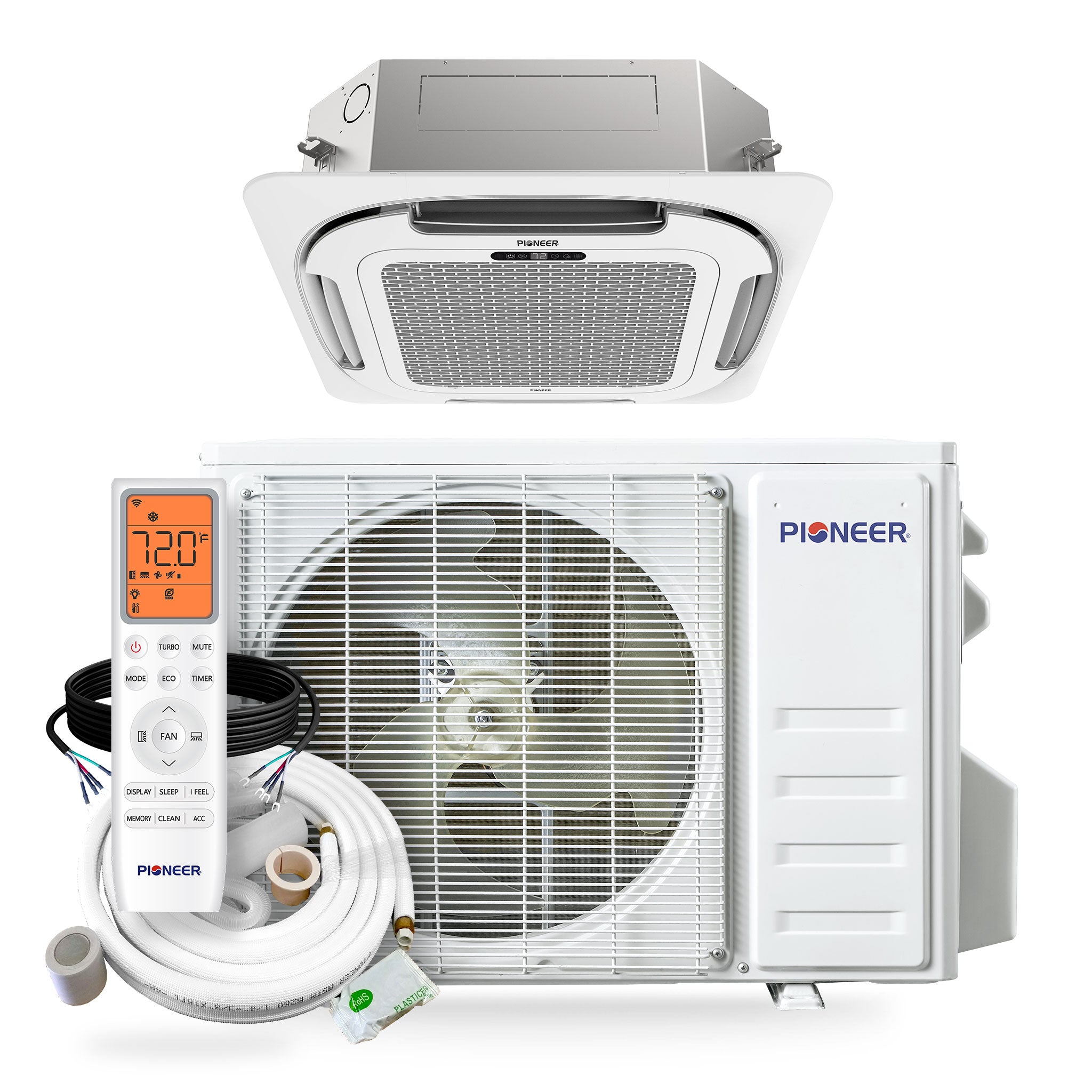

Experience advanced climate control with the Pioneer Quantum Ultra Ceiling Cassette. This 9,000 BTU ductless mini-split system delivers exceptional energy efficiency with a 23 SEER2 rating, powered by inverter technology for precise temperature management. Enjoy year-round comfort with its heating and cooling capabilities, enhanced by an 8-way 360° airflow system for even distribution. Integrated Wi-Fi allows for convenient control via the Pioneer Airlink app, making it easy to manage your home's environment from anywhere. This full set includes both the indoor cassette and outdoor unit.
$1368.00
Owner Satisfaction
4.6
/ 5
Category Rank
38
/ 937
#38 in Air Conditioners
Price vs Category Average
-33%
Below average
Cooling Capacity
9500
/ , BTU/H
Who it's for
- Budget-conscious homeowners seeking long-term energy savings
- Design-focused users wanting unobtrusive, even airflow
- Climate-conscious residents needing versatile year-round temperature control
Who should skip it
- DIY enthusiasts lacking professional HVAC installation experience
- Shoppers prioritizing low upfront costs over long-term efficiency
- Homeowners who prefer simple, accessible maintenance routines
Performance breakdown
Energy Efficiency
The 23 SEER2 rating sets a high bar for monthly savings.
Air Distribution
The 8-way airflow design eliminates hot spots throughout the room.
Smart Connectivity
Integrated Wi-Fi and app control make remote climate management effortless.
Extreme Climate Performance
Reliable operation in harsh temperatures ensures comfort year-round.
Installation Convenience
Built-in drain pump simplifies setup for professional installers.
Maintenance Ease
Self-cleaning cycles and washable filters keep upkeep minimal.
Key Specs
Cooling Capacity
9,500 BTU/H
Energy Efficiency Rating
23 SEER2 / 12.5 EER2
Heating Capacity
9,500 BTU/H
HSPF2 Rating
10.5
COP Rating
3.8
Voltage Requirement
208/230V, 60Hz, 1Ph
Refrigerant Type
R454b
Operating Ambient Range (Heating)
-13°F
Features
- 8-way 360° airflow for even comfort
- Wi-Fi enabled for remote app control
- Inverter heat pump for efficient heating/cooling
- Ultra-low ambient operation in extreme temperatures
- Built-in drain pump for easy installation
- Self-clean cycle for maintenance
- ECO and SLEEP modes for energy savings
- IFEEL function for precise temperature sensing
What customers say
Customers highly value the Pioneer Quantum Ultra for its superior efficiency and quiet performance, noting significant energy savings. The ceiling cassette design is a major draw, offering discreet integration and excellent aesthetic appeal. Users consistently praise the 8-way airflow for achieving remarkably even temperature distribution throughout rooms. While the long-term satisfaction is extremely high due to its powerful operation, the installation process presents notable complexity, often requiring professional expertise. Overall, this system is viewed as a premium investment delivering exceptional comfort and design integration for those prioritizing top-tier performance.
Know before you buy
Unlike standard units that blow air in one or two directions, this ceiling cassette distributes air through eight different outlets. This design ensures a more uniform temperature throughout the room, eliminating hot or cold spots.
Yes, this is a full-featured heat pump capable of heating even in extreme cold. It is rated for operation in ambient temperatures as low as -13°F, making it a reliable primary or supplemental heat source.
Yes, this system requires professional installation by a licensed HVAC technician. It involves handling refrigerant, electrical wiring for 230V power, and mounting the indoor cassette into the ceiling, which is beyond the scope of a standard DIY project.
The integrated condensate pump allows you to move water away from the unit even if the drain line cannot be gravity-fed. This provides much more flexibility when choosing a mounting location in your ceiling.
The IFEEL function uses a sensor in the remote control to monitor the temperature exactly where you are sitting, rather than just at the ceiling unit. This allows the system to adjust its output to maintain your preferred comfort level in your immediate vicinity.
Yes, this unit requires a 208/230V, 60Hz, single-phase power supply. Please ensure your electrical panel and wiring are compatible with these specifications before purchasing.
The unit is Wi-Fi enabled and connects to the Pioneer Airlink app. Once paired, you can adjust temperatures, change modes, and set schedules from your smartphone from anywhere with an internet connection.
