Pioneer

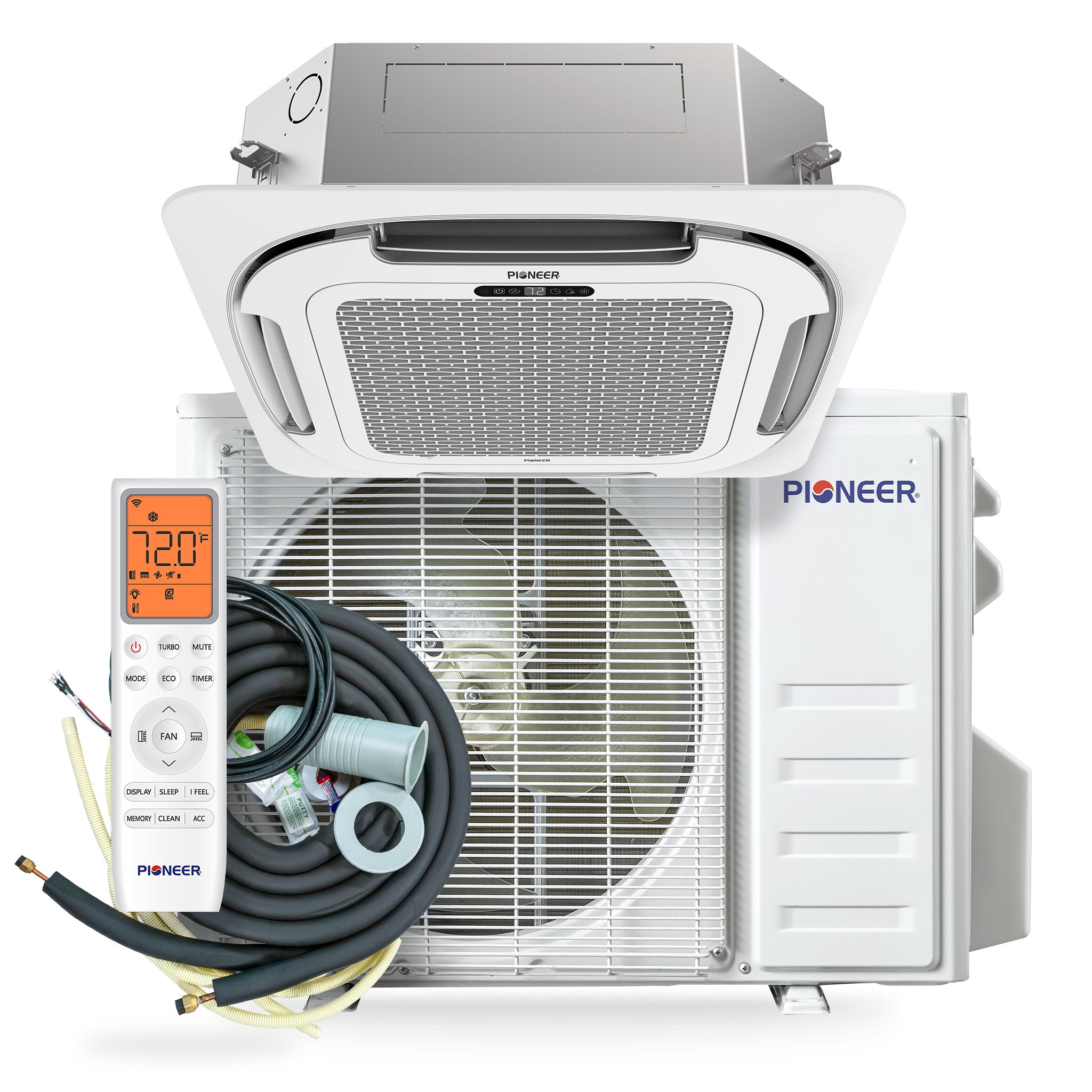

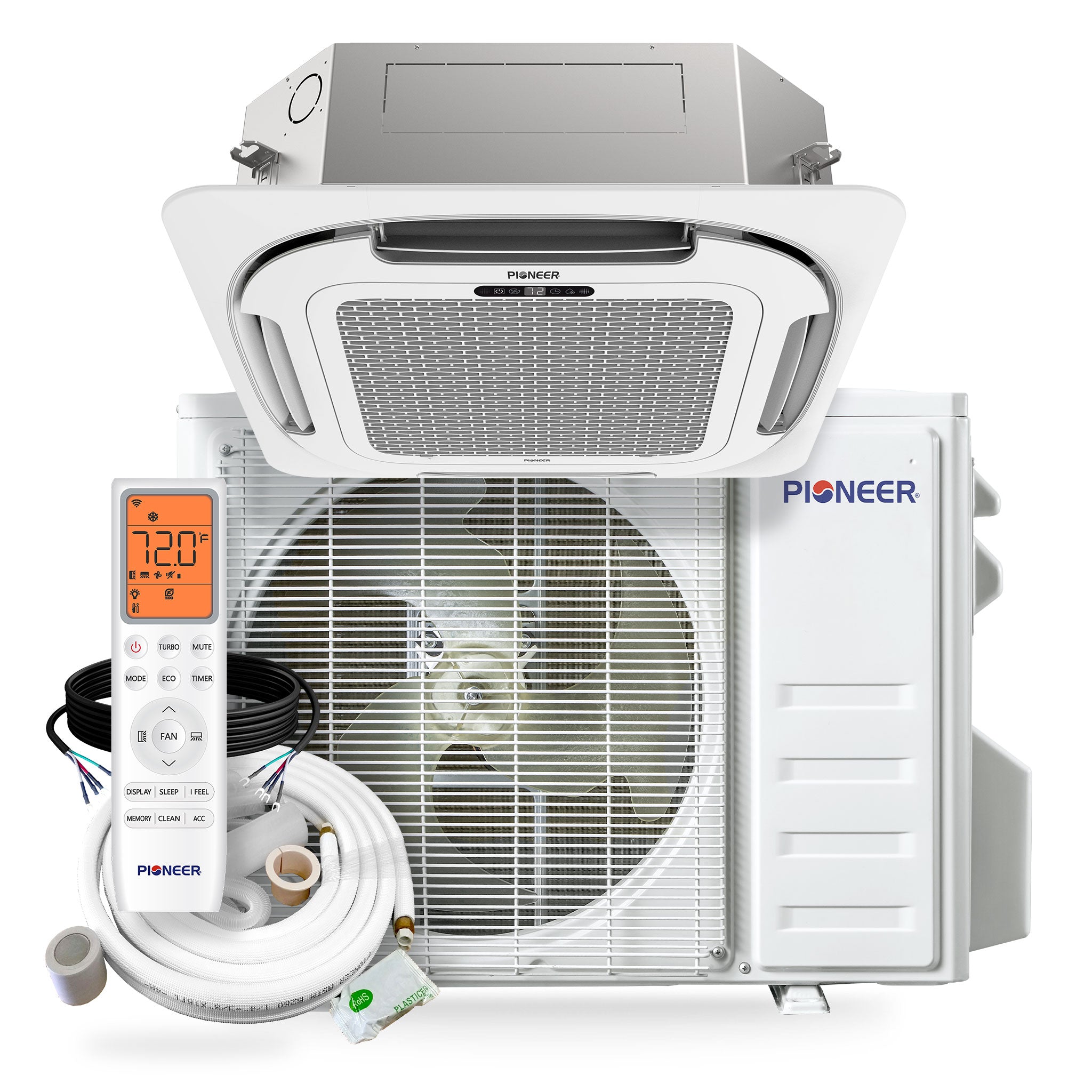

Pioneer Quantum Ultra 18,000 BTU 20.5 SEER2 230V 8-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Best discreet climate control for homeowners seeking high-efficiency ceiling installation.
Discover the Pioneer Quantum Ultra Ceiling Cassette, a high-efficiency ductless mini-split system designed for discreet ceiling installation. This unit delivers powerful 18,000 BTU heating and 16,000 BTU cooling with an impressive 20.5 SEER2 rating. Featuring advanced variable-speed DC inverter technology, it ensures precise temperature control and significant energy savings. The system operates on a 230V supply and utilizes eco-friendly R454b refrigerant, offering multiple modes and intelligent airflow for optimal comfort and a seamless integration into your living space.
$1768.00
Owner Satisfaction
4.6
/ 5
Category Rank
10
/ 937
#10 in Air Conditioners
Price vs Category Average
-13%
Below average
Power Supply
208230601
/ ~V, Hz, Ph
Who it's for
- Homeowners prioritizing long-term energy savings and lower utility bills
- Design-conscious users wanting a clean, unobtrusive climate control solution
- Residents needing a single, versatile system for year-round comfort
Who should skip it
- DIY enthusiasts lacking professional HVAC installation experience
- Users who prefer easy, ground-level access for routine filter maintenance
- Budget-focused shoppers seeking the most affordable cooling options
Performance breakdown
Energy Efficiency
The 20.5 SEER2 rating delivers top-tier performance with minimal electricity consumption.
Temperature Precision
Variable-speed inverter technology maintains consistent comfort without frequent, noisy cycling.
Acoustic Comfort
Quiet operation ensures the unit remains virtually silent in residential living spaces.
Installation Versatility

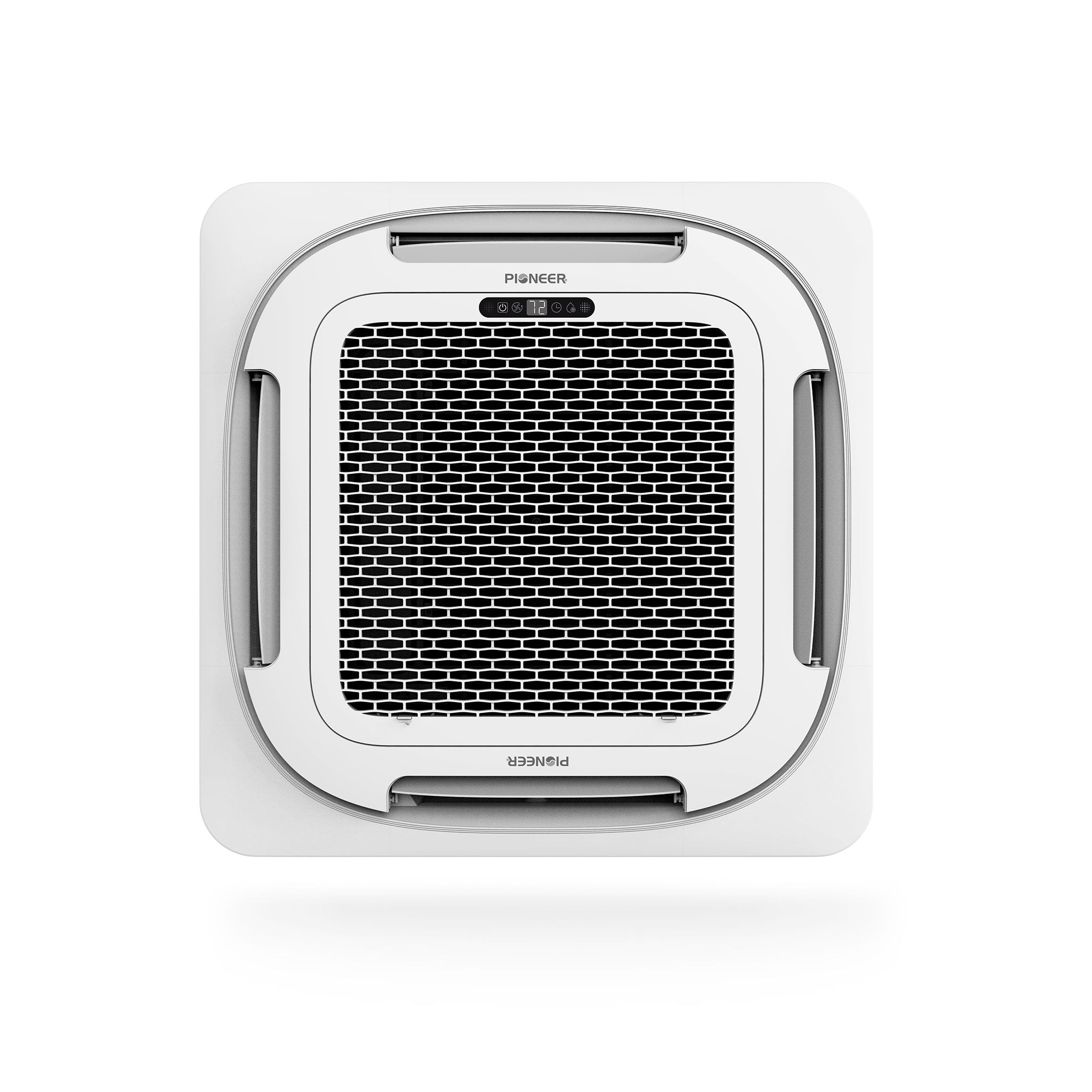

The compact ceiling cassette design offers a clean, unobtrusive aesthetic profile.
Airflow Distribution
Advanced 8-way airflow control provides superior coverage for uniform room cooling.
Maintenance Ease
Washable filters and standard drainage simplify routine upkeep for the homeowner.
Key Specs
Power Supply
208~230V, 60Hz, 1Ph
Cooling Rated Capacity
16,000 BTU/h
Cooling SEER2
20.5 BTU/W.h
Heating Rated Capacity
18,000 BTU/h
Heating HSPF2
8.5 BTU/W.h
Refrigerant Type
R454b
Indoor Unit Dimensions (WDH)
22-1/2 x 22-1/2 x 9-5/8 Inches
Indoor Unit Net Weight
32.0 lbs
Features
- Powerful heating and cooling
- High-efficiency SEER2 rating
- Variable-speed inverter technology
- Eco-friendly R454b refrigerant
- Multiple operating modes
- Advanced airflow control
- Easy-to-use remote control
- Quiet operation
What customers say
Customers highly value the Pioneer Quantum Ultra for its exceptional efficiency and remarkably quiet performance, translating to significant utility savings and superior comfort. The 18,000 BTU capacity effectively manages large zones, providing rapid and reliable temperature control in all modes. While the unit delivers top-tier performance, the ceiling cassette design introduces installation complexity, often requiring professional expertise for mounting and drainage setup. Minor initial confusion exists with the advanced airflow controls. Despite these setup hurdles, the overall consensus confirms the system offers outstanding long-term value and reliability, positioning it as a premium choice in the ductless market.
Know before you buy
The 20.5 SEER2 rating indicates high energy efficiency, meaning the system uses less electricity to cool your space compared to standard units. Over time, this efficiency translates into lower monthly utility costs while maintaining consistent comfort.
Yes, the ceiling cassette design is ideal for residential spaces where you want to save wall space and maintain a clean, discreet aesthetic. Because it mounts flush into the ceiling, it is perfect for rooms with drop ceilings or accessible attic space above.
The unit operates between 34 and 50 dB(A), which is comparable to the sound of a quiet library or a soft whisper. Its variable-speed inverter technology allows it to run at lower, quieter levels once the desired temperature is reached.
Yes, this system requires professional installation by a licensed HVAC technician. Because it involves handling refrigerant and electrical wiring for a 230V power supply, professional setup is necessary to ensure safety and maintain the manufacturer's warranty.
The indoor unit features a washable filter that should be cleaned regularly to ensure optimal airflow and air quality. You should also periodically check the continuous drain system to ensure it remains clear and free of obstructions.
Yes, this is a heat pump system capable of both cooling and heating. It provides 16,000 BTU of cooling power and 18,000 BTU of heating power, making it a versatile solution for year-round climate control.
