Pioneer Vertex 24,000 BTU 20 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump
Experience year-round comfort with the Pioneer Vertex 24,000 BTU Ducted Central Split Heat Pump. This system efficiently heats and cools your entire home through existing ductwork, maintaining consistent temperatures in every room. Its advanced variable-speed DC Inverter technology ensures remarkable energy savings with a 20.0 SEER2 rating. Designed for dependable performance, it operates effectively even in cold conditions down to -4°F and utilizes the eco-friendly R454b refrigerant. Enjoy effortless climate control with the included digital controller or a standard thermostat.
$3343.00
Owner Satisfaction
4.4
/ 5
Category Rank
425
/ 967
#425 in Air Conditioners
Price vs Category Average
+64%
Above average
Cooling Rated Capacity
240001350031400
/ , BTU/h (Range: ,~, BTU/h)
Who it's for
- High Energy Efficiency (20 SEER2)
- Superior Comfort and Temperature Control
- Dual-Function Heating and Cooling
Who should skip it
- Complex Installation Requirements
- Higher Initial Equipment Cost
- Limited Long-Term Support and Parts Availability
Key Specs
Cooling Rated Capacity
24,000 BTU/h (Range: 13,500~31,400 BTU/h)
Heating Rated Capacity
24,000 BTU/h (Range: 10,200~35,900 BTU/h)
Cooling Efficiency
20.0 SEER2 / 13.3 EER2
Heating Efficiency
9.4 HSPF2 / 2.1 COP2
Power Supply
208~230V, 60Hz, 1Ph
Refrigerant Type
R454b

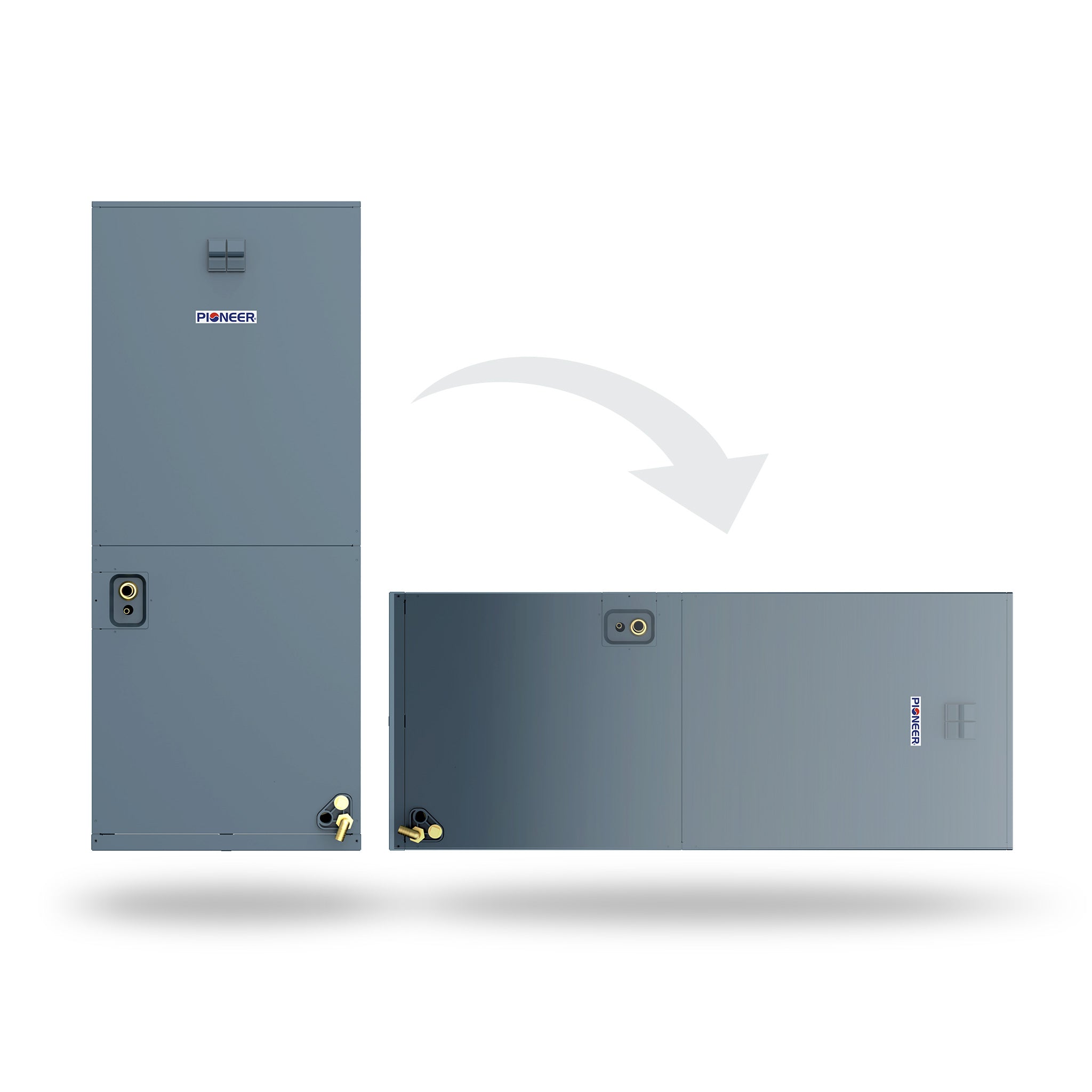

Air Handler Dimensions (WDH)
19-5/8 x 22 x 45-3/4 Inches
Outdoor Unit Net Weight
137 lbs
Features
- Whole-house heating and cooling
- Variable-speed DC Inverter technology
- High-efficiency 20.0 SEER2 rating
- Reliable low-ambient heating
- Communicating system technology
- Digital or analog thermostat control
- Eco-friendly R454b refrigerant
- Designed for existing ductwork
What customers say
The Pioneer Vertex system offers excellent value, combining high 20 SEER2 efficiency with a lower initial price for significant long term energy savings. Users appreciate its quiet operation and consistent comfort thanks to reliable inverter technology that maintains steady temperatures. While the hardware is well regarded, professional installation is essential. Some customers note that customer support and warranty processes may not match larger brands. Overall, the system provides outstanding climate control and energy reductions, making it a smart choice for those aware of its specific installation needs.
