Pioneer

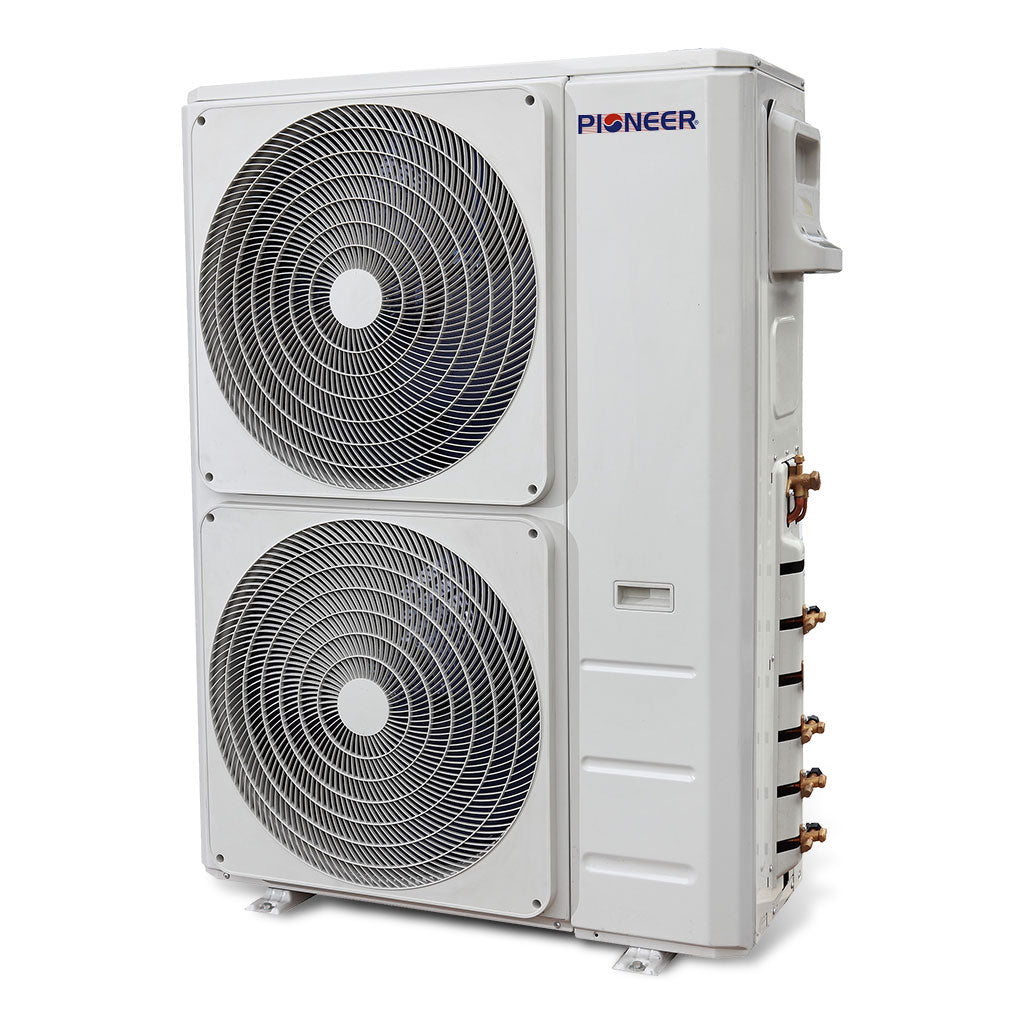

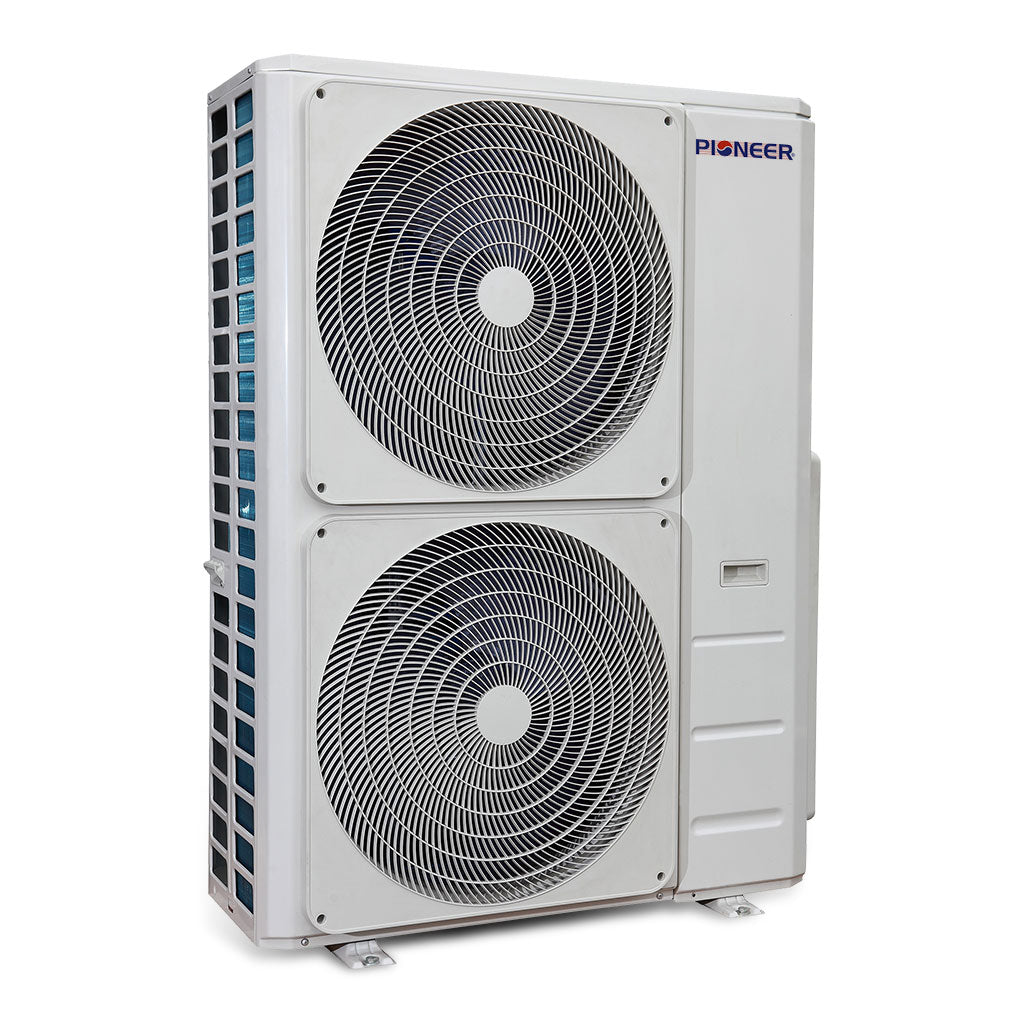

Pioneer Multi (5) Circuit Quantum Ultra Series 22 SEER2 Quint Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V
Best multi-zone climate solution for homeowners seeking year-round energy efficiency.
Experience ultimate comfort and efficiency with the Pioneer Multi-Zone Quantum Ultra outdoor unit. This 42,000 BTU heat pump is designed to power up to five indoor zones, offering a flexible and powerful HVAC solution for homes up to 1,600 sq ft. With an impressive 22 SEER2 rating and Energy-Star certification, it ensures significant energy savings. Engineered for extreme climates, it operates reliably from -13°F to 131°F, providing year-round climate control. This unit comes factory precharged, ready to be paired with compatible Pioneer indoor units for a complete, high-performance system.
$3138.00
Owner Satisfaction
4.5
/ 5
Category Rank
128
/ 963
#128 in Air Conditioners
Price vs Category Average
+54%
Above average
Cooling Rated Capacity
42000
/ , BTU/h
Who it's for
- Homeowners prioritizing long-term utility bill savings
- Families needing customized temperature control for multiple rooms
- Residents seeking quiet, consistent comfort in varying climates
Who should skip it
- Budget-conscious buyers wary of high professional installation fees
- Users requiring redundant systems to avoid total climate failure
- Homeowners living in areas with limited specialized HVAC technicians
Performance breakdown
Energy Efficiency
The 22 SEER2 rating delivers top-tier savings on monthly utility bills.
Climate Versatility
Reliable operation in extreme temperatures from -13°F to 131°F.
Zoning Flexibility
Powers up to five independent zones for customized home comfort.
System Capacity
Robust 42,000 BTU output handles medium-sized homes with ease.
Acoustic Performance
Operates at 65 dB, balancing powerful output with reasonable noise levels.
Installation Convenience
Factory precharged units significantly streamline the professional setup process.
Key Specs
Cooling Rated Capacity
42,000 BTU/h
Cooling SEER2
22.0
Heating Rated Capacity
42,000 BTU/h
Refrigerant Type
R454B
Power Supply
208~230V, 60Hz, 1Ph
Ambient Operation Range
-13°F to 131°F
Net Dimensions (WDH)
42-1/4" x 18-3/8" x 33-1/2"
Net Weight
120.0 lbs
Features
- Powers up to five indoor zones
- Ultra-high efficiency 22 SEER2 rating
- Energy-Star certified for cold climates
- Wide operating temperature range
- Inverter++ technology for optimized performance
- Factory precharged for convenience
- Flexible zone configuration (2-5 zones)
- Supports ducted and ductless indoor units
What customers say
The Quantum Ultra Series is highly praised for its exceptional efficiency and quiet operation, delivering significant energy savings thanks to its 22 SEER2 rating. Its advanced technology ensures a remarkably low noise profile, perfect for homes needing precise climate control. The independent control across five zones offers unmatched customization. While the initial investment is considerable, customers find the superior performance and long term savings provide excellent value. Professional installation is recommended due to the system's complexity, but the overall sentiment is overwhelmingly positive, driven by outstanding performance and efficiency.
Know before you buy
Yes, this unit is highly flexible and can support anywhere from two to five indoor zones depending on your specific layout and cooling needs.
Absolutely. The unit is engineered for extreme climates and is capable of providing reliable heating in temperatures as low as -13°F.
Yes, this outdoor section supports a combination of both ducted and ductless indoor units, allowing you to customize the installation based on the requirements of each room.
Inverter++ technology allows the compressor to adjust its speed dynamically rather than simply turning on and off. This results in more consistent room temperatures, quieter operation, and significantly lower energy consumption.
The unit comes factory precharged with R454B refrigerant, which simplifies the installation process for your HVAC technician.
This system is designed to provide efficient climate control for homes up to approximately 1,600 square feet, though actual performance may vary based on your home's insulation and local climate.
