Audio-Technica
AT-OC9XML
Best moving coil cartridge for audiophiles seeking high-fidelity vinyl playback.

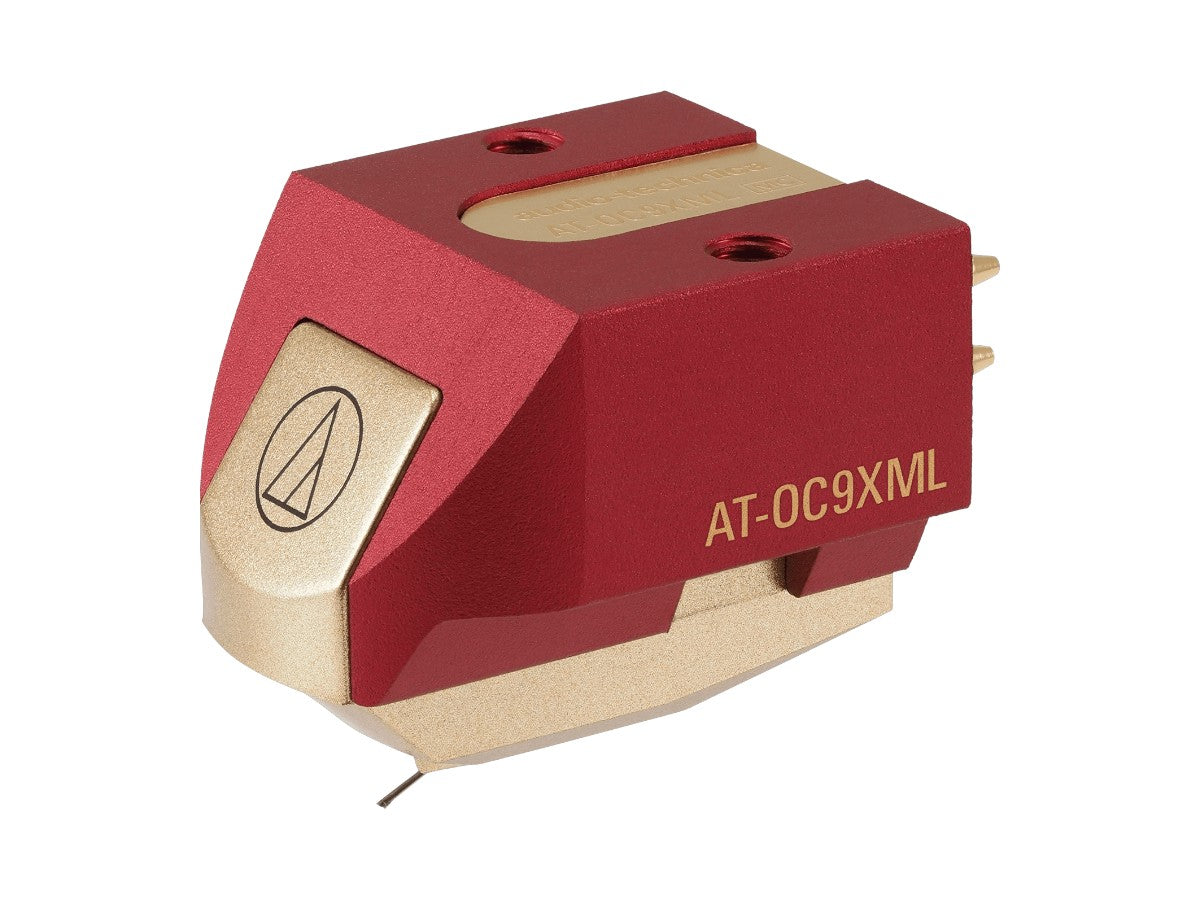

Elevate your vinyl listening experience with the Audio-Technica AT-OC9XML MC Cartridge. This dual moving coil cartridge features a nude Microlinear stylus on a boron cantilever for exceptional accuracy and low distortion. Its PCOCC coils ensure pristine audio transmission, while the rigid aluminum body minimizes unwanted vibrations. Designed for audiophiles, it offers superior channel separation and simplified installation thanks to its pre-threaded body. Experience high-fidelity sound reproduction and precise groove tracking with this sophisticated cartridge.
$643.11
Owner Satisfaction
4.7
/ 5
Category Rank
173
/ 1637
#173 in Turntable Accessories
Price vs Category Average
-49%
Below average
Type
Dual moving coil
/ Dual moving coil
Who it's for
- Audiophiles seeking precise detail and minimal distortion
- Listeners who prefer an accurate, uncolored sound profile
- Budget-conscious enthusiasts wanting high-end moving coil performance
Who should skip it
- Owners lacking a dedicated high-gain phono preamplifier
- Beginners intimidated by complex cartridge alignment procedures
- Users with ultra-lightweight tonearms seeking easy compatibility
Performance breakdown
Tracking Precision
The nude Microlinear stylus navigates complex grooves with surgical accuracy.
Channel Separation
Dual moving coil design delivers a remarkably wide and immersive soundstage.
Resonance Control
Rigid aluminum body effectively dampens vibrations for a cleaner signal path.
Installation Ease
Pre-threaded body design removes the typical frustration of mounting small hardware.
High-Frequency Detail
Boron cantilever ensures lightning-fast transient response and extended treble clarity.
Signal Purity
PCOCC coil wiring maintains exceptional integrity from the groove to output.
Key Specs
Type
Dual moving coil
Body Material
Aluminum
Stylus
Nude Microlinear, square shank
Cantilever
0.28 mm diameter nude boron
Coil Wire
PCOCC
Terminal Pins
Brass
Stylus Curvature
2.2 x 0.12 mil
Static Compliance
20 x 10-6 cm/dyne
Features
- Dual Moving Coil for superior channel separation.
- Microlinear stylus on boron cantilever for accurate tracking.
- PCOCC coils for pure audio transmission.
- Rigid aluminum body reduces resonance.
- Neodymium magnet enhances magnetic energy.
- Pre-threaded body simplifies mounting.
- Minimized distortion for clearer sound.
- High transient response for dynamic audio.
What customers say
This moving coil cartridge earns high praise for its exceptional detail retrieval and resolution, revealing subtle nuances in recordings. Users consistently highlight the MicroLinear stylus for its precise tracking, resulting in low surface noise and a clean, articulate sound. The imaging is frequently described as wide and deep, clearly delineating instruments across a balanced soundstage. Its neutral signature ensures musical authenticity across various genres. While it commands a premium price and requires careful system synergy for optimal results, the overwhelming satisfaction confirms it is a worthwhile upgrade. Its robust build quality solidifies its reputation among serious vinyl enthusiasts.
Know before you buy
Because this is a low-output moving coil (MC) cartridge, you will need a phono stage or an integrated amplifier that specifically supports MC cartridges. It is not compatible with standard moving magnet (MM) phono inputs.
Yes, the pre-threaded body eliminates the need for tiny nuts when mounting the cartridge to your headshell. You can simply screw the mounting bolts directly into the cartridge body, which significantly simplifies the setup process.
The Microlinear stylus shape provides precise groove tracking and high-frequency detail, while the lightweight, rigid boron cantilever minimizes resonance. Together, they ensure accurate signal retrieval with very low distortion.
The AT-OC9XML uses a standard 1/2-inch mount, making it compatible with the vast majority of modern and vintage tonearms. As long as your tonearm can balance a 7.6-gram cartridge and your phono stage supports MC input, it should work well.
PCOCC (Pure Copper by Ohno Continuous Casting) is a high-purity copper that allows for more efficient signal transmission. This helps maintain the integrity of the audio signal from the stylus to your phono stage, resulting in clearer, more transparent sound.
The recommended tracking force for the AT-OC9XML is 2.0 grams. It is important to use a high-quality stylus force gauge to set this accurately for optimal performance and to protect your vinyl records.
