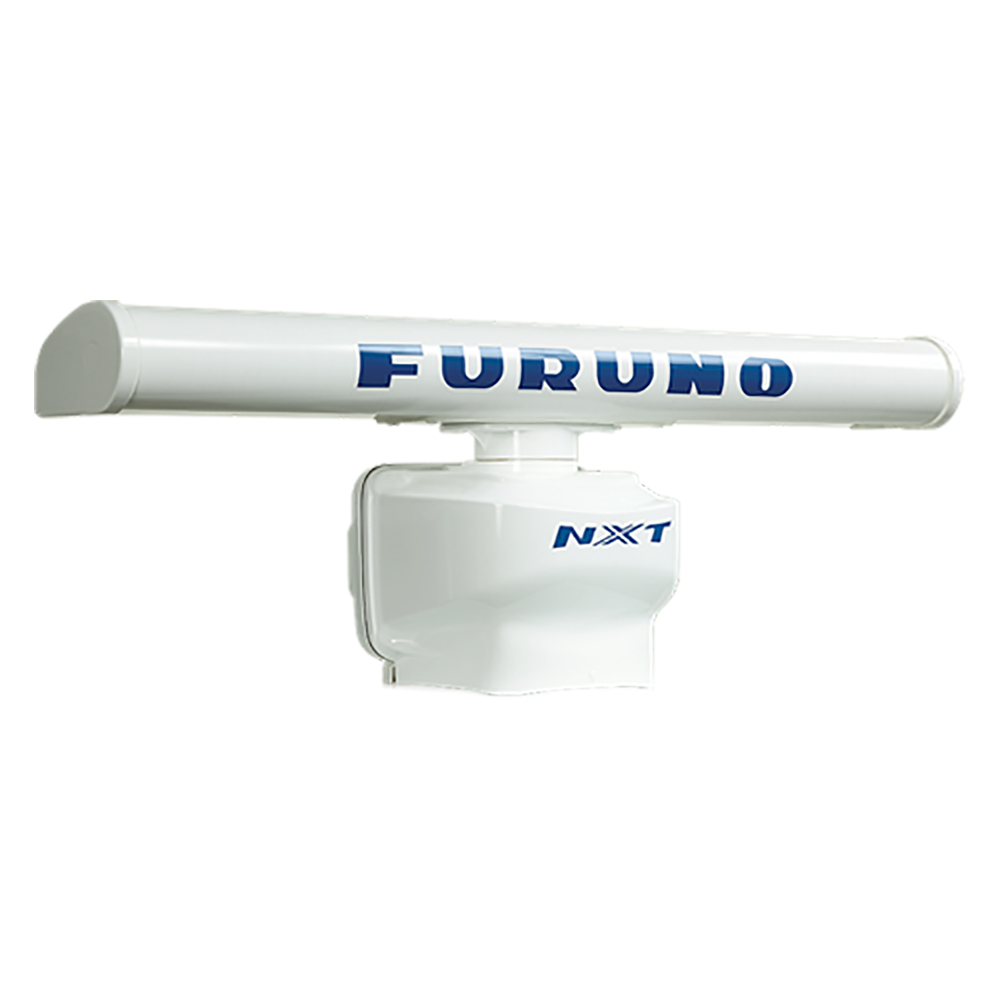

Furuno DRS6ANXT Solid State Doppler Radar w/Pedestal, 15M Cable & 4' Open Array
Best high-performance radar for serious mariners needing precise hazard detection.
The Furuno DRS6ANXT is a high-performance Solid State Doppler Radar featuring a 4-foot Open Array antenna and pedestal mount. It offers advanced target analysis and tracking with its pulse compression and Doppler sensing technology. This radar simplifies integration with TZtouch MFDs and can connect directly to 12VDC power for easier installation. It delivers a clear, high-resolution radar image, making it ideal for both recreational and commercial vessels needing reliable performance and precise target separation.
$7390.00
More DRS Options
Furuno DRS25ANXT/6 Solid-State Doppler Radar with 6' Antenna
$2999.95
Furuno DRS4DL+ UHD 19” 4kW Radome with ARPA
$1595.00
Furuno DRS12ANXT 100w Doppler Radar Pedestal
$6795.00
Furuno DRS AX and NXT Signal/Power Cable
$139.95
Furuno DRS12AX 12KW Radar Pedestal
$5295.00
Furuno DRS6AX/4 6kW UHD Digital Radar Pedestal 4' Open Array
$6490.00
Furuno DRS25AX 25kW Radar Pedestal
$6595.00
Furuno DRS4DNXT Doppler Radar
$2995.00
Furuno DRS12A 12kW UHD Digital 6' Open Array Radar
$1999.95
Furuno DRS6ANXT Solid-State Doppler Radar Open Array
$5795.00
Owner Satisfaction
4.7
/ 5
Category Rank
8
/ 176
#8 in Marine Radar
Price vs Category Average
+174%
Above average
Radar Type
Solid State Doppler Radar
/ Solid State Doppler Radar
Who it's for
- Cruisers prioritizing long-term durability and energy efficiency
- Captains navigating busy waters needing instant hazard identification
- Skippers maneuvering through tight harbors and congested channels
Who should skip it
- Budget-conscious boaters seeking entry-level radar solutions
- Owners of smaller vessels with limited mounting space
- Users without an existing Furuno MFD ecosystem
Performance breakdown
Target Detection Precision
Doppler technology makes identifying moving hazards remarkably intuitive and fast.
Bird Mode Efficacy
Optimized echo settings make finding distant fishing hotspots significantly easier.
Target Tracking Capacity
Managing 100 targets simultaneously provides immense situational awareness in crowded waters.
Image Resolution
RezBoost beam sharpening delivers crisp, high-definition clarity for precise navigation.
Installation Simplicity
Direct 12VDC power compatibility streamlines the setup process for most vessels.
System Integration
Seamlessly pairs with TZtouch displays for a unified, high-performance bridge experience.
Key Specs
Radar Type
Solid State Doppler Radar
Antenna Size
4 ft Open Array
Power Output
25 W
Maximum Range
72 nm
Beam Width
1.85 degrees
Power Usage
12-24 VDC
Tracking Capacity
Up to 100 ARPA targets
Cable Included
15M
Features
- Solid State Doppler for advanced target detection.
- Target Analyzer highlights potential hazards.
- Tracks up to 100 targets simultaneously.
- RezBoost sharpens beam for better separation.
- Dedicated Bird Mode optimizes echo settings.
- True Trail shows target direction clearly.
- Easy connection to TZtouch MFDs.
- Includes pedestal mount.
What customers say
Mariners highly praise the Furuno DRS6ANXT radar for its superior performance and safety enhancements. The solid-state technology delivers instant-on capability, eliminating warm-up delays crucial for immediate situational awareness. The integrated Target Analyzer Doppler function is a standout feature, clearly distinguishing approaching and receding targets, which significantly reduces operator fatigue in poor visibility. Users consistently report exceptional target separation and clarity from the 4-foot array. While the initial cost is high, the advanced safety features, robust build quality, and low power consumption provide strong long-term value for serious offshore use. The system's performance justifies the premium investment.
Know before you buy
Solid State Doppler technology eliminates the need for a magnetron, resulting in faster startup times and lower power consumption. It also allows the radar to instantly identify and color-code moving targets, making it much easier to distinguish between hazards and stationary objects.
Bird Mode automatically adjusts the radar's gain and sea clutter settings to specifically detect flocks of birds feeding on the surface. This helps you locate active bait schools and potential fishing hotspots from a greater distance.
The DRS6ANXT is designed for seamless integration with Furuno TZtouch series multi-function displays. If you are using an older Furuno system, you should verify compatibility with your specific MFD model before purchasing.
The 4-foot open array provides a much narrower horizontal beamwidth of 1.85 degrees. This results in significantly better target separation and resolution, allowing you to distinguish between two objects that are close together at a distance.
No, the DRS6ANXT connects directly to a 12VDC or 24VDC power source. It is a self-contained unit that simplifies installation by reducing the amount of external hardware required.
Yes, it features advanced ARPA tracking capabilities that allow you to monitor up to 100 targets simultaneously. The True Trail feature further assists by showing the historical path of these targets, helping you visualize their heading and speed.
