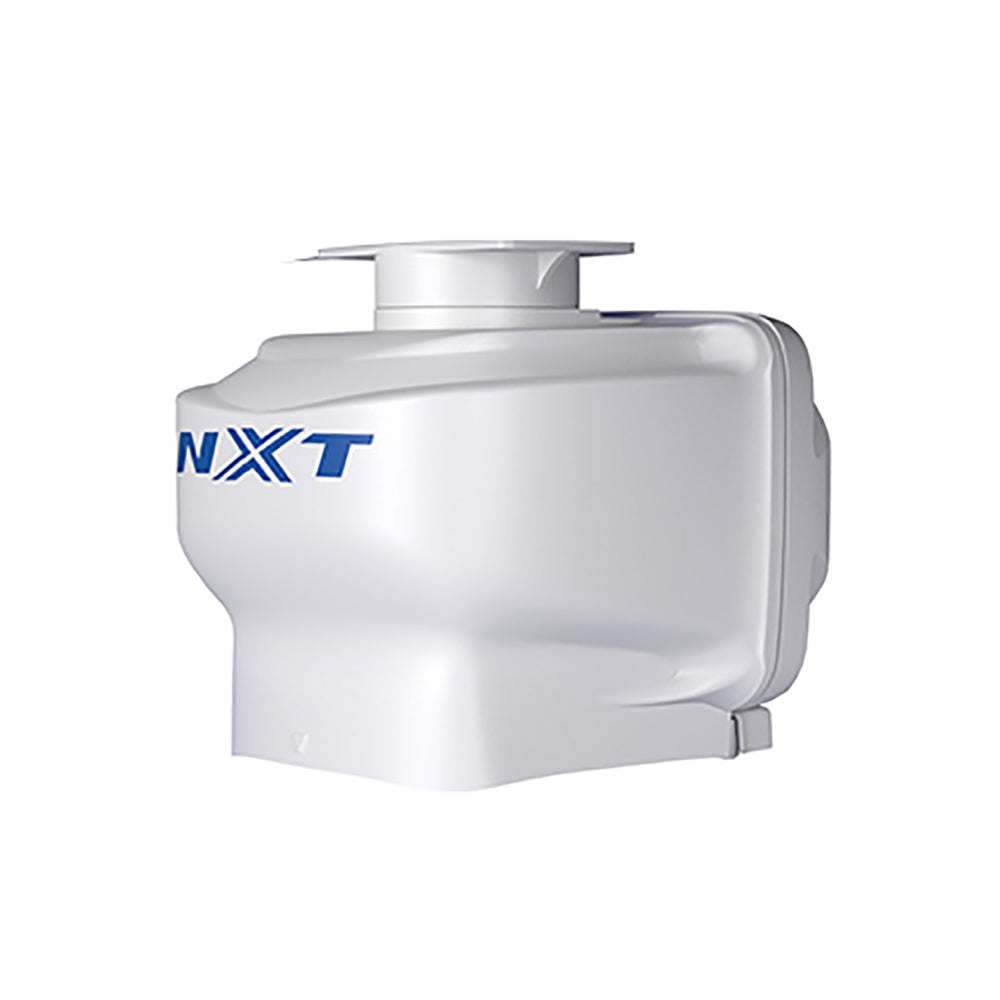

Furuno DRS12ANXT 100w Doppler Radar Pedestal
Best high-performance radar for serious mariners prioritizing advanced safety and awareness.
The Furuno DRS12ANXT is a 100 Watt Solid-State Doppler Radar pedestal, offering advanced marine radar capabilities. It integrates pulse compression and Doppler technology, featuring Furuno's Target Analyzer™ for automatic target color changes based on approach direction. RezBoost™ technology sharpens the beam, providing performance comparable to larger open array systems. Doppler technology enhances safety by displaying approaching vessel vectors and triggering alarms. This unit is sold as the pedestal only, requiring a separate antenna and cable purchase. It's designed to significantly improve situational awareness on the water.
$6795.00
More DRS Options
Furuno DRS25ANXT/6 Solid-State Doppler Radar with 6' Antenna
$2999.95
Furuno DRS4DL+ UHD 19” 4kW Radome with ARPA
$1595.00
Furuno DRS AX and NXT Signal/Power Cable
$139.95
Furuno DRS12AX 12KW Radar Pedestal
$5295.00
Furuno DRS6AX/4 6kW UHD Digital Radar Pedestal 4' Open Array
$6165.50
Furuno DRS6ANXT Solid State Doppler Radar w/Pedestal, 15M Cable & 4' Open Array
$7390.00
Furuno DRS25AX 25kW Radar Pedestal
$6595.00
Furuno DRS4DNXT Doppler Radar
$2995.00
Furuno DRS12A 12kW UHD Digital 6' Open Array Radar
$1999.95
Furuno DRS6ANXT Solid-State Doppler Radar Open Array
$5795.00
Owner Satisfaction
4.7
/ 5
Category Rank
8
/ 176
#8 in Marine Radar
Price vs Category Average
+152%
Above average
Radar Type
Solid-State Doppler Radar
/ Solid-State Doppler Radar
Who it's for
- Navigators prioritizing safety in high-traffic waterways
- Captains seeking reliable long-range performance and low maintenance
- Anglers needing precise target detection for locating fishing grounds
Who should skip it
- Budget-conscious boaters seeking entry-level radar solutions
- Skippers using non-Furuno or standalone navigation displays
- Owners of smaller vessels or those preferring DIY installations
Performance breakdown
Target Identification
Target Analyzer technology makes identifying approaching hazards nearly instantaneous and effortless.
Beam Precision
RezBoost processing delivers target separation typically reserved for much larger arrays.
Situational Awareness
Doppler vectors provide a clear, real-time picture of surrounding vessel movement.
Solid-State Reliability
Instant-on capability eliminates warm-up times and reduces long-term maintenance needs.
Range Performance
The 100-watt output ensures reliable detection out to the 96-mile limit.
System Integration
Requires separate antenna and cable purchases, adding complexity to the initial setup.
Key Specs
Radar Type
Solid-State Doppler Radar
Power Output
100 W
Maximum Range
96 nm
Frequency Band
X
Antenna Type
Open Array (Antenna Sold Separately)
Beam Width
2.3 degrees
Power Supply
24 VDC
Features
- Instant Doppler speed and course vectors
- Compact design, big radar performance
- Reliable Solid-State radar technology
- Target Analyzer™ identifies approaching vessels
- RezBoost™ for sharper beam performance
- Fast Target Tracking™ for quick target acquisition
- Enhanced situational awareness and safety
- Includes RSB137-125 Pedestal
What customers say
The Furuno DRS12ANXT is highly praised for its exceptional reliability and advanced performance. Its Doppler technology, especially the Target Analyzer, significantly enhances situational awareness, making navigation safer and less stressful. Users consistently report flawless operation, confirming its professional grade quality and dependable performance. This radar is considered a valuable investment for serious mariners seeking top tier performance and peace of mind, justifying its premium price through its consistent, high quality operation.
Know before you buy
No, this product is the pedestal only. You will need to purchase a compatible Furuno open array antenna and the necessary interconnection cable separately to complete the system.
Target Analyzer™ automatically changes the color of radar echoes based on their movement. Targets approaching your vessel are highlighted in red, allowing you to instantly distinguish potential collision threats from stationary objects.
Solid-state technology is more reliable, requires no warm-up time, and offers significantly lower power consumption. It also allows for advanced signal processing like pulse compression, which provides clearer, more detailed target detection.
The DRS12ANXT is designed for a 24 VDC power supply. Please ensure your vessel's electrical system can support this requirement or use a compatible DC-to-DC converter.
RezBoost™ digitally processes the radar signal to sharpen the beam width. This results in higher target separation and a clearer, more defined image that performs similarly to much larger radar arrays.
Yes, with a maximum range of 96 nautical miles, this unit is well-suited for offshore navigation and long-range situational awareness.
